PCB LAYOUT CONSIDERATIONS

Heat dissipation from the package can be improved by increasing

the amount of copper attached to the pins of the ADP1762.

However, as shown in Table 8, a point of diminishing returns is

eventually reached, beyond which an increase in the copper size

does not yield significant heat dissipation benefits.

Use the following recommendations when designing PCBs:



Place the input capacitor as close as possible to the VIN

and GND pins.



Place the output capacitor as close as possible to the VOUT

and GND pins.



Place the soft start capacitor (CSS) as close as possible to the

SS pin.



Place the reference capacitor (CREF) and regulator capacitor

(CREG) as close as possible to the REFCAP pin and the

VREG pin, respectively.



Connect the load as close as possible to the VOUT and

SENSE pins.

Use of 0603 or 0805 size capacitors and resistors achieves the

smallest possible footprint solution on boards where area is

limited.

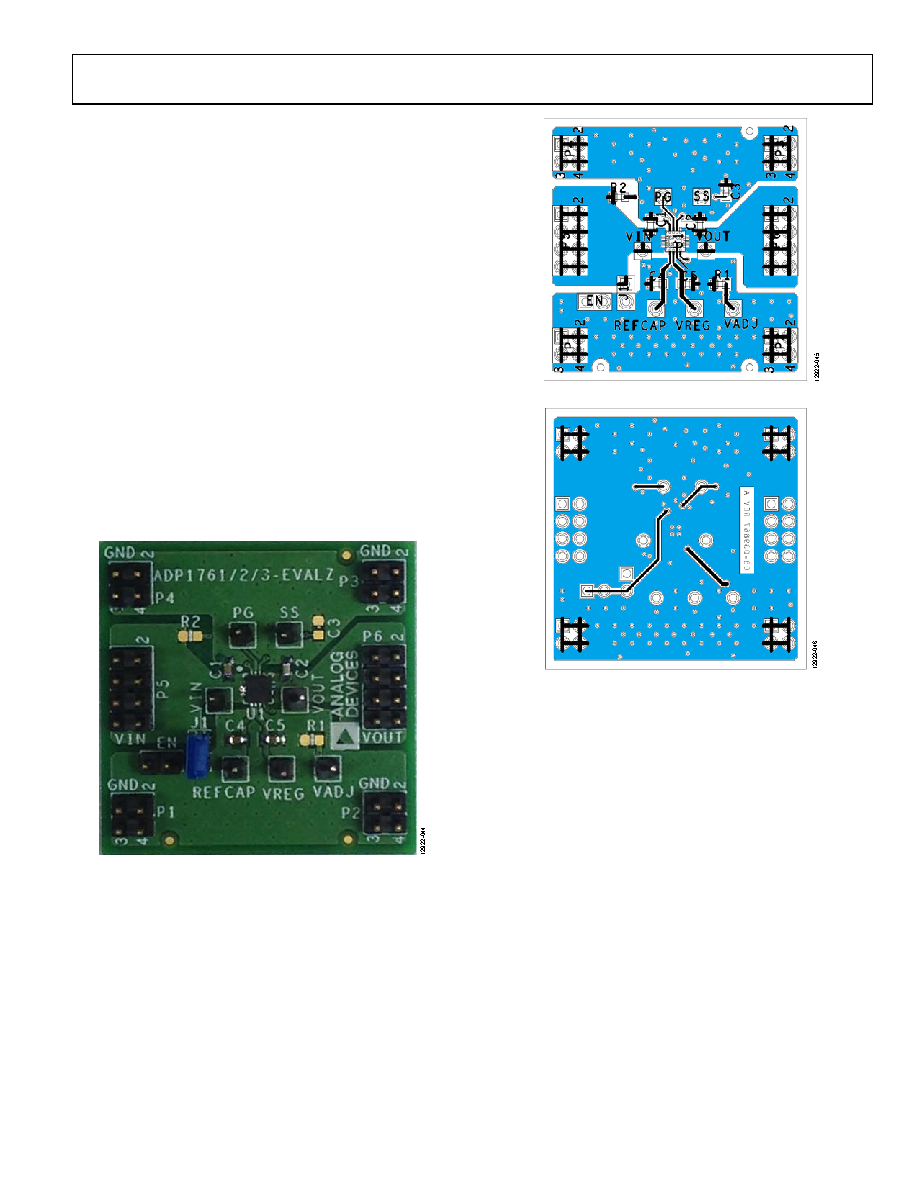

Figure 44. Evaluation Board

Figure 45. Typical Board Layout, Top Side

Figure 46. Typical Board Layout, Bottom Side
