PB Family

5.0 volt cylindrical supercapacitors

Technical Data

4393

Effective March 2015

Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written

approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly

used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

Specifications

Nominal

Capacitance (F)

Vertical

Part Number

Horizontal

Part Number

Maximum Initial ESR

(Ω) (Equivalent Series

Resistanc) Measured

@ 100Hz

Nominal leakage

current (μA) after

72 hours @ 20°C

Nominal

dimensions (mm)

Typical mass

(grams/piece)

0.1

PB-5R0V104-R

PB-5R0H104-R

4.0

3

5.5 x 10.8 x 12.5

1.1

0.47

PB-5R0V474-R

PB-5R0H474-R

1.0

7

8.5 x 16.8 x 14.0

2.4

1.0

PB-5R0V105-R

PB-5R0H105-R

0.5

12

8.5 x 16.8 x 21.5

3.5

Performance

Parameter

Capacitance change

(% of initial value)

ESR

(% of max. initial value)

Life (1000 hours @ 70°C, 5.0Vdc or 85°C, 4.2Vdc)

≤ 30%

≤ 300%

Storage - Low and High Temperature (1000 hours @ -25°C to +70°C)

≤ 30%

≤ 300%

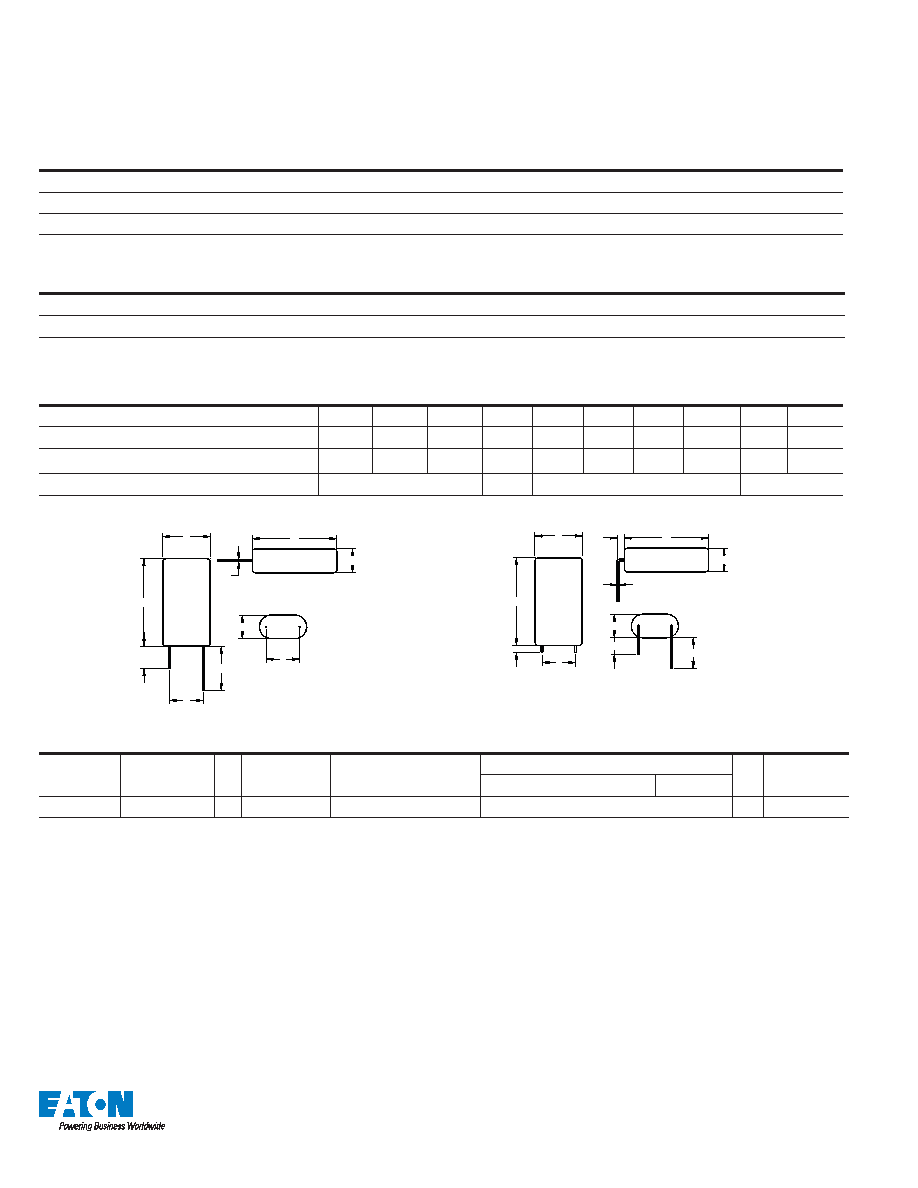

Dimensions (mm)

Vertical Part Number

Horizontal Part Number

A

B

C

d’

D

D’

E

E’

F

P

PB-5R0V104-R

PB-5R0H104-R

6.0

11.3

13.0

0.5

20

15

25

20

2.0

7.3

PB-5R0V474-R

PB-5R0H474-R

9.0

17.3

14.5

0.5

20

15

25

20

2.0

11.8

PB-5R0V105-R

PB-5R0H105-R

9.0

17.3

22.0

0.5

20

15

25

20

2.0

11.8

Tolerances

Maximum

± 0.02

Minimum

± 0.5

Note: Longer lead is positive.

B

C

P

C

A

A

D

E

d'

P

B

C

P

E'

F

C

A

A

D'

F

d'

Positive lead

Positive lead

Vertical

Horizontal

Part numbering system

P

B

—

5

R

0

o

o

o

o

—

R

Family Code

Version

Voltage (V)

R = Decimal

Configuration

Capacitance (μF)

Option

Value

Multiplier

P Family

High capacitance

5R0 = 5.0V

V = Vertical H = Horizontal

Example: 474 = 47 x 104μF or 0.47F

RoHS Compliant

Packaging information

•

Standard packaging: Bulk, 100 units per bag

•

Larger bulk packages available on request

Part marking

•

Manufacturer

•

Capacitance (F)

•

Max operating voltage (V)

•

Family code (or part number)

•

Polarity
