Multiplexing

Many systems, such as docking stations and memory banks,

have a large number of common bus signals. Common prob-

lems faced by designers of these systems include

• Large delays caused by capacitive loading of the bus

• Noise due to simultaneous switching of the address and data

bus signals

Figure 6 shows an array of memory banks in which each address

and data signal is loaded by the sum of the individual loads. If

a bus switch is used as shown in Figure 7, the output load on

the memory address and data bits is halved. The speed at which

the selected bank’s data can flow is much improved

because the capacitance loading is halved and the switches

introduce negligible propagation delay. Bus noise is also reduced.

MEMORY

ADDRESS

DATA

MEMORY

BANK B

MEMORY

BANK C

MEMORY

BANK D

MEMORY

BANK A

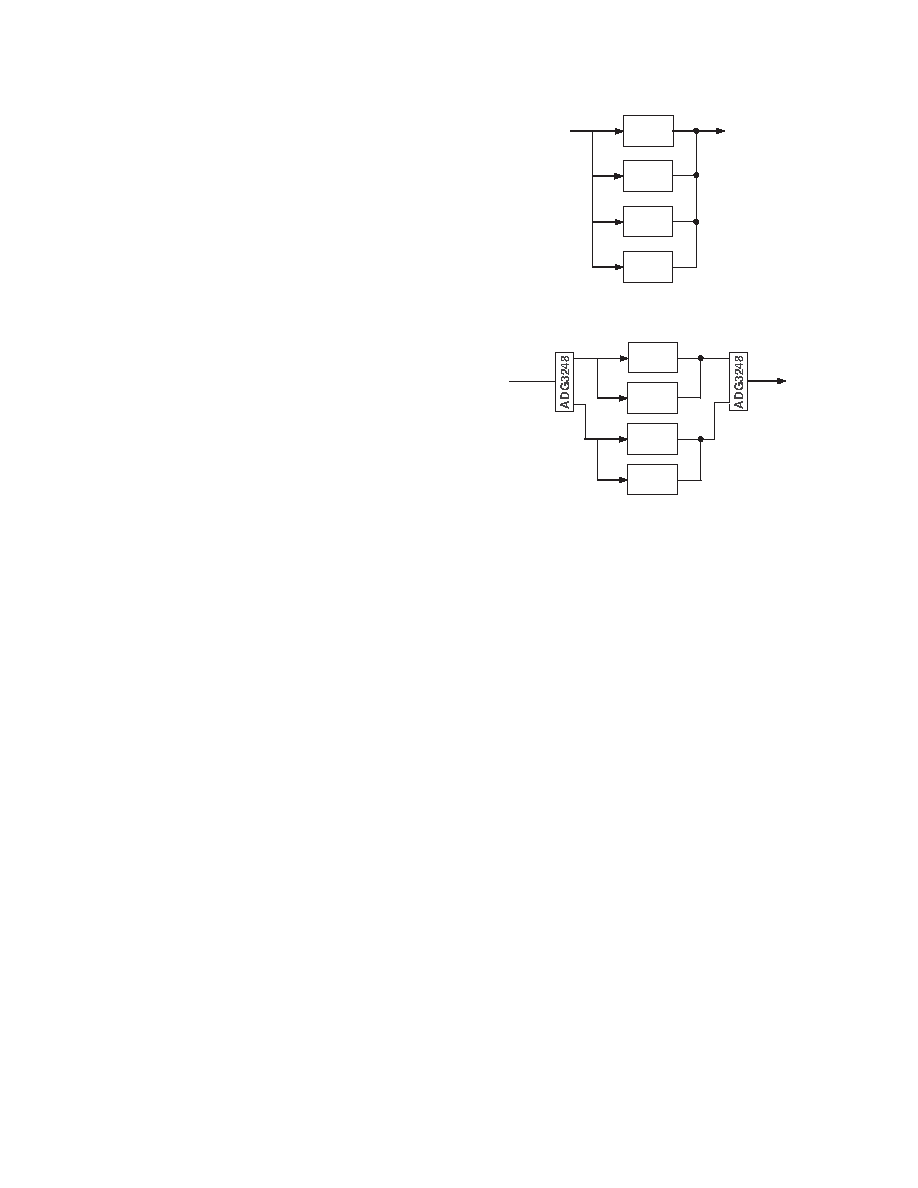

Figure 6. All Memory Banks Are Permanently

Connected to the Bus

MEMORY

ADDRESS

DATA

MEMORY

BANK B

MEMORY

BANK C

MEMORY

BANK D

MEMORY

BANK A

Figure 7. ADG3248 Used to Reduce Both Access

Time and Noise
