VLS2012E Type

ELECTRICAL CHARACTERISTICS

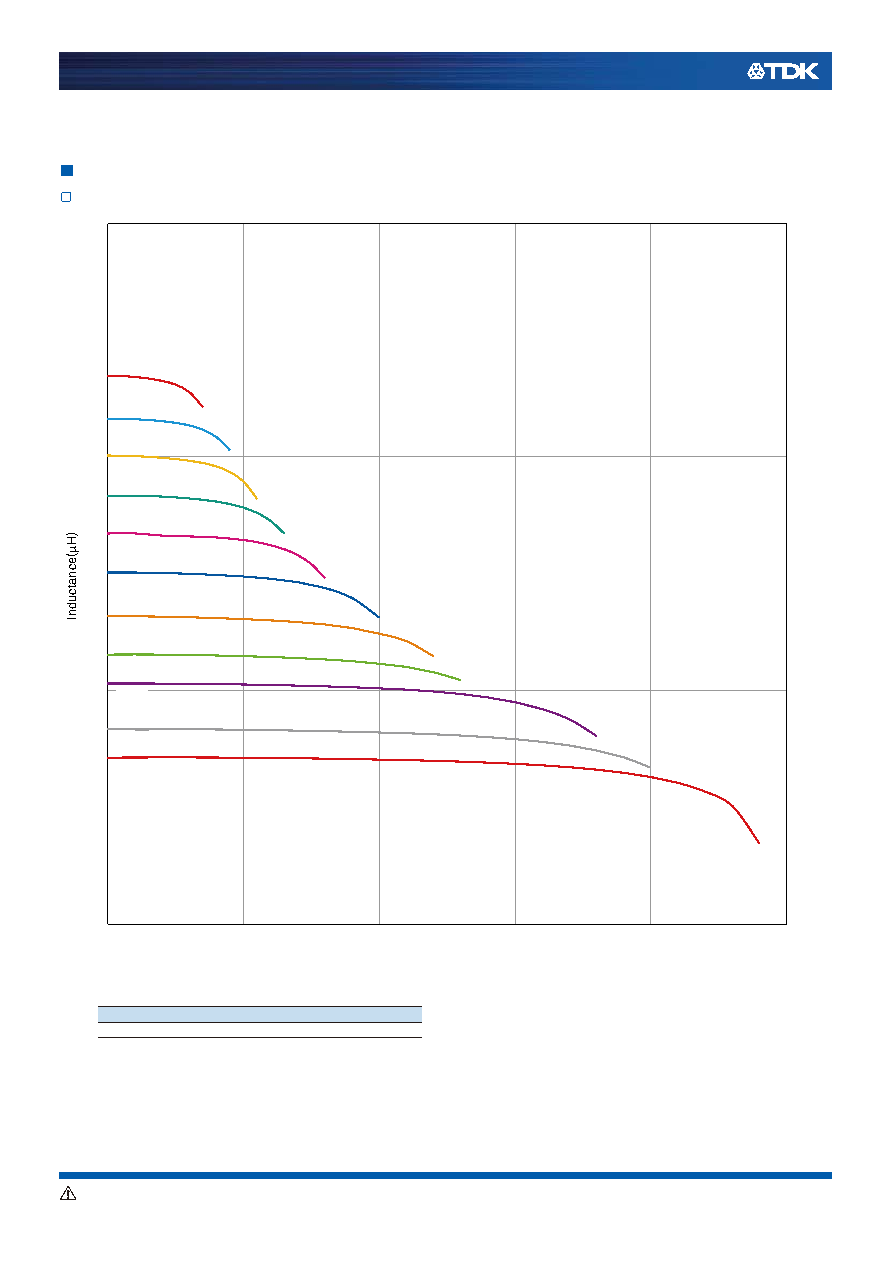

INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH

○ Measurement equipment

＊ Equivalent measurement equipment may be used.

0.1

1

10

100

0

0.5

1

1.5

2

2.5

DC current(A)

100M

6R8M

4R7M

3R3M

150M

220M

2R2M

1R5N

1R0N

R68N

R47N

Product No.

Manufacturer

4285A+42841A+42842C

Keysight Technologies
