TS431
Taiwan Semiconductor
Document Number: DS_P0000235
8
Version: H15

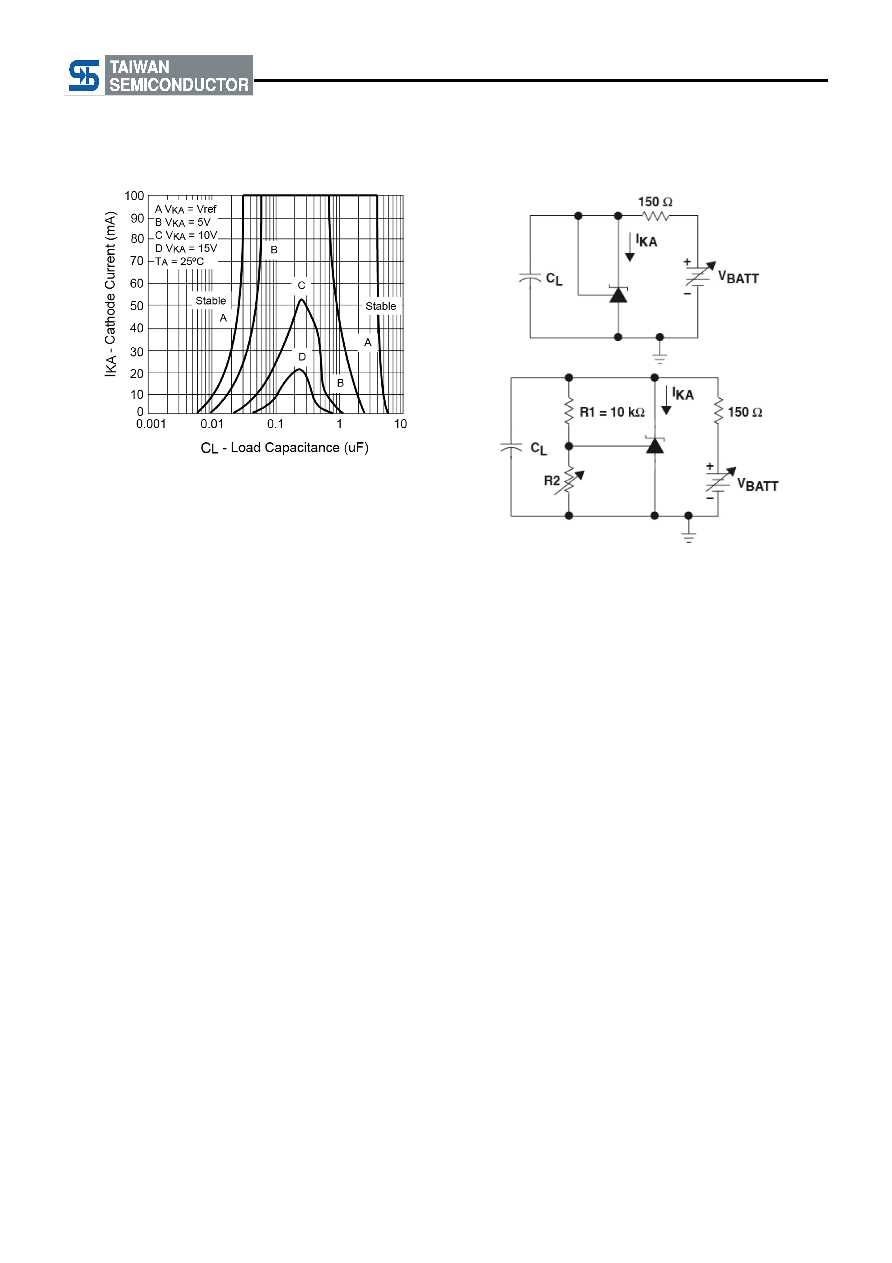

TYPICAL PERFORMANCE CHARACTERISTICS (CONTINUE)
The areas under the curves represent conditions that
may cause the device to oscillate. For curves B, C, and
D, R2 and V+ were adjusted to establish the initial VKA
and IKA conditions with CL=0. VBATT and CL then were
adjusted to determine the ranges of stability.
Test Circuit for Curve B, C and D
Figure 15. Reference Impedance vs. Frequency
