B159

Unit: mm

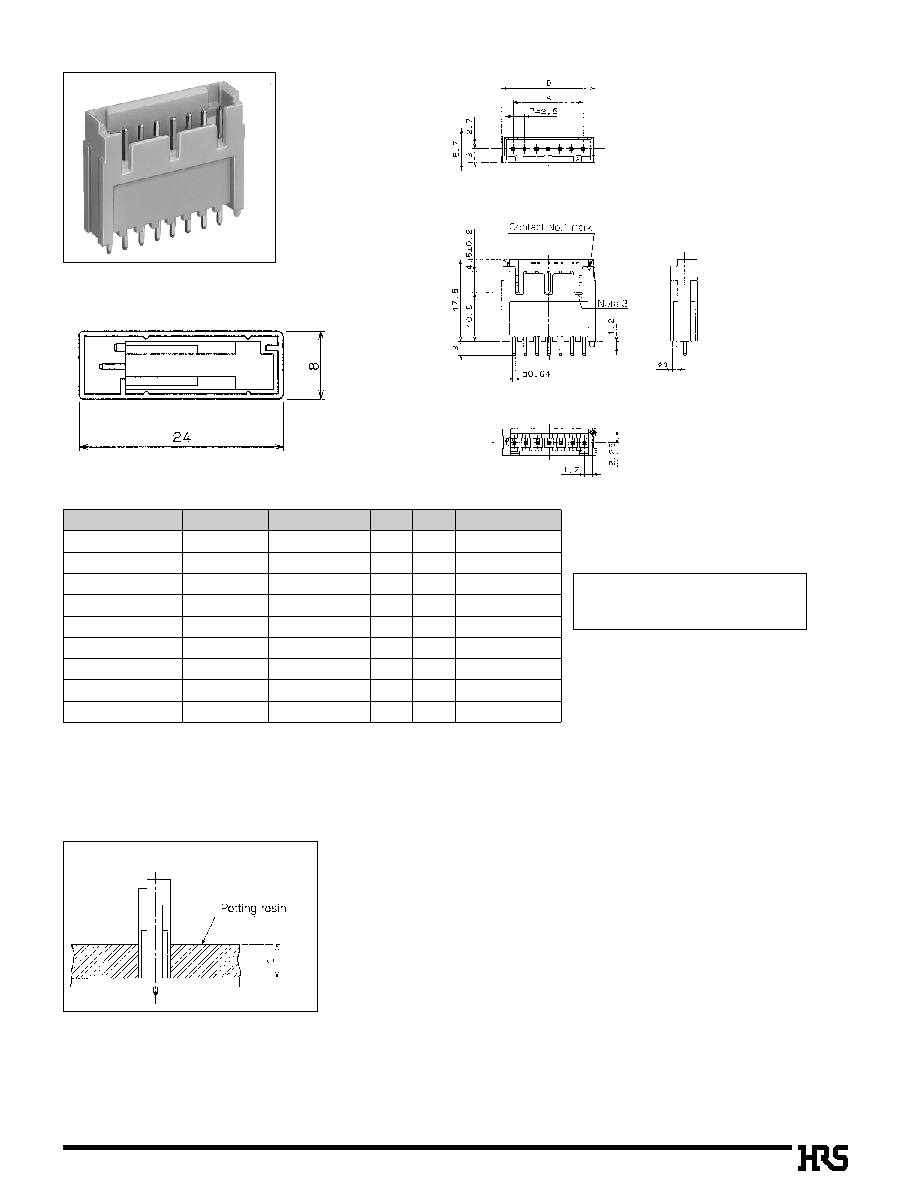

s Single Row Straight Pin Header for Potting

[Specific No.] –* *, (* *)

Blank: Tin plated

(20) : Tin plated, tube packaging

B Tube Size

B

Applicable Potting Thickness : 6mm

Potting status

Part Number

CL No.

DF1BD- 2P-2.5DSA(**)

DF1BD- 3P-2.5DSA(**)

DF1BD- 4P-2.5DSA(**)

DF1BD- 5P-2.5DSA(**)

DF1BD- 6P-2.5DSA(**)

DF1BD- 7P-2.5DSA(**)

DF1BD- 8P-2.5DSA(**)

DF1BD- 9P-2.5DSA(**)

DF1BD-10P-2.5DSA(**)

541-0800-3-**

541-0801-6-**

541-0802-9-**

541-0803-1-**

541-0804-4-**

541-0805-7-**

541-0806-0-**

541-0807-2-**

541-0808-5-**

2

3

4

5

6

7

8

9

10

2.5

5

7.5

10

12.5

15

17.5

20

22.5

7.5

10

12.5

15

17.5

20

22.5

25

27.5

64pieces

48

38

32

27

24

21

19

17

Number of Contacts

A

B

Tube Package Quantity

Note 1.A packaging quantity is delivered by the bag unit (100 pcs.). If needed, please order the product per pack.

Note 2.Please order the tube packaging products, multiplying the packaging quantity (pieces).

Note 3.The 2 and 3 contact connector contains the concave portion to prevent miss-insertion in the center at one point, which is

different from the above figure.In addition, the 4 to 7 contacts connectors have two concave portions at both ends.
