JH177128160A

VER: 3.01

- 4 -

Issue date: 2013/08/01

JEWEL HILL ELECTRONIC CO.,LTD.

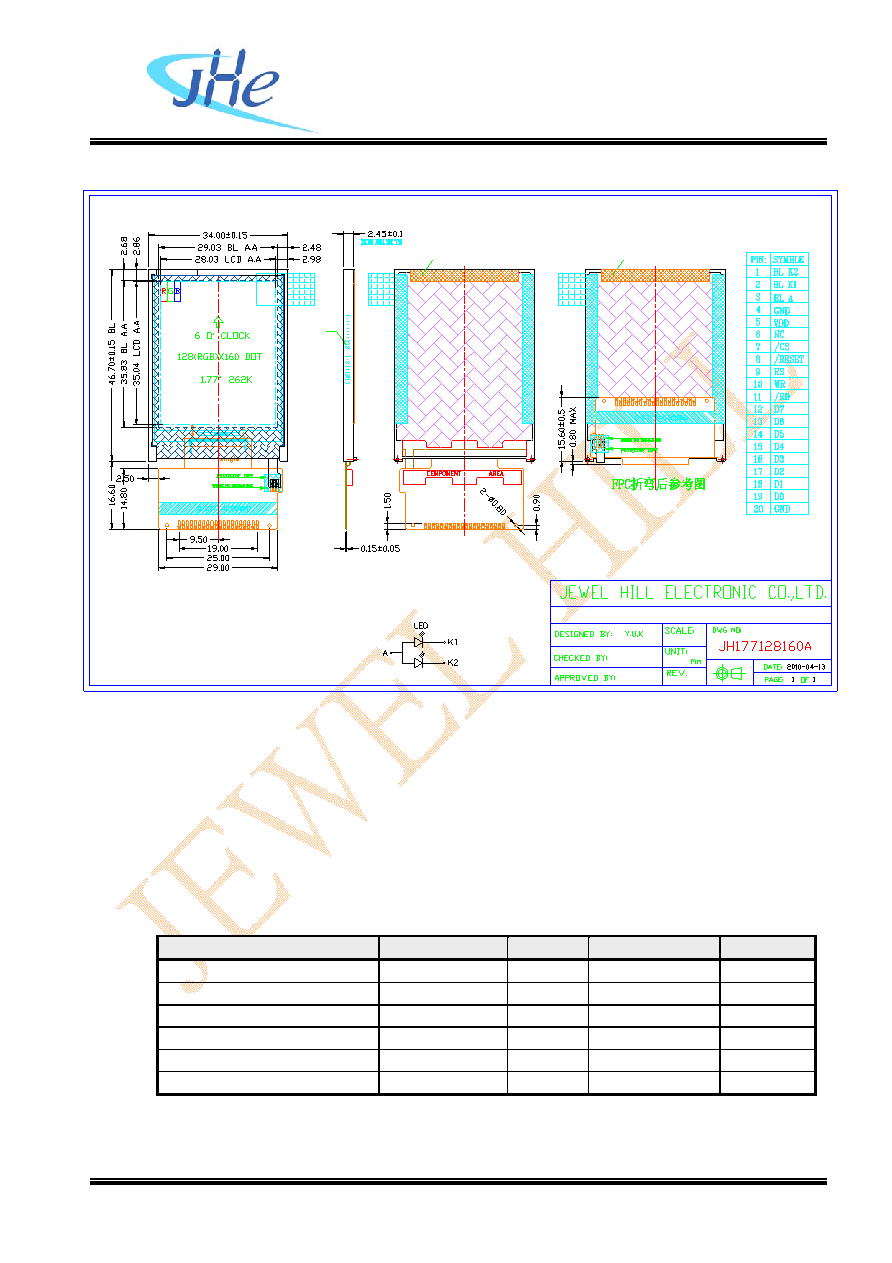

2. EXTERNAL DIMENSIONS.

K1A

DOUBLESIDE TAPE(T=0.05MM)

Specification:

2). Viewing Direction: 6 O'clock

1). BOE 1.77 TFT-LCD Type: 262/65K Color.

5). Backlight: White,2LEDs parallel Connection.

4). Driver IC:HX8353-D

Storage temp.: -30°C~+80°C

3). Operating temp.: -20°C~+70°C

AK2

A K1

易撕纸

VIEWING DIRECTION

1.LED CIRCUIT DIAGRAM:

NOTES:

喷

码

DOUBLESIDE TAPE(T=0.05MM)

3.ABSOLTE MAXIMUM RATINGS.

The absolute maximum ratings are list on Table 3.1. When used out of the

absolute maximum ratings, the LCM may be permanently damaged. Using

the LCM within the following electrical characteristics limit is strongly

recommended for normal operation. If these electrical characteristic

conditions are exceeded during normal operation, the LCM will malfunction

and cause poor reliability.

Table 3.1

Module Absolute Maximum Ratings

Item

Symbol

Unit

Value

Note

Power Supply Voltage (1)

Vdd

-0.3 to +3.7

Power Supply Voltage (2)

VGH ~ VSS

-0.3 to +16

Power Supply Voltage (3)

VSS ~ VGL

-0.3 to +16

Operating Temperature

Top

°C

-20 to +70

Storage Temperature

Tst

°C

-30 to +80

Operating Humidity

Hop

%(RH)

10~90
