Data Sheet
ADL5246
Rev. A | Page 11 of 36
–60
–50
–40
–30
–20
–10
0
10
20
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0.9GHz, 5.0V, HG
0.9GHz, 5.0V, LG
1.9GHz, 5.0V, HG
1.9GHz, 5.0V, LG
2.6GHz, 5.0V, HG
2.6GHz, 5.0V, LG
VGAIN1, VGAIN2 (V)

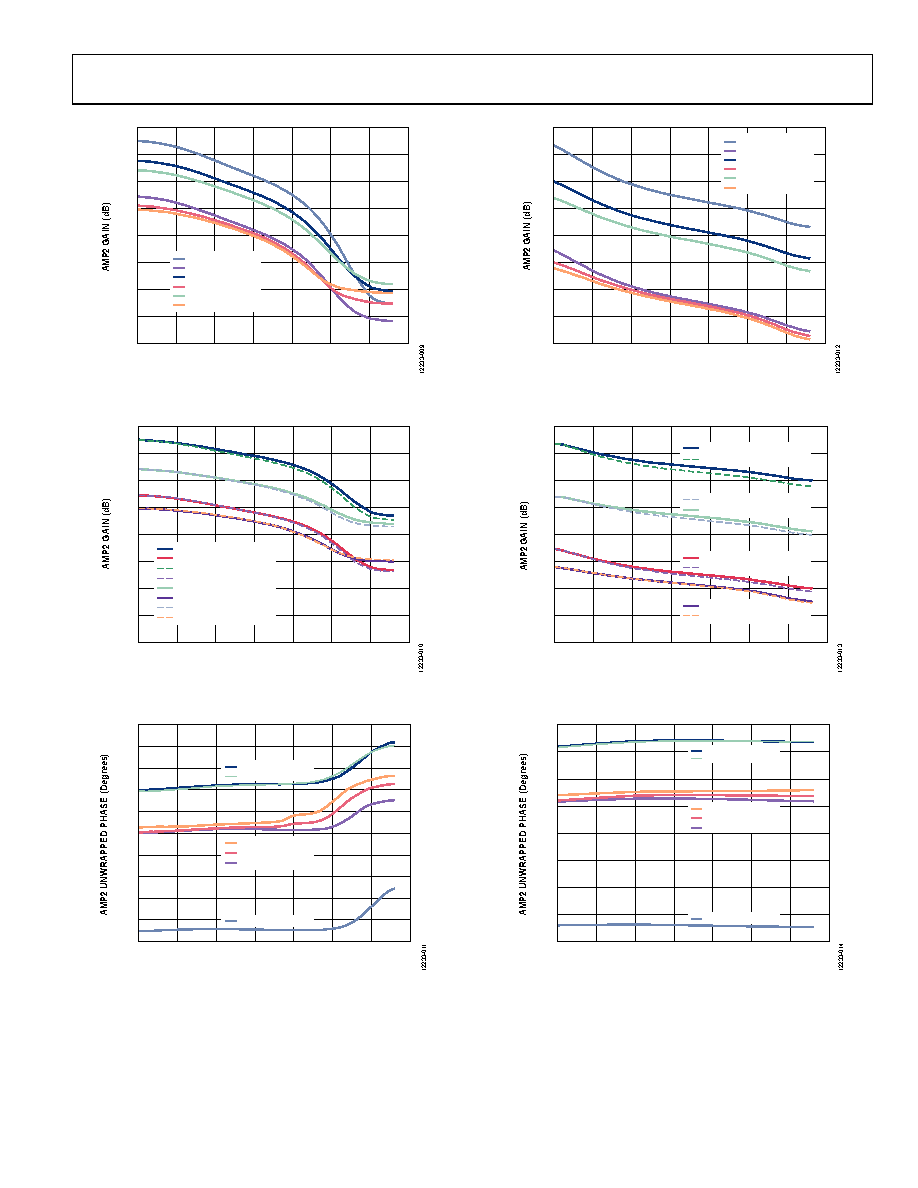

Figure 9. AMP2 Gain vs. VGAIN1, VGAIN2 at Three Frequencies, 5 V Supply,
Both Gain Controls Varied, VGAIN1 = VGAIN2
–60
–50
–40
–30
–20
–10
0
10
20
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
VGAIN1, VGAIN2 (V)
0.9GHz, 5V, HG, VGAIN1
0.9GHz, 5V, LG, VGAIN1
0.9GHz, 5V, HG, VGAIN2
0.9GHz, 5V, LG, VGAIN2
2.6GHz, 5V, HG, VGAIN1
2.6GHz, 5V, LG, VGAIN1
2.6GHz, 5V, HG, VGAIN2
2.6GHz, 5V, LG, VGAIN2
Figure 10. AMP2 Gain vs. VGAIN1,VGAIN2 at Two Frequencies, 5 V Supply,
Only One Gain Control Varied
–200
–150
–100
–50
0
50
100
150
200
250
300
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0.9GHz, 5.0V, HG
0.9GHz, 5.0V, LG
1.9GHz, 5.0V, HG
1.9GHz, 5.0V, LG
2.6GHz, 5.0V, HG
2.6GHz, 5.0V, LG
VGAIN1, VGAIN2 (V)
Figure 11. AMP2 Unwrapped Phase vs. VGAIN1, VGAIN2 at Three Frequencies,
5 V Supply, Both Gain Controls Varied, VGAIN1 = VGAIN2
–25
–20
–15
–10
–5
0
5
10
15
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0.9GHz, 3.3V, HG
0.9GHz, 3.3V, LG
1.9GHz, 3.3V, HG
1.9GHz, 3.3V, LG
2.6GHz, 3.3V, HG
2.6GHz, 3.3V, LG
VGAIN1, VGAIN2 (V)
Figure 12. AMP2 Gain vs. VGAIN1,VGAIN2 at Three Frequencies, 3.3 V Supply,
Both Gain Controls Varied, VGAIN1 = VGAIN2
–25
–20
–15
–10
–5
0
5
10
15
0
0.51.01.52.02.53.03.5
VGAIN1, VGAIN2 (V)
0.9GHz, 3.3V, HG, VGAIN1
0.9GHz, 3.3V, LG, VGAIN1
0.9GHz, 3.3V, HG, VGAIN2
0.9GHz, 3.3V, LG, VGAIN2
2.6GHz, 3.3V, HG, VGAIN1
2.6GHz, 3.3V, LG, VGAIN1
2.6GHz, 3.3V, HG, VGAIN2
2.6GHz, 3.3V, LG, VGAIN2
Figure 13. AMP2 Gain vs. VGAIN1, VGAIN2 at Two Frequencies, 3.3 V Supply,
Only One Gain Control Varied
–200
–150
–100
–50
0
50
100
150
200
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
VGAIN1, VGAIN2 (V)
0.9GHz, 3.3V, HG
0.9GHz, 3.3V, LG
1.9GHz, 3.3V, HG
1.9GHz, 3.3V, LG
2.6GHz, 3.3V, HG
2.6GHz, 3.3V, LG
Figure 14. AMP2 Unwrapped Phase vs. VGAIN1, VGAIN2 at Three Frequencies,
3.3 V Supply, Both Gain Controls Varied, VGAIN1 = VGAIN2
