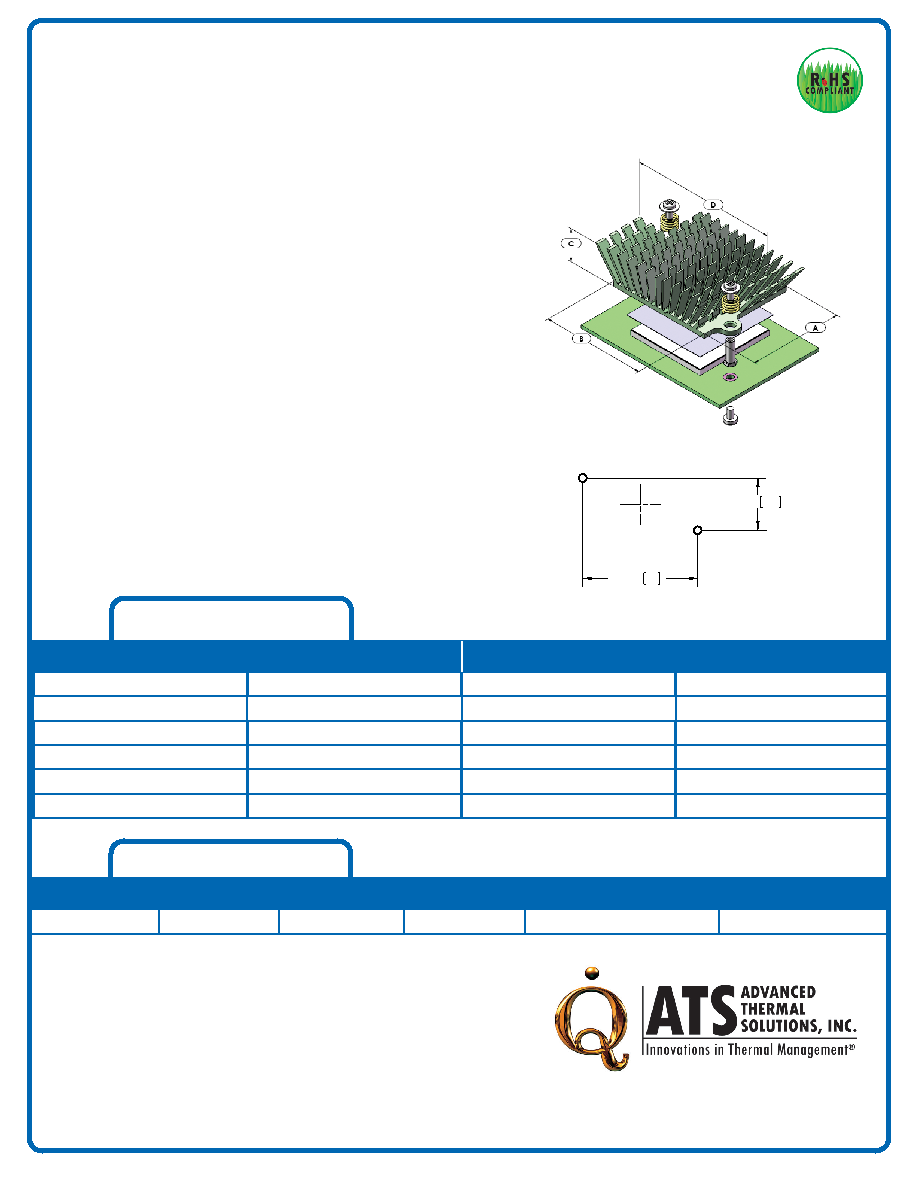

Product Details

DIMENSION A

DIMENSION B

DIMENSION C

DIMENSION D

INTERFACE MATERIAL

FINISH

Thermal Performance

For more information, to find a distributor or to place an order, visit www.Qats.com or

call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).

ATS PART # ATS-1043-C3-R0

Features & Benefits

maxiFLOWTM Cross Cut

High Performance Heat Sinks

with Hardware Attachment

REV3_052912

AIR VELOCITy

THERMAL RESISTANCE (

°C/w UNDUCTED)

FT/MIN

M/S

AIR FLOW STRAIGHT

AIR FLOW SIDEWAYS

200

1.0

300

1.5

2.8

400

2.0

2.1

500

2.5

1.6

600

3.0

1.3

1.9

1.6

1.3

1.1

1.0

3.6

» For larger heat sinks and higher pre-loads, push pins with compression

springs are an effective mounting choice. The push pin has a flexible barb

at the end that is designed to engage with a pre-drilled hole in a PWB.

The compression spring adds the necessary force to hold the assembly

together. Provides better thermal performance than comparable size

straight fin and pin fin heat sinks.

» Features proven high performance maxiFLOW™ heat sink spread fin

array to maximize cooling surfaces.

» Ideal for tight spaced components where wider heat sinks can’t be used.

» Provided with pre-assembled thermal interface material centered on base.

» PEM Stand-off with compression and screws.

» Reccomended through hole size in PCB is 3.00 mm.

NotEs:

1)

Dimension C = heat sink height from bottom of the base to the top of the fin field.

2)

Thermal performance data are provided for reference only. Actual performance may vary

by application.

3)

ATS reserves the right to update or change its products without notice to improve the

design or performance.

4)

Contact ATS to learn about custom options available.

*Image above is for illustration purposes only.

20.02 .788

50.8

2.0

HOLE PATTERN B

41 mm

45 mm

25 mm

79 mm

CHOMERICS T766

GREEN ANODIZED

DIMENSION A

DIMENSION B

DIMENSION C

DIMENSION D

INTERFACE MATERIAL

FINISH
