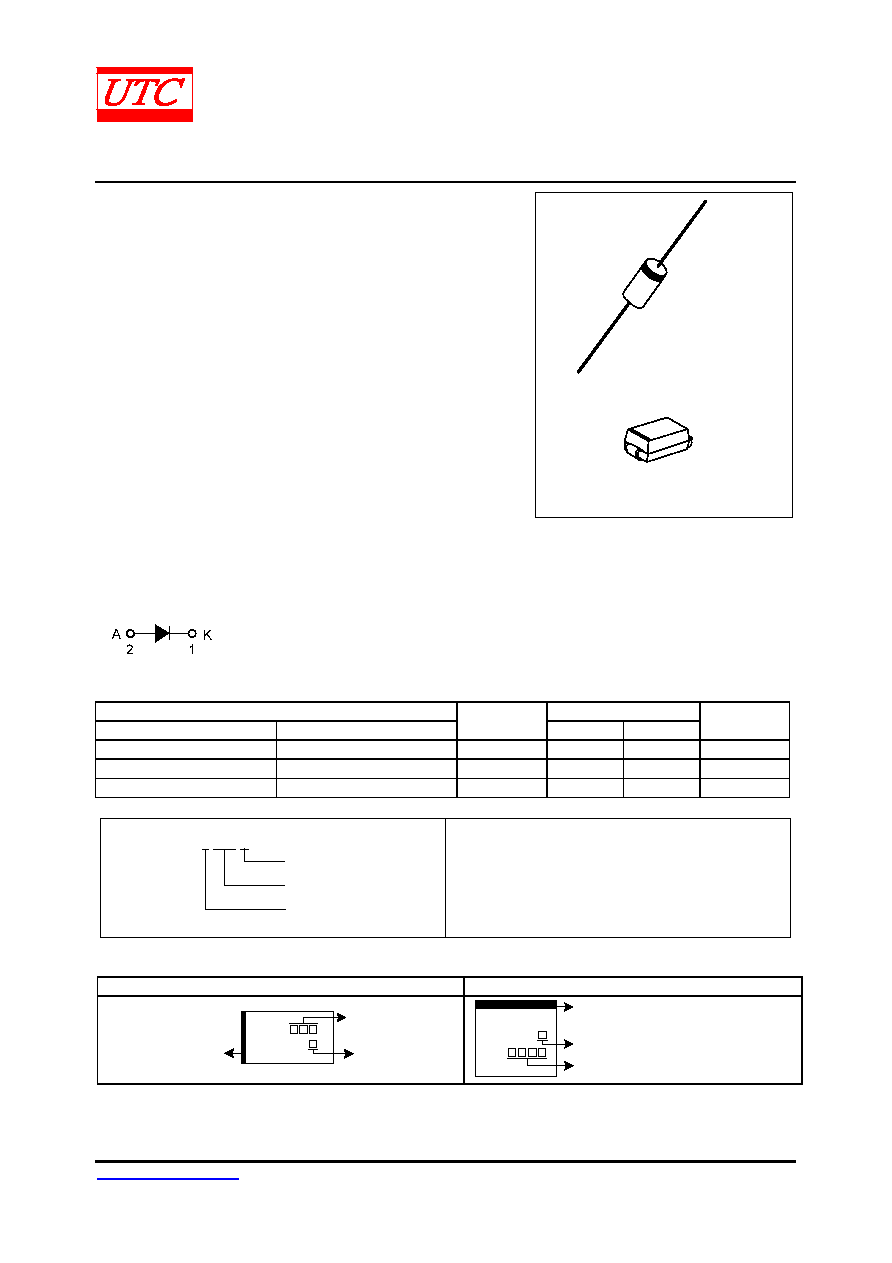

UNISONIC TECHNOLOGIES CO., LTD

MBR160

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2014 Unisonic Technologies Co., Ltd

QW-R601-260.c

1.0A SCHOTTKY BARRIER

RECTIFIER



DESCRIPTION

The UTC MBR160 is a 1.0A schottky barrier rectifier, it uses

UTC’s advanced technology to provide the customers with high

surge capability, high efficiency, high current capability, low power

loss and low forward voltage drop, etc.

The UTC MBR160 is suitable for free wheeling and polarity

protection, etc.

* Low Reverse Current

* Low Stored Charge, Majority Carrier Conduction

* Low Power Loss/High Efficiency

* Highly Stable Oxide Passivated Junction



SYMBOL

DO-41

SMA

(JEDEC DO-214AC)

+

-



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

MBR160L-SMA-R

MBR160G-SMA-R

SMA

K

A

Tape Reel

MBR160L-Z41-B

MBR160G-Z41-B

DO-41

K

A

Tape Box

MBR160L-Z41-R

MBR160G-Z41-R

DO-41

K

A

Tape Reel

Note: Pin Assignment: A: Anode

K: Cathode

(1) B: Tape Box, R: Tape Reel

(2) Z41: DO-41, SMA: SMA

(3) L: Lead Free, G: Halogen Free

MBR160L-Z41-B

(1)Packing Type

(2)Package Type

(3)Lead Free



MARKING

SMA

DO-41

Date Code

Cathode Band for

uni-directional Only

UTC

MBR160

L: Lead Free

G: Halogen Free

MBR160

Date Code

L: Lead Free

G: Halogen Free

Cathode Band for uni-directional Only
