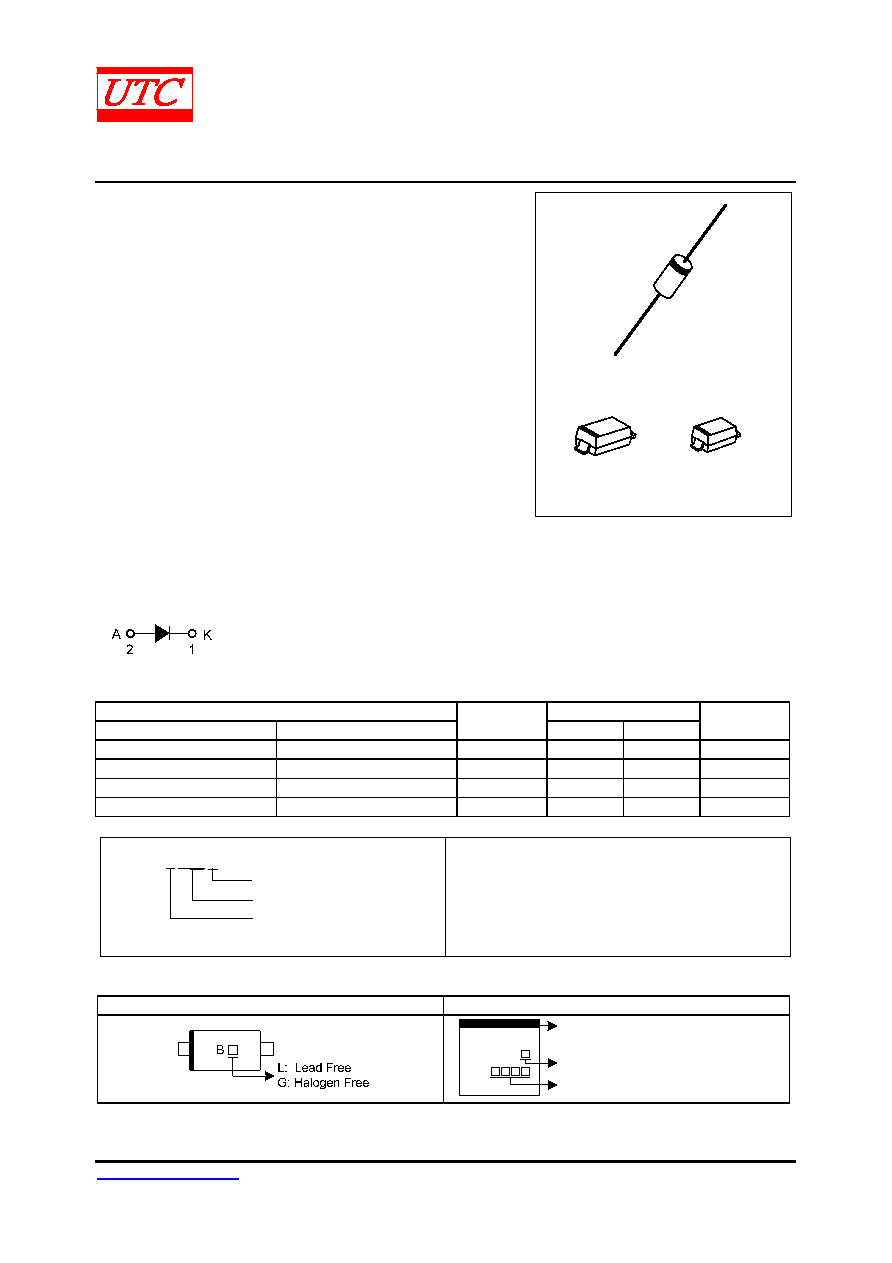

UNISONIC TECHNOLOGIES CO., LTD

MBR145

Preliminary

DIODE

www.unisonic.com.tw

1 of 3

Copyright © 2014 Unisonic Technologies Co., Ltd

QW-R601-200.d

1.0A SCHOTTKY BARRIER

RECTIFIER

DESCRIPTION

The UTC MBR145 is a 1.0A schottky barrier rectifier, it uses

UTC’s advanced technology to provide the customers with high

surge capability, high efficiency, high current capability, low power

loss and low forward voltage drop, etc.

The UTC MBR145 is suitable for free wheeling and polarity

protection, etc.

FEATURES

* Low Reverse Current

* Low Stored Charge, Majority Carrier Conduction

* Low Power Loss/High Efficiency

* Highly Stable Oxide Passivated Junction

SYMBOL

DO-41

SOD-123

SOD-323

+

-

+

-

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

MBR145L-CA2-R

MBR145G-CA2-R

SOD-123

K

A

Tape Reel

MBR145L-CB2-R

MBR145G-CB2-R

SOD-323

K

A

Tape Reel

MBR145L-Z41-R

MBR145G-Z41-R

DO-41

K

A

Tape Reel

MBR145L-Z41-B

MBR145G-Z41-B

DO-41

K

A

Tape Box

Note: Pin Assignment: A: Anode

K: Cathode

(1) R: Tape Reel, B: Tape Box

(2) CA2: SOD-123, CB2: SOD-323, Z41: DO-41

(3) L: Lead Free, G: Halogen Free

SB145L-CA2-R

(1)Packing Type

(2)Package Type

(3)Lead Free

MARKING

SOD-123 / SOD-323

DO-41

MBR145

Date Code

L: Lead Free

G: Halogen Free

Cathode Band for uni-directional Only
