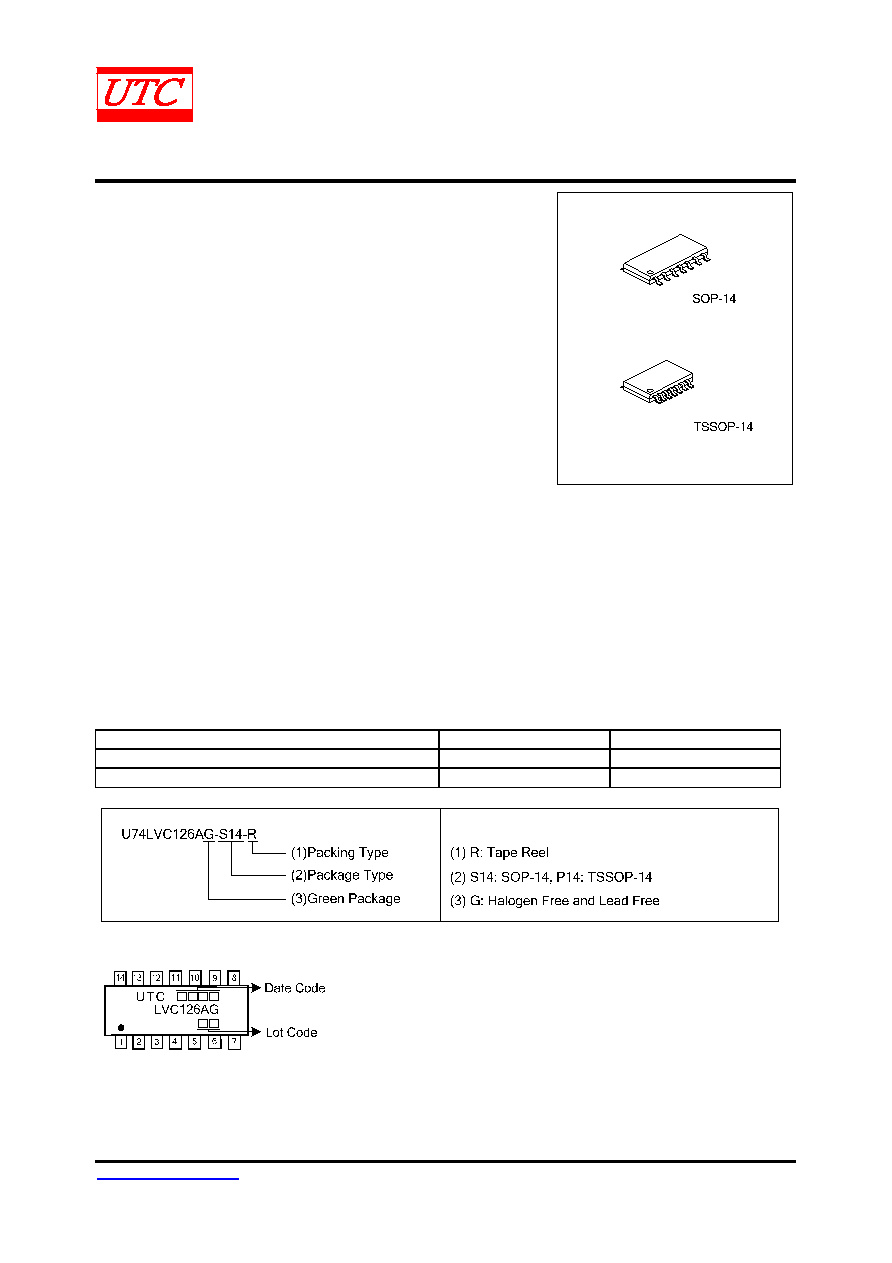

UNISONIC TECHNOLOGIES CO., LTD

U74LVC126A

CMOS IC

www.unisonic.com.tw

1 of 6

QW-R502-705.B

QUADRUPLE BUS BUFFER

GATES WITH 3-STATE

OUTPUTS



DESCRIPTION

The U74LVC126A are quadruple bus buffer gates featuring

independent line drivers with 3-state outputs. When OE is low, the

nY outputs are in a high-impedance state. When OE is high, the

device passes non-inverted data from the nA input to its nY output.

To ensure the high-impedance state during power up or power

down, OE should be tied to GND through a pull-down resistor; the

minimum value of the resistor is determined by the current-sinking

capability of the driver.

Inputs can be driven from either 3.3V to 5V devices. This feature

allows the use of these devices as translators in a mixed 3.3V/5V

system environment.



FEATURES

* 1.65V to 3.6V VCC Operation

* Max tPD of 4.7ns from A to Y at VCC = 3.3V, CL = 50pF, RL = 500Ω

* ±24mA output driver at 3V



ORDERING INFORMATION

Ordering Number

Package

Packing

U74LVC126AG-S14-R

SOP-14

Tape Reel

U74LVC126AG-P14-R

TSSOP-14

Tape Reel



MARKING
