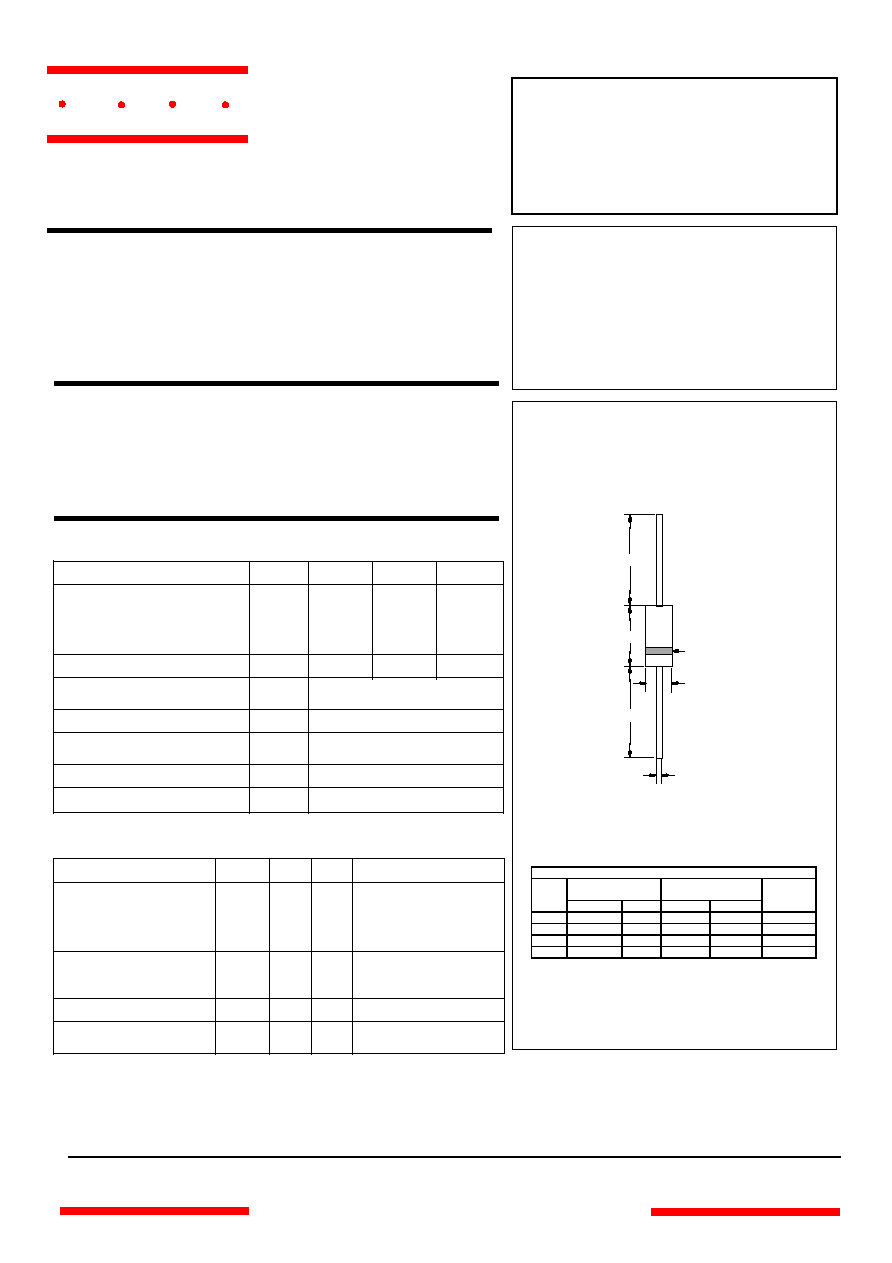

1 / 3 page  Features l Low Reverse Recovery Time l Low Reverse Capacitance l Low Forward Voltage Drop l Guard Ring Construction for Transient Protection Mechanical Data l Case: DO-35, Glass l Terminals: Solderable per MIL-STD-202, Method 208 l Polarity: Indicated by Cathode Band Maximum Ratings @ 25oC Unless Otherwise Specified Characteristic Symbol SD103A SD103B SD103C Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 40V 30V 20V DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 28V 21V 14V Maximum sigle cycle surge 60Hz sine wave IFSM Power Dissipation(Note 1) Pd Thermal Resistance, Junction to Ambient R Junction Tmperature Tj Operation/Storage Temp. Range TSTG -55 to +150 o C 300K/W 400mW 15A 125 o C Electrical Characteristics @ 25oC Unless Otherwise Specified Charateristic Symbol Type Max Test Condition SD103A 5.0uA VR=30V Leakage SD103B IR ----- 5.0uA VR=20V Current SD103C 5.0uA VR=10V Maximum Forward VFM ----- 0.37V IF=20mA Voltage Drop 0.60V IF=200mA Junction Capacitance Cj 50pF ----- VR=0V, f=1.0MHz Reverse Recovery Time trr 10ns ----- IF=IR=50mA, recover to 200mA/0.1IR Note: 1. Valid provided that electrodes are kept at ambient temperature SD103A THRU SD103C Small Signal Schottky Diodes DO-35 DIMENSIONS INCHES MM DIM MIN MAX MIN MAX NOTE A --- .166 --- 4.2 B --- .079 --- 2.00 C --- .020 --- .52 D 1.000 --- 25.40 --- A B C D D Cathode Mark www.mccsemi.com omponents 21201 Itasca Street Chatsworth !"# $% !"# MCC |
