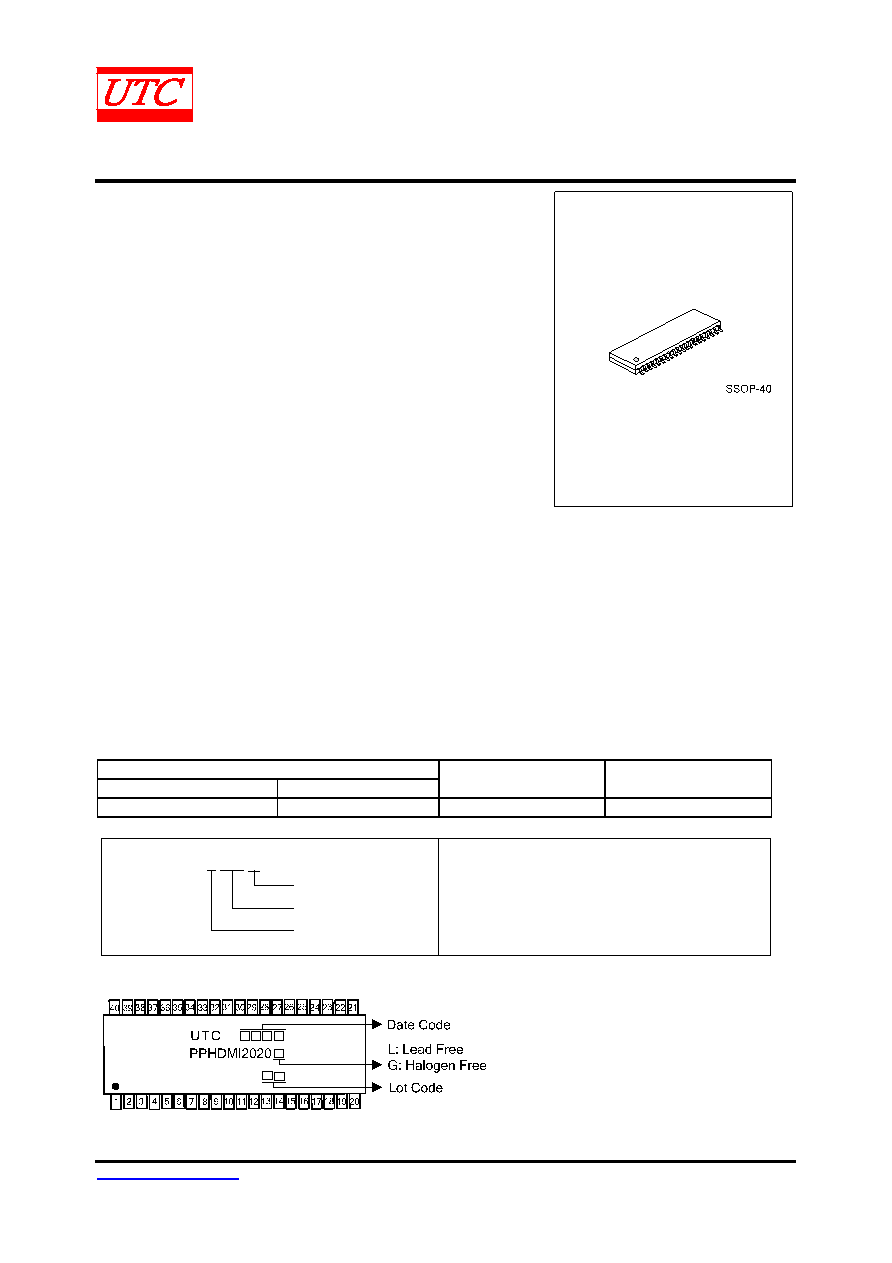

UNISONIC TECHNOLOGIES CO., LTD

PPHDMI2020

Preliminary

TVS

www.unisonic.com.tw

1 of 6

Copyright © 2015 Unisonic Technologies Co., Ltd

QW-R223-025.c

HDMI TRANSMITTER PORT

PROTECTION AND INTERFACE

DEVICE



DESCRIPTION

The UTC PPHDMI2020 HDMI Transmitter Port Protection and

Interface device is specifically designed for next generation HDMI

source interface protection.

An integrated package provides all ESD, level shift, overcurrent

output protection and backdrive protection for an HDMI port in a single

SSOP-40 package.

The UTC PPHDMI2020 also incorporates a silicon overcurrent

protection device for +5V supply voltage output to the connector.



FEATURES

* 0.05pF matching capacitance between the TMDS intra-pair

* HDMI 1.3 compliant

* Level shifting/isolation circuitry

* Provides ESD protection to IEC61000-4-2 Level 4

- 8kV contact discharge

- 15kV air discharge

* Backdrive protection

* Overcurrent output protection

* Simplified layout for HDMI connectors



ORDERING INFORMATION

Order Number

Lead Free

Halogen Free

Package

Packing

PPHDMI2020L-R40-R

PPHDMI2020G-R40-R

SSOP-40

Tape Reel

PPHDMI2020L-R40-R

(1)Packing Type

(2)Package Type

(3)Green Package

(1) R: Tape Reel

(2) R40: SSOP-40

(3) L: Lead Free, G: Halogen Free and Lead Free

■

MARKING
