CONN011-R58 bảng dữ liệu(PDF) 1 Page - List of Unclassifed Manufacturers

tên linh kiện CONN011-R58
Giải thích chi tiết về linh kiện  N FEMALE CABLE END CRIMP N FEMALE CABLE END CRIMP
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
nhà sản xuất  ETC2 [List of Unclassifed Manufacturers]
Trang chủ
Logo ETC2 - List of Unclassifed Manufacturers

CONN011-R58 bảng dữ liệu(HTML) 1 Page - List of Unclassifed Manufacturers

  CONN011-R58 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3

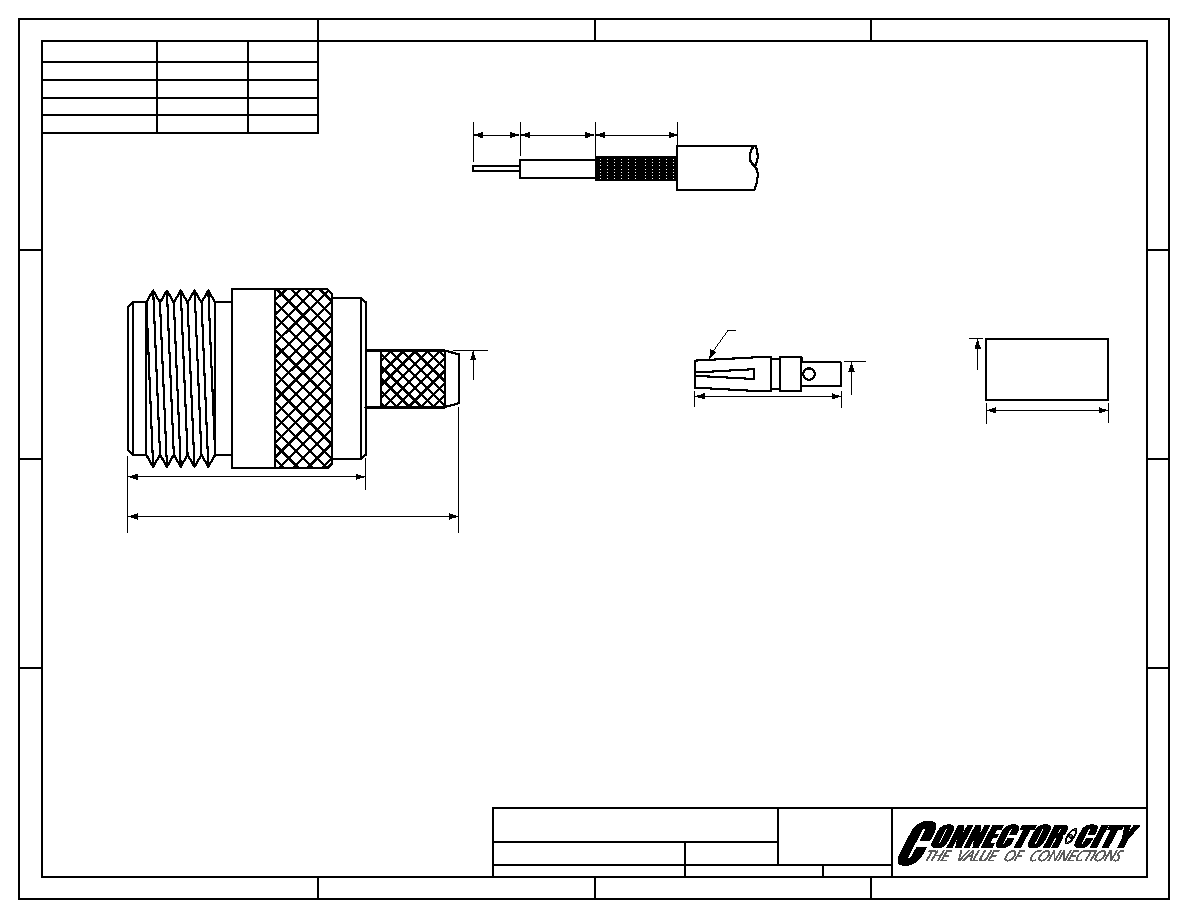

N FEMALE CABLE END CRIMP
FOR RG58 CABLE
Description
Material
Finish
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:
CONN011-R58
1.0
INCHES (mm)
2/20/2008
CONN011-R58 ASSEMBLY INSTRUCTIONS
Body
Nickel
Brass
Socket
Gold
Brass
Crimp Ring
Nickel
Brass
Insulation
N/A
Teflon
0.276
(7.00)
0.189
(4.80)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.118
(3.00)
RG-58 Cable
0.500
(12.70)
Ø0.252
(6.40)
CRIMP RING
1.
Solder the socket to the center conductor.
2.
Insert the socket, center conductor, and insulator into the body.
3.
Wrap the braid around the tail of the body and crimp the ring with a
hex crimp tool labeled for use with RG-58 cable.
0.500
(12.70)
Ø0.083
(2.10)
PIN CHUCK
0.3x5x4 GROOVE
SOCKET
5/8-24UNEF-2A THREADS
SIDE VIEW
0.772
(19.60)
∅0.177
(4.50)
1.087
(27.60)
