ISO7340C, ISO7340FC, ISO7341C, ISO7341FC, ISO7342C, ISO7342FC

www.ti.com

SLLSEI6E – SEPTEMBER 2014 – REVISED APRIL 2015

Typical Application (continued)

9.2.1.1 Design Requirements

9.2.1.1.1

Typical Supply Current Equations

9.2.1.1.1.1

ISO7340

At VCC1 = VCC2 = 5 V

ICC1 = 0.54366 + (0.0873 x f)

(1)

ICC2 = 2.74567 + (0.08433 x f) + (0.01 x f x CL)

(2)

At VCC1 = VCC2 = 3.3 V

ICC1 = 0.3437 + (0.04922 x f)

(3)

ICC2 = 2.1068 + (0.04374 x f) + (0.007045 x f x CL)

(4)

9.2.1.1.1.2

ISO7341

At VCC1 = VCC2 = 5 V

ICC1 = 1.7403 + (0.1006 x f) + (0.001711 x f x CL)

(5)

ICC2 = 2.502 + (0.09629 x f) + (0.00687 x f x CL)

(6)

At VCC1 = VCC2 = 3.3 V

ICC1 = 1.2915 + (0.046 x f) + (0.00185 x f x CL)

(7)

ICC2 = 1.8833 + (0.0566 x f) + (0.004514 x f x CL)

(8)

9.2.1.1.1.3

ISO7342

At VCC1 = VCC2 = 5 V

ICC1, ICC2 = 2.1254 + (0.08694 x f) + (0.004868 x f x CL)

(9)

At VCC1 = VCC2 = 3.3 V

ICC1, ICC2 = 1.5912 + (0.0410 x f) + (0.003785 x f x CL)

(10)

ICC1 and ICC2 are typical supply currents measured in mA, f is data rate measured in Mbps, CL is the capacitive

load measured in pF.

9.2.1.2 Detailed Design Procedure

Unlike optocouplers, which need external components to improve performance, provide bias, or limit current,

ISO734x only needs two external bypass capacitors to operate.

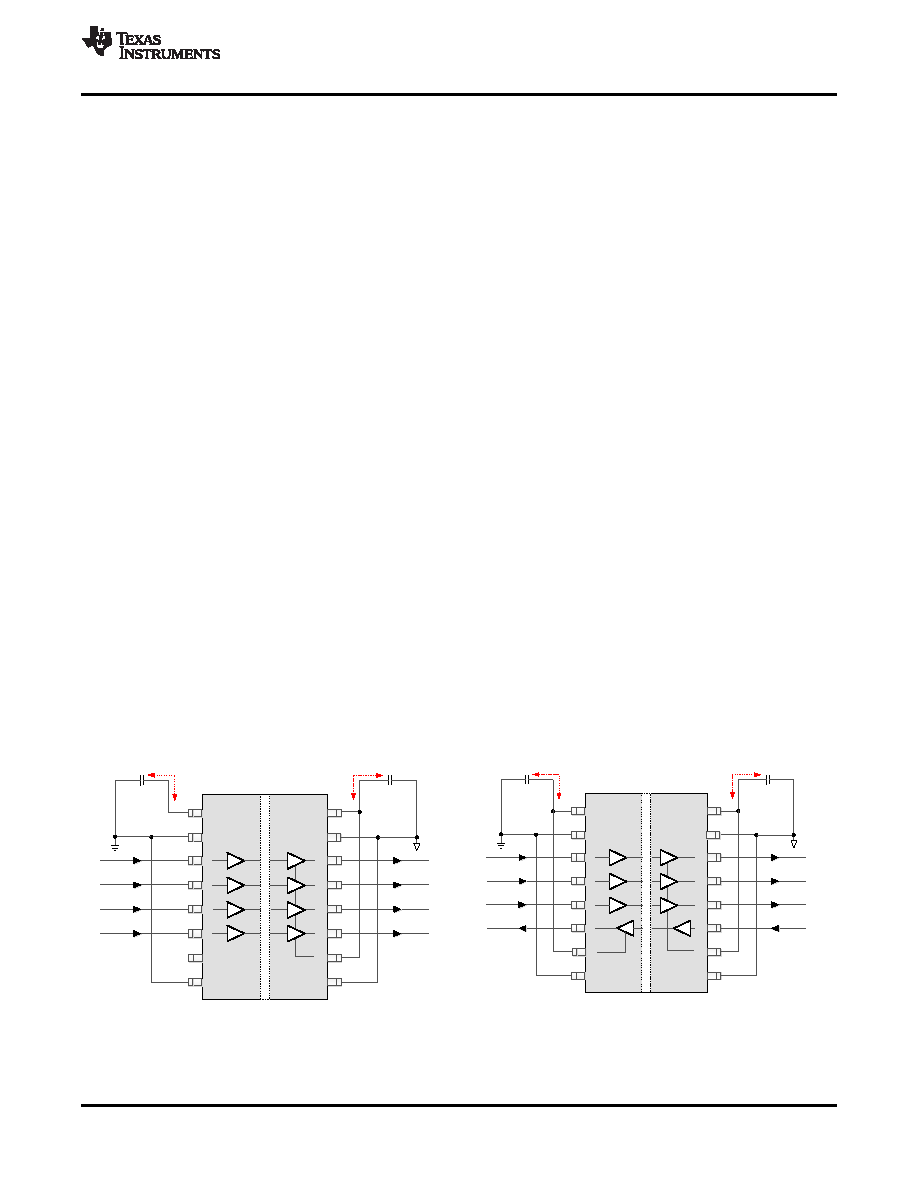

Figure 21. Typical ISO7340 Circuit Hook-up

Figure 22. Typical ISO7341 Circuit Hook-up

Submit Documentation Feedback

Product Folder Links: ISO7340C ISO7340FC ISO7341C ISO7341FC ISO7342C ISO7342FC
