BCP53; BCX53; BC53PA

80 V, 1 A PNP medium power transistors

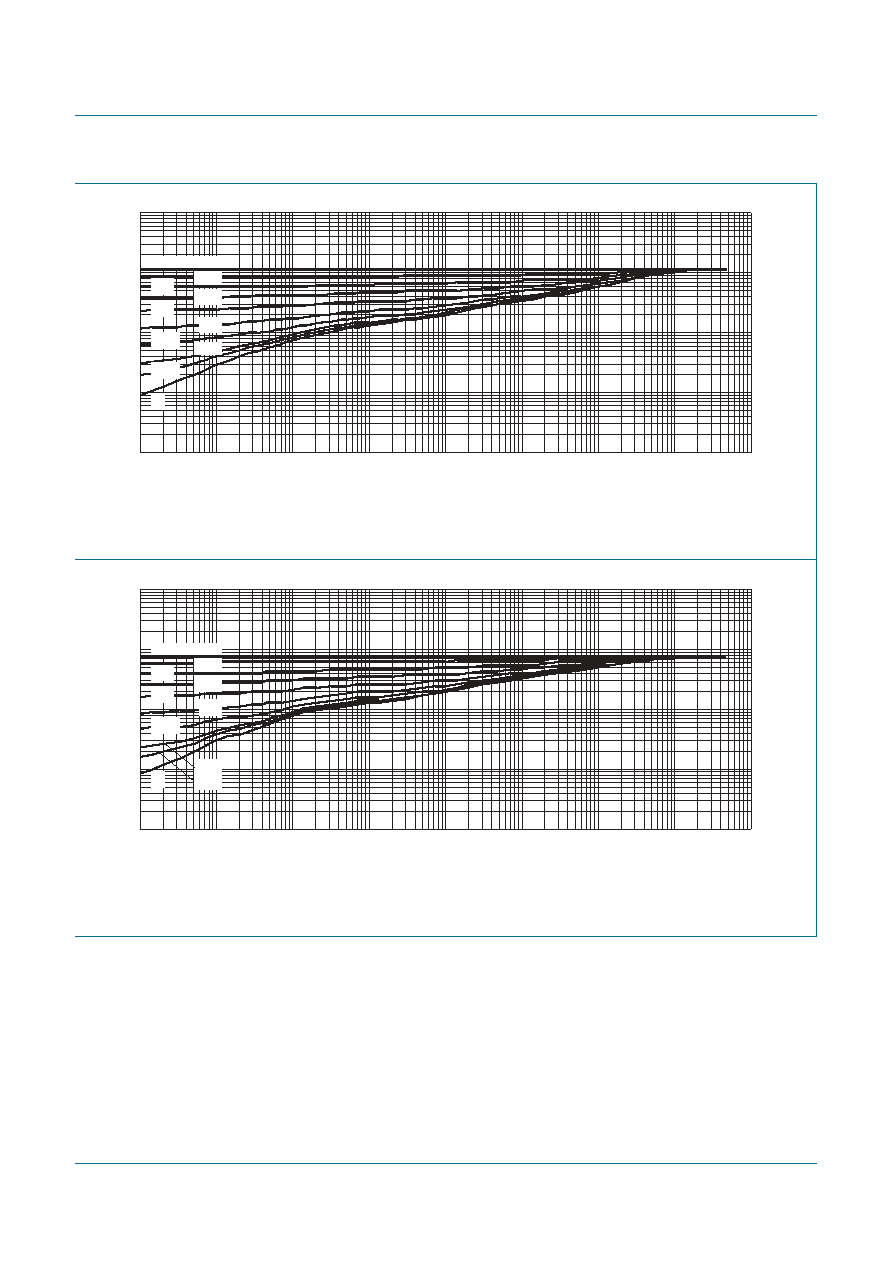

Fig 8.

Transient thermal impedance from junction to ambient as a function of pulse duration for SOT89;

typical values

Fig 9.

Transient thermal impedance from junction to ambient as a function of pulse duration for SOT89;

typical values

006aac681

10

1

(K/W)

10

1

0

duty cycle = 1

0.01

0.02

0.05

0.1

0.2

0.33

0.5

0.75

006aac682

10

1

(K/W)

10

1

0

duty cycle = 1

0.01

0.05

0.1

0.2

0.33

0.5

0.75

0.02
