NJG1508F

- 10 -

PCB SIZE=19.4x14.0mm

PCB: FR-4, t=0.5mm

CAPACITOR: size 1005

STRIP LINE WIDTH=1mm

C1~C3: 56pF

C4, C5: 10pF

R1: 510K

Ω

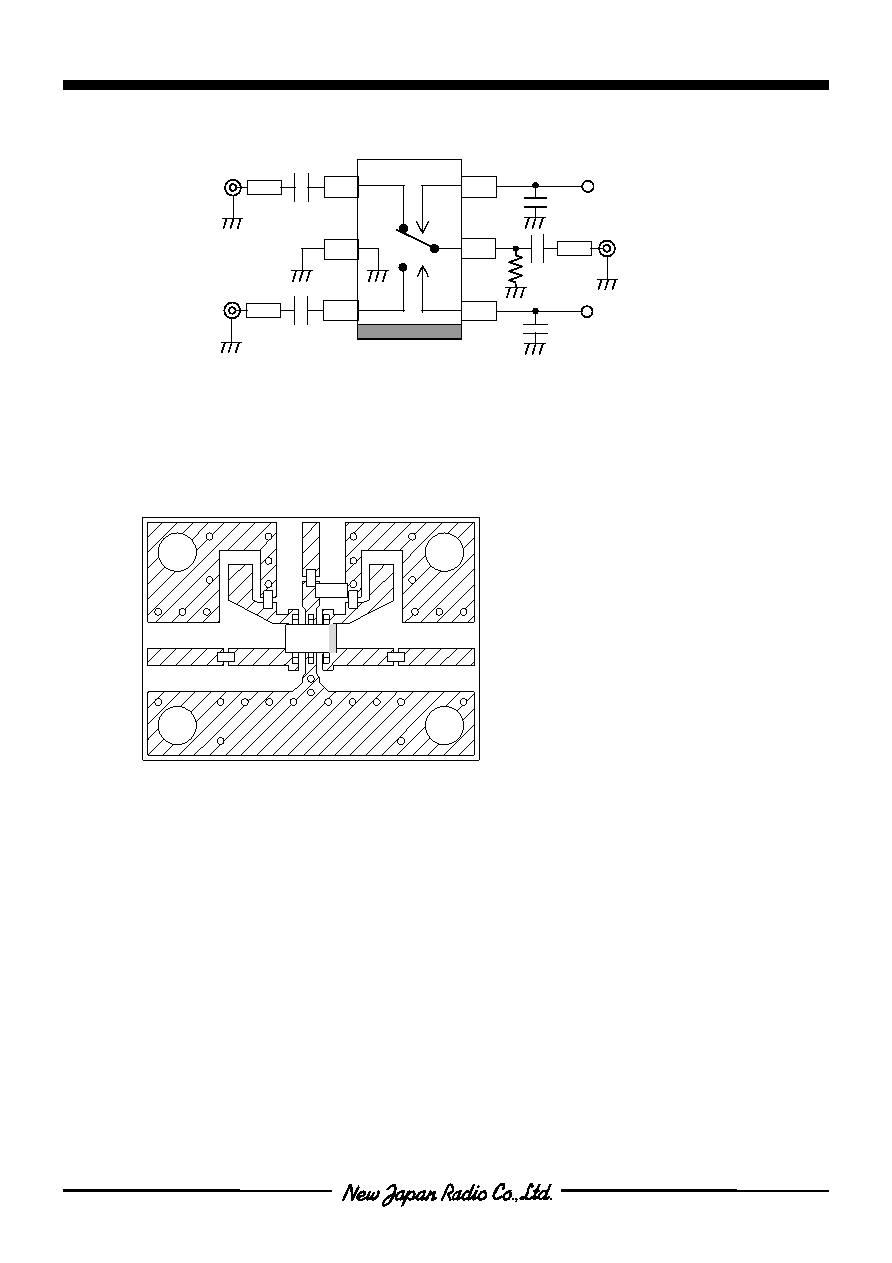

nTEST CIRCUIT

nRECOMMENDED PCB DESIGN

Precautions

[1]External capacitors should be connected to the input and output RF terminals (P1,

P2, PC) to block the DC current. The above example is a circuit at 900MHz.Please

select the capacitor value suitable for actual frequency from 10pF to 1000pF.

close as possible. The values of these capacitors should be selected from 5pF to

100pF range. Please consider that these values are very effective to switching time

(Larger capacitor gives longer switching time).

[3]In order to keep good isolation characteristics, the ground terminal (5pin) should be

connected to the ground pattern with wider width as close as possible, and

through-hole in the ground plane should also be placed as close as possible.
