WPANTDP092-R1A

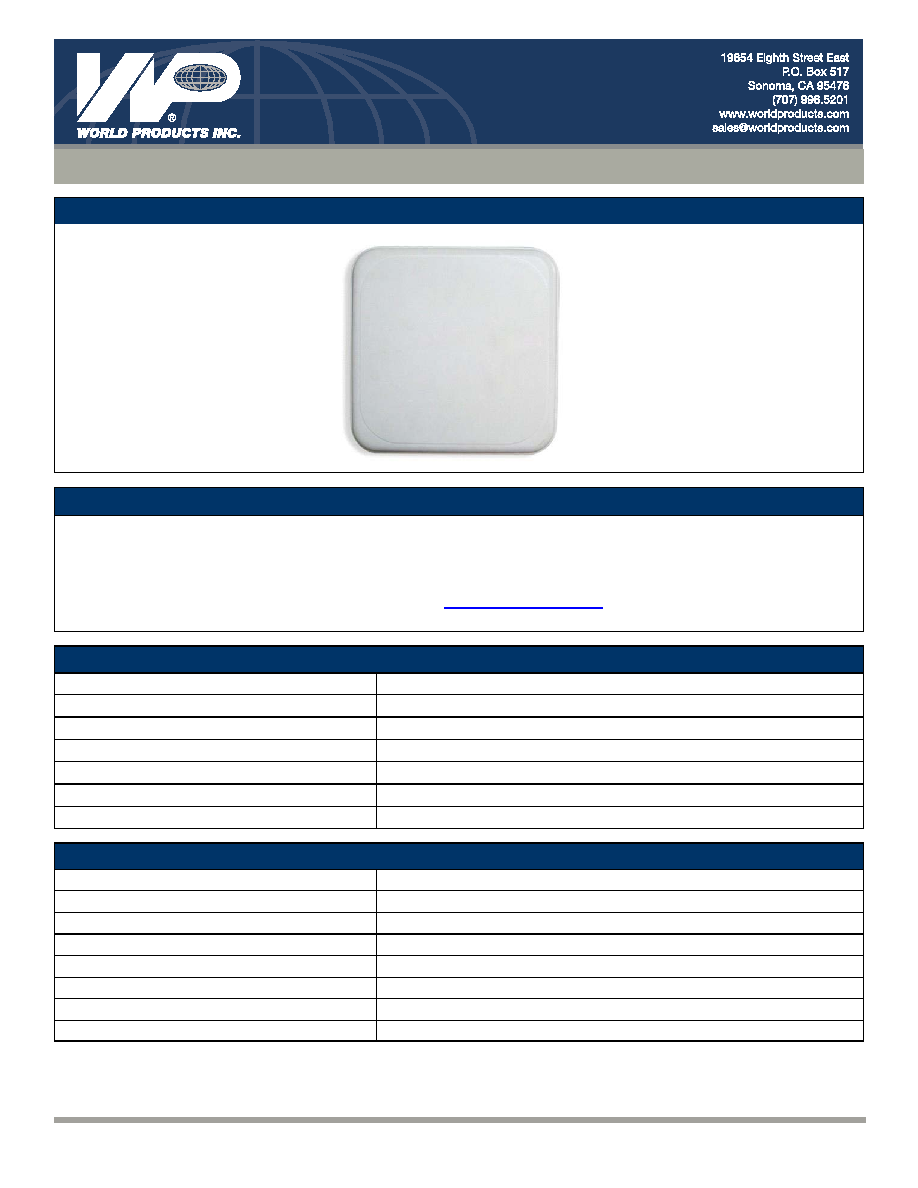

900 MHz ISM band Directional Panel Antenna

Description / Application

This is a high gain Directional Panel antenna that operates in the 900 MHz ISM band. It comes with an SMA connector. The antenna

can be customized with different connectors.

We can assist your engineers to optimize mounting positions for these antennas in your specific application and can further

customize the antennas for your specific needs. Please contact sales@worldproducts.com with your specific application

requirements.

Electrical Properties

Operating Frequency

902 – 928 MHz

Approximate Antenna Impedance [

Ω] 50

Ω

VSWR – Typical

< 2:1

Peak Gain [dBi] (Typical)

9 dBi

Polarization

Circular

Pattern

Directional (> 15 dB front-to-back ratio)

Accepted Power [W] (Max)

100 Watts

Mechanical / Environmental Properties

Antenna Dimensions

11’’ X 11’’ X 1.4’’

(278mm X 278mm X 35mm)

Antenna Color

White

Connector

SMA

Mounting Kit

L Bracket & U Bolts

Mounting Mast Diameter

1.6’’ – 2’’

(40 – 50 mm)

Operating / Storage Temperature

-40

Environmental

Meets standards for UL 94V-0

Hazardous Materials

RoHS Compliant
