FR152S datasheet(1/2 Pages) GWSEMI

tên linh kiện	FR152S

Giải thích chi tiết về linh kiện	1.5 AMP FAST RECOVERY RECTIFIERS

PDF	2 Pages

Scroll/Zoom	100%

nhà sản xuất	GWSEMI [Goodwork Semiconductor Co., Ltd .]

Trang chủ	http://www.goodwork.com.tw/

Logo

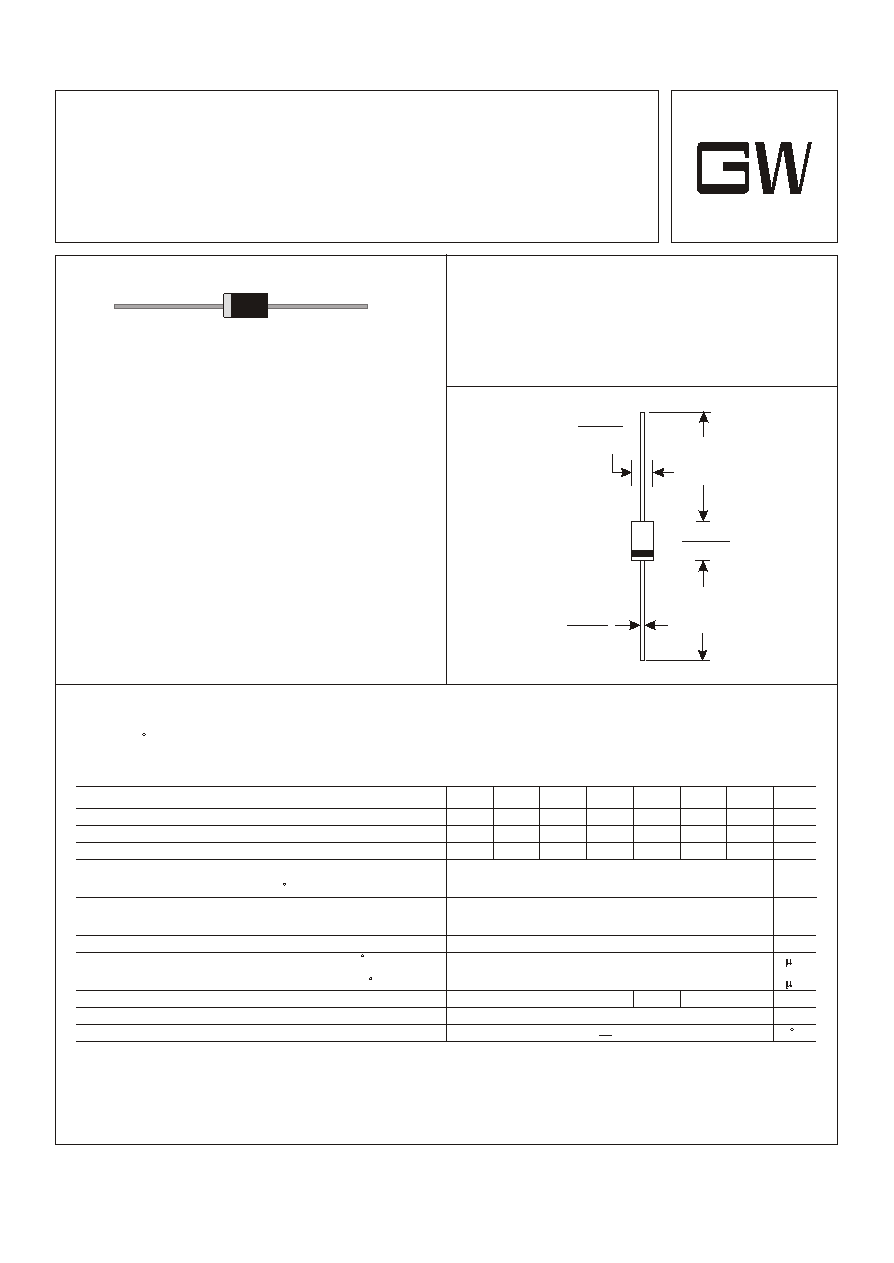

1 / 2 page

1.5 AMP FAST RECOVERY RECTIFIERS

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

.375"(9.5mm) Lead Length at Ta=75 C

FEATURES

MECHANICAL DATA

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Maximum Instantaneous Forward Voltage at 1.5A

Maximum DC Reverse Current

Ta=25 C

at Rated DC Blocking Voltage

Ta=100 C

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance (Note 2)

50

100

200

400

600

800

1000

V

50

100

200

400

600

800

1000

V

35

70

140

280

420

560

700

1.5

50

5.0

100

30

-65

+150

V

A

V

nS

pF

C

NOTES:

1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

* Low forward voltage drop

* High current capability

* High reliability

* High surge current capability

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Axial leads, solderable per MIL-STD-202,

method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any

FR151S THRU FR157S

1.3

250

500

150

VOLTAGE RANGE

50 to 1000 Volts

CURRENT

1.5 Amperes

Operating and Storage Temperature Range TJ, TSTG

FR151S FR152S FR153S FR154S FR155S FR156S FR157S UNITS

A

DO-41

Dimensions in inches and (millimeters)

1.0(25.4)

MIN.

1.0(25.4)

MIN.

.205(5.2)

.166(4.2)

.034(.9)

.028(.7)

DIA.

.107(2.7)

.080(2.0)

DIA.

174
