PS120-R33M-RC datasheet(1/1 Pages) ALLIED

tên linh kiện	PS120-R33M-RC

Giải thích chi tiết về linh kiện	Power Shielded Inductor

PDF	1 Pages

Scroll/Zoom	100%

nhà sản xuất	ALLIED [Allied Components International]

Trang chủ	http://www.alliedcomponents.com

Logo

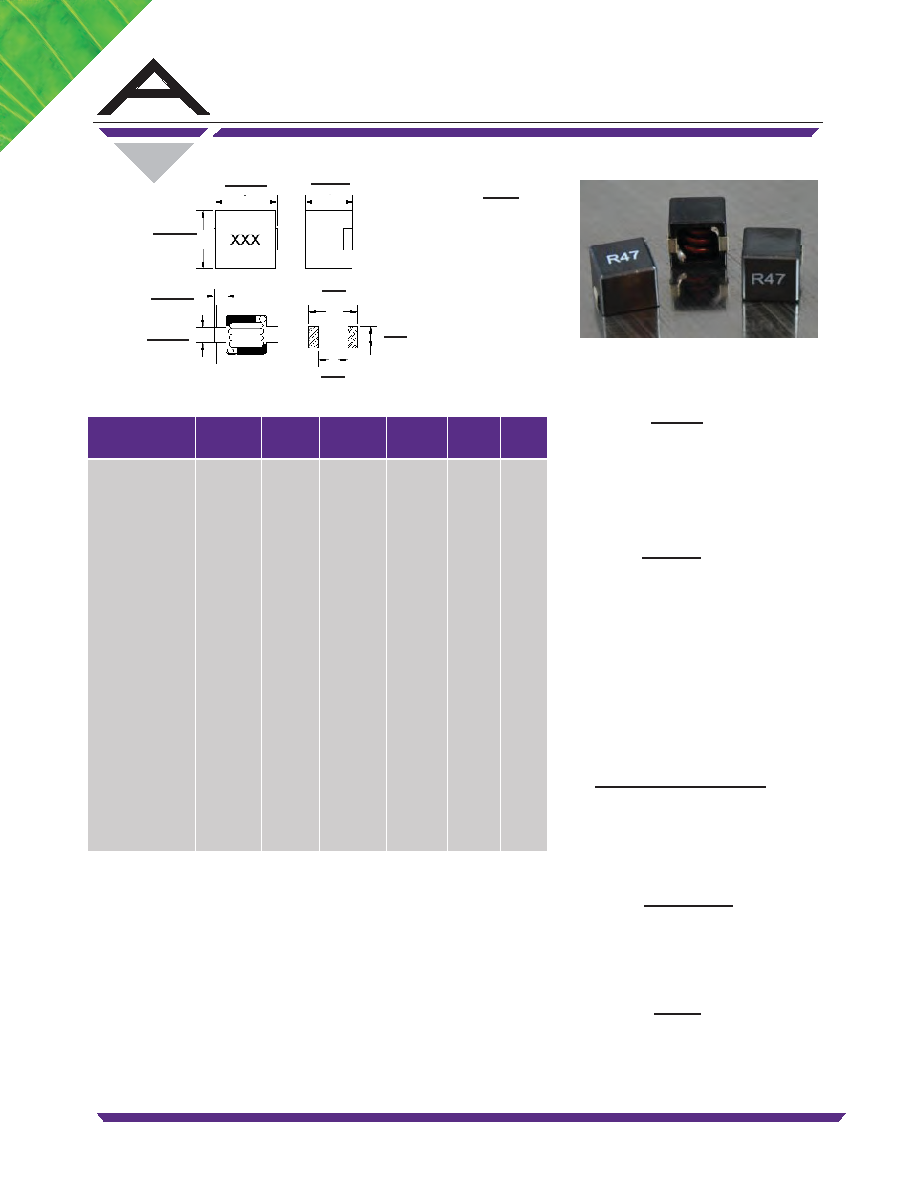

1 / 1 page

Power Shielded Inductor

PS120

15

ALLIED COMPONENTS INTERNATIONAL

714-665-1140

www.alliedcomponents.com

RoHS

1/18/13

Features

• SMD Ultra High Current up to 50A Isat

Electrical

Inductance Range:

.22µH to 3.3µH additonal

Tolerance:

20% over entire range

Pre-Heat 150ºC, 1 minute.

Test Equipment

(L):

WK 4237 Meter

• Magnetically Shielded Construction

Resistance to Soldering Heat

Solder Composition:

Sn/Ag3.0/Cu0.5

Solder Temp:

260ºC ± 5ºC

DCR:

HK502BS Meter

Temp. Rise:

=40ºC Typical at rated Irms without

without core loss.

Test Frequency

: 100KHz

• Designed for low buzz noise

• Low DC Resistance

Immersion Time:

10 sec. ± 1 sec.

Part temperature should not exceed 125ºC

including temperature rise.

• Suitable for pick and place

values available.

Inductance drop: 20% typical at rated Isat

Physical

Packaging:

300 pieces per 13 inch reel.

Marking:

EIA Inductance Code

Isat/Irms:

3260B WK & DC Bias 3265B WK

All specifications subject to change without notice.

Allied

Part

Number

Inductance

(

µH)

Irms

(A) Max

Test

Frequency

(KHz, 0.5V)

Tolerance

(±%)

RDC

m Max

PS120-R22M-RC

PS120-R33M-RC

PS120-R47M-RC

PS120-R56M-RC

PS120-R68M-RC

PS120-R82M-RC

Isat

(A) Max

.22

.33

.47

.56

.68

.82

1.5

1.8

2.4

20

100

50

45

40

38

37

35

30

∆

Available in tighter tolerances

PS120-1R0M-RC

PS120-1R5M-RC

PS120-2R2M-RC

1.0

1.5

2.2

2.4

4.7

20

100

34

29

25

21

30

PS120-3R3M-RC

3.3

6.3

20

100

19

14

Operating Temp:

-25ºC to +85ºC

Dimensions:

Inches

(mm)

.394

(10. Max)

.485

(12.3 Max)

.461

(11.7 Max)

.079±.008

(2.0±0.2)

.138±.008

(3.5±0.2)

.276

(7.0)

.213

(5.4)

.504

(12.8)
