UNISONIC TECHNOLOGIES CO., LTD

L8565

Preliminary

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 13

Copyright © 2013 Unisonic Technologies Co., Ltd

QW-R114-004.d

HIGH PERFORMANCE POWER

FACTOR CORRECTION

CONTROLLER IN CONTINUOUS

CONDUCTION MODE



DESCRIPTION

The UTC L8565 is a wide input range controller integrated circuit for

active power factor correction. The circuit is designed for boost PFC

application, and requires reduced external component count. Its power

supply is recommended to be provided by an external auxiliary supply

which will switch on and off the IC.

The circuit operates in the continuous conduction mode under average

current, and in discontinuous conduction mode only in light load

condition. The switching frequency can be set with the external resistor at

pin 4. Both current and voltage loop compensations are done externally

to allow full user control.

There are many kinds of protection features incorporated to make sure of safe system operation conditions, such as

brown-out protection, output under voltage detection and peak current limitation. The inside reference is adjusted

(5V±2%) to make sure control level and precise protection. There is a particular soft-start function to limit the start up

current and thus reduces the stress on the boost diode.



FEATURES

* Supports wide input range

* Average current control

* Ease of use with few external components

* External current and voltage loop compensation

* Trimmed internal reference voltage (5V±2%)

* Programmable operating/switching frequency

* Max duty cycle of 95% (typ) at 125kHz

* Under voltage lockout

* Cycle by cycle peak current limiting

* Over-voltage protection

* Open loop detection

* Output under-voltage detection

* Brown-out protection

* Soft Over current Protection

* Enhanced dynamic response



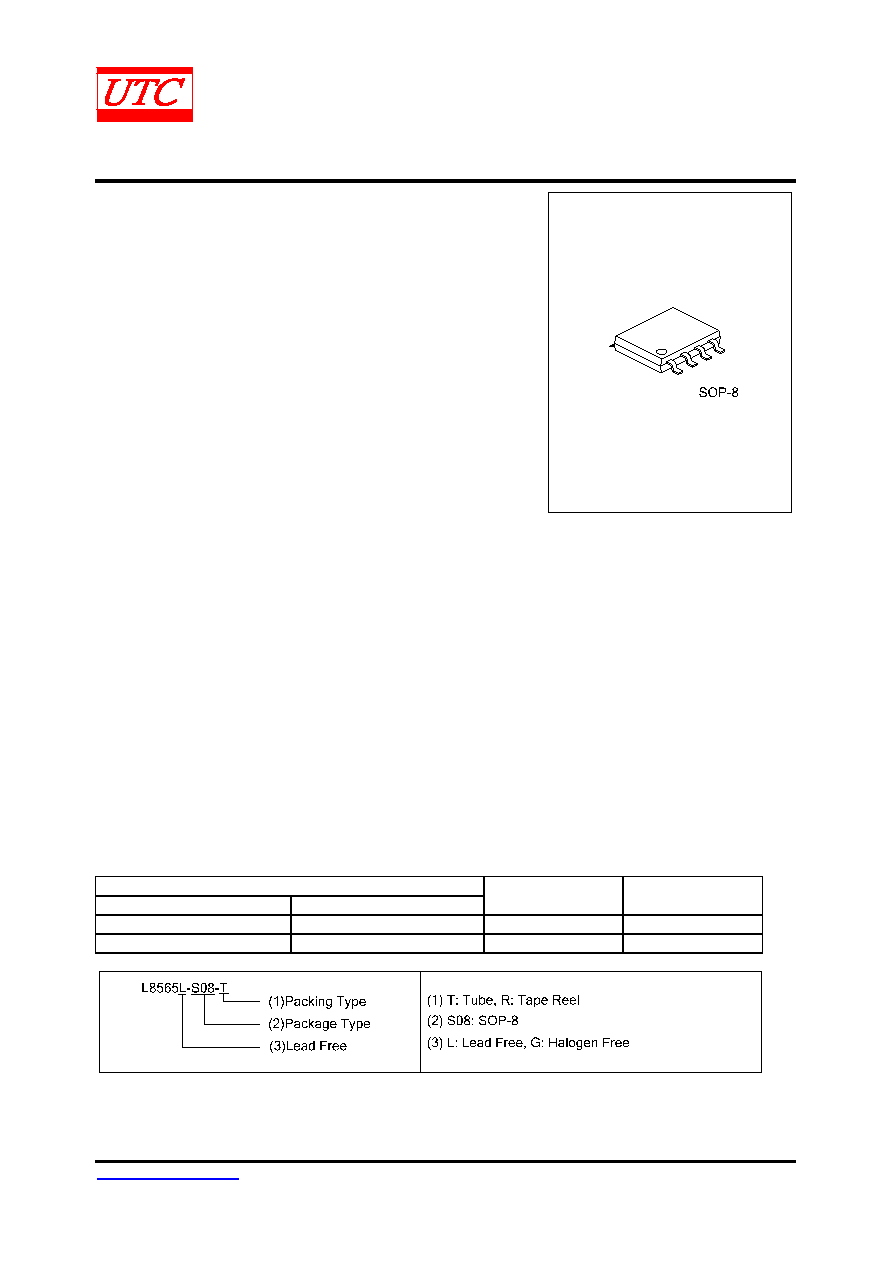

ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

L8565L-S08-R

L8565G-S08-R

SOP-8

Tape Reel

L8565L-S08-T

L8565G-S08-T

SOP-8

Tube
