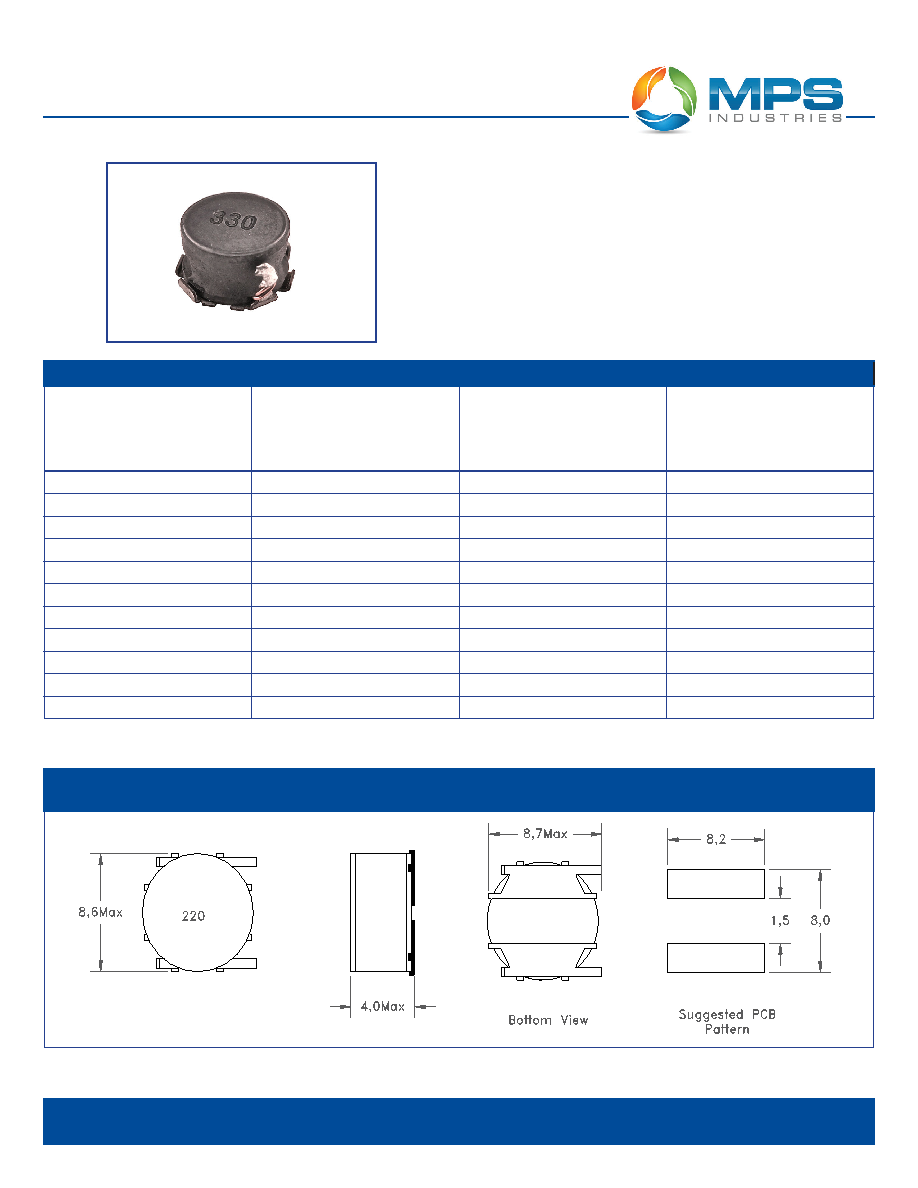

DIMENSIONS (mm)

Tel: 310-325-1043

Fax: 310-325-1044

www.mpsind.com

sales@mpsind.com

PSF8040 SERIES

• Magnetic shielding using magnetic epoxy resin results in lower

costs as compared to traditional ferrite shielded inductors

• Size: 8.7mm length x 8.6mm width x 4.0mm height

• Operating Temperature -40ºC to +120ºC

• RoHS Compliant Product

• Custom Design Available

ELECTRICAL PARAMETERS @ 25°C

Part Number

PSF8040-

INDUCTANCE

(μH)

±20%

Isat

(Adc)

MAX

DCR

(Ω)

MAX

100M

10

3.20

0.038

150M

15

2.60

0.058

220M

22

2.20

0.075

330M

33

1.80

0.110

470M

47

1.50

0.160

680M

68

1.20

0.230

101M

100

1.00

0.330

151M

150

0.80

0.490

221M

220

0.60

0.730

331M

330

0.50

1.10

681M

680

0.30

2.20

Note:

1.

Inductance measured at 100KHz, 1Vrms

2.

Isat: ∆L drops 30% max from its initial value

Productperformanceislimitedtospecifiedparameters.Dataissubjecttochangewithoutpriornotice.

MAGNETIC EPOXY SHIELDED

SMT POWER INDUCTOR

Dimensions

Unlessotherwisespecified,alltolerancesare:

inch: .XX : ±0.015

.XXX : ±0.004

mm:X,X:±0,38X,XX:±0,10
