Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +46 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +41 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +30 dBm (Typ.)

Power

Vdc

+15

+15

mA

115

125 Max.

RF AMPLIFIER

MODEL

TM3003

Available as

:

TM3003, 4 Pin TO-8 (T4)

TN3003, 4 Pin Surface Mount (SM3)

FP3003, 4 Pin Flatpack (FP4)

BX3003, Connectorized Housing (H1)

Features

!

!

!

!

! Output Power: +19.5 dBm Typical

!

!

!

!

! Medium Gain: 17.5 dB Typical

!

!

!

!

! Operating Temp.: - 55 ºC to + 85 ºC

!

!

!

!

! Environmental Screening Available

CHARACTERISTIC

TYPICAL

MIN/MAX

Ta= 25 ºC

Ta = -55 ºC to +85 ºC

Frequency

800-1200 MHz

800-1200 MHz

Note: Care should always be taken to effectively ground the case of each unit.

Noise Figure (dB)

5.5

7.0 Max.

VSWR

In

<1.75:1

2.0:1 Max.

Out

<1.75:1

2.0:1 Max.

Reverse

Isolation (dB)

-28

-26 Max.

Power @ 1 dB

Comp. (dBm)

+19.5

+19 Min.

Gain (dB)

17.5

15 Min.

Specifications

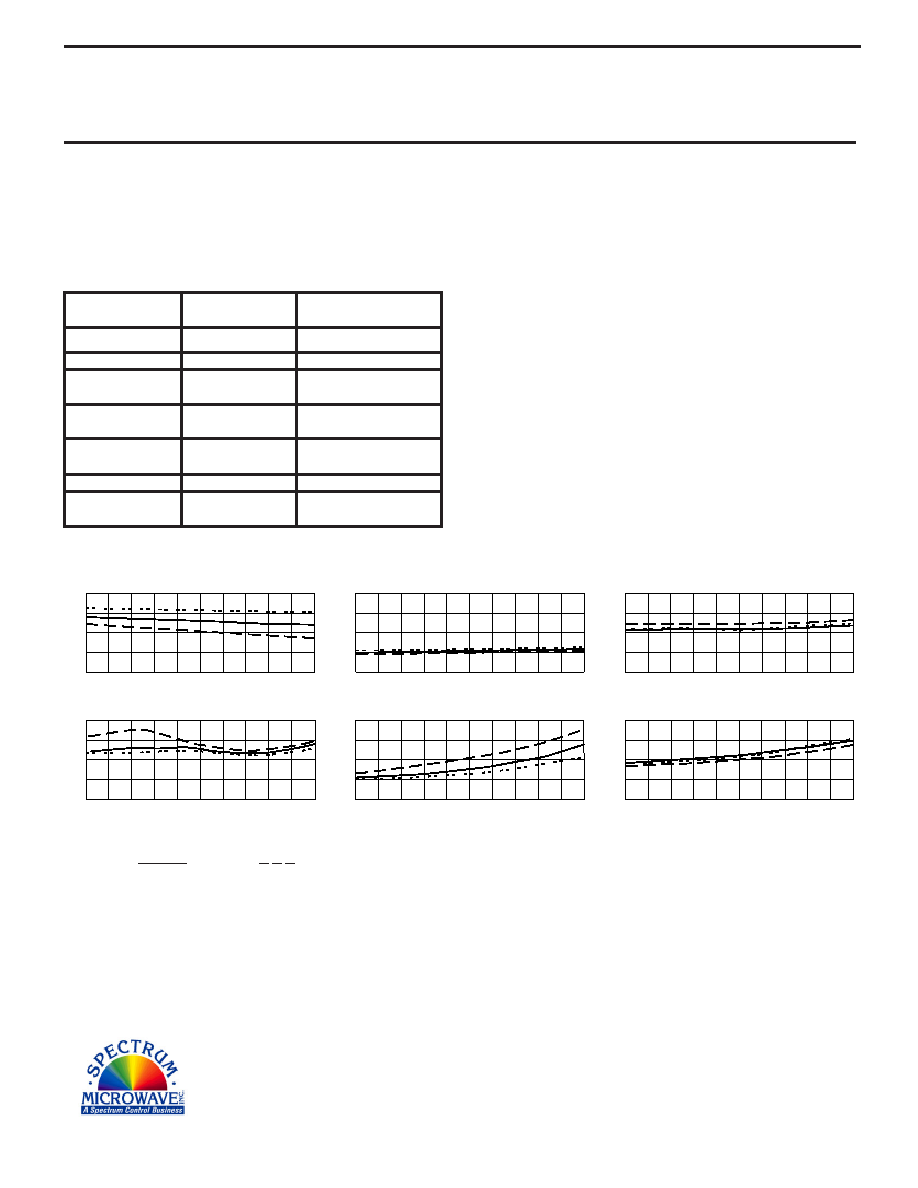

Typical Performance Data

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec Max.)

05/10/04

2.0

1.5

1.0

2.0

1.5

1.0

3

7

6

5

4

19

17

15

+21

+20

+19

+18

+17

0

- 10

- 20

- 30

- 40

16

18

Start 800 MHz

Stop 1200 MHz

Start 800 MHz

Stop 1200 MHz

Start 800 MHz

Stop 1200 MHz

Start 800 MHz

Stop 1200 MHz

Start 800 MHz

Stop 1200 MHz

Start 800 MHz

Stop 1200 MHz

Gain (dB)

Noise Figure (dB)

1 dB Comp. (dBm)

Input VSWR

Output VSWR

Reverse Isolation (dB)
