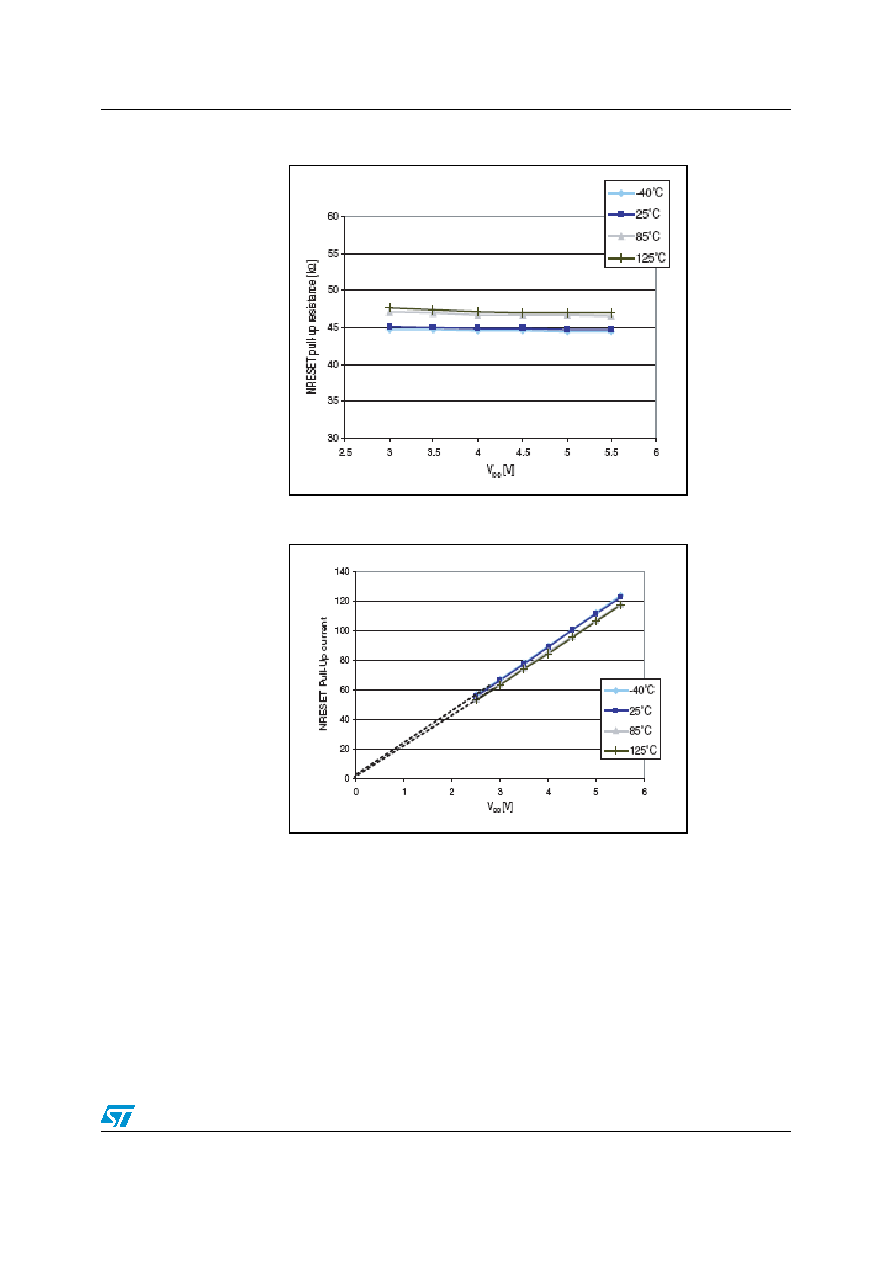

81 / 117 page ![]() Figure 36: Typical NRST pull-up resistance vs VDD @ 4 temperatures Figure 37: Typical NRST pull-up current vs VDD @ 4 temperatures The reset network shown in the following figure protects the device against parasitic resets. The user must ensure that the level on the NRST pin can go below VIL(NRST) max. (see Table 38: I/O static characteristics ), otherwise the reset is not taken into account internally. For power consumption sensitive applications, the external reset capacitor value can be reduced to limit the charge/discharge current. If NRST signal is used to reset external circuitry, attention must be taken to the charge/discharge time of the external capacitor to fulfill the external devices reset timing conditions. Minimum recommended capacity is 100 nF. 81/117 DocID15441 Rev 9 Electrical characteristics STM8S103K3 STM8S103F3 STM8S103F2 |
|
