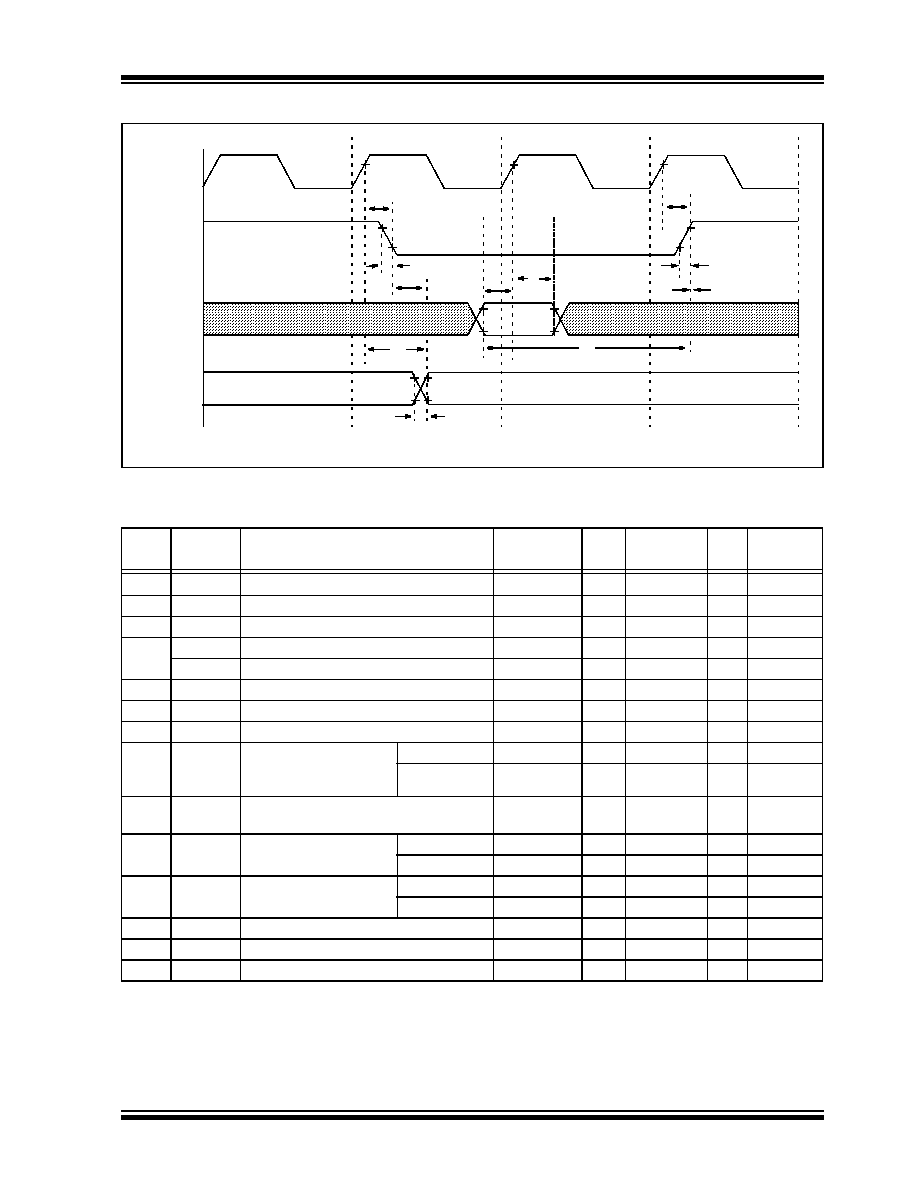

437 / 482 page  © 2007 Microchip Technology Inc. Preliminary DS39625C-page 435 PIC18F2585/2680/4585/4680 FIGURE 27-6: CLKO AND I/O TIMING TABLE 27-9: CLKO AND I/O TIMING REQUIREMENTS Note: Refer to Figure 27-4 for load conditions. OSC1 CLKO I/O pin (Input) I/O pin (Output) Q4 Q1 Q2 Q3 10 13 14 17 20, 21 19 18 15 11 12 16 Old Value New Value Param No. Symbol Characteristic Min Typ Max Units Conditions 10 TOSH2CKLOSC1 ↑ to CLKO ↓ — 75 200 ns (Note 1) 11 TOSH2CKHOSC1 ↑ to CLKO ↑ — 75 200 ns (Note 1) 12 TCKR CLKO Rise Time — 35 100 ns (Note 1) 13 TCKF CLKO Fall Time — 35 100 ns (Note 1) 14 TCKL2IOVCLKO ↓ to Port Out Valid — — 0.5 TCY + 20 ns (Note 1) 15 TIOV2CKH Port In Valid before CLKO ↑ 0.25 TCY + 25 — — ns (Note 1) 16 TCKH2IOI Port In Hold after CLKO ↑ 0— — ns (Note 1) 17 TOSH2IOVOSC1 ↑ (Q1 cycle) to Port Out Valid — 50 150 ns 18 TOSH2IOIOSC1 ↑ (Q2 cycle) to Port Input Invalid (I/O in hold time) PIC18FXXXX 100 — — ns 18A PIC18LFXXXX 200 — — ns VDD = 2.0V 19 TIOV2OSH Port Input Valid to OSC1 ↑ (I/O in setup time) 0— — ns 20 TIOR Port Output Rise Time PIC18FXXXX — 10 25 ns 20A PIC18LFXXXX — — 60 ns VDD = 2.0V 21 TIOF Port Output Fall Time PIC18FXXXX — 10 25 ns 21A PIC18LFXXXX — — 60 ns VDD = 2.0V 22† TINP INT pin High or Low Time TCY —— ns 23† TRBP RB7:RB4 Change INT High or Low Time TCY —— ns 24† TRCP RC7:RC4 Change INT High or Low Time 20 ns † These parameters are asynchronous events not related to any internal clock edges. Note 1: Measurements are taken in RC mode, where CLKO output is 4 x TOSC. |
|
