PIC18F2585/2680/4585/4680

DS39625C-page 432

Preliminary

27.4.2

TIMING CONDITIONS

The temperature and voltages specified in Table 27-5

apply to all timing specifications unless otherwise

noted. Figure 27-4 specifies the load conditions for the

timing specifications.

TABLE 27-5:

TEMPERATURE AND VOLTAGE SPECIFICATIONS – AC

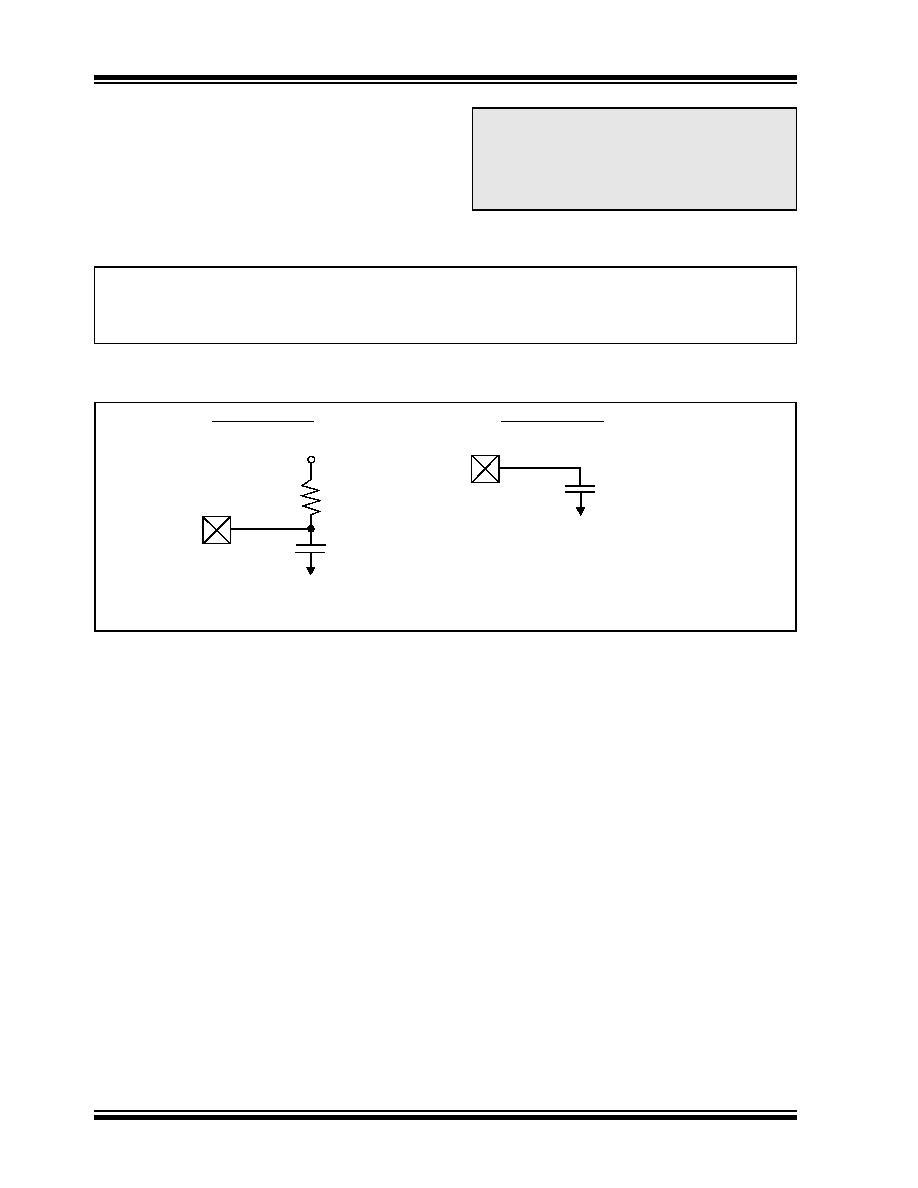

FIGURE 27-4:

LOAD CONDITIONS FOR DEVICE TIMING SPECIFICATIONS

Note:

Because of space limitations, the generic

terms “PIC18FXXXX” and “PIC18LFXXXX”

are used throughout this section to refer to

the

PIC18F2585/2680/4585/4680

and

PIC18LF2585/2680/4585/4680 families of

devices specifically and only those devices.

AC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating temperature

-40°C

≤ TA ≤ +85°C for industrial

Operating voltage VDD range as described in DC spec Section 27.1 and

Section 27.3. LF parts operate for industrial temperatures only.

VDD/2

VSS

RL = 464

CL = 50 pF

for all pins except OSC2/CLKO

and including D and E outputs as ports

Load Condition 1

Load Condition 2
