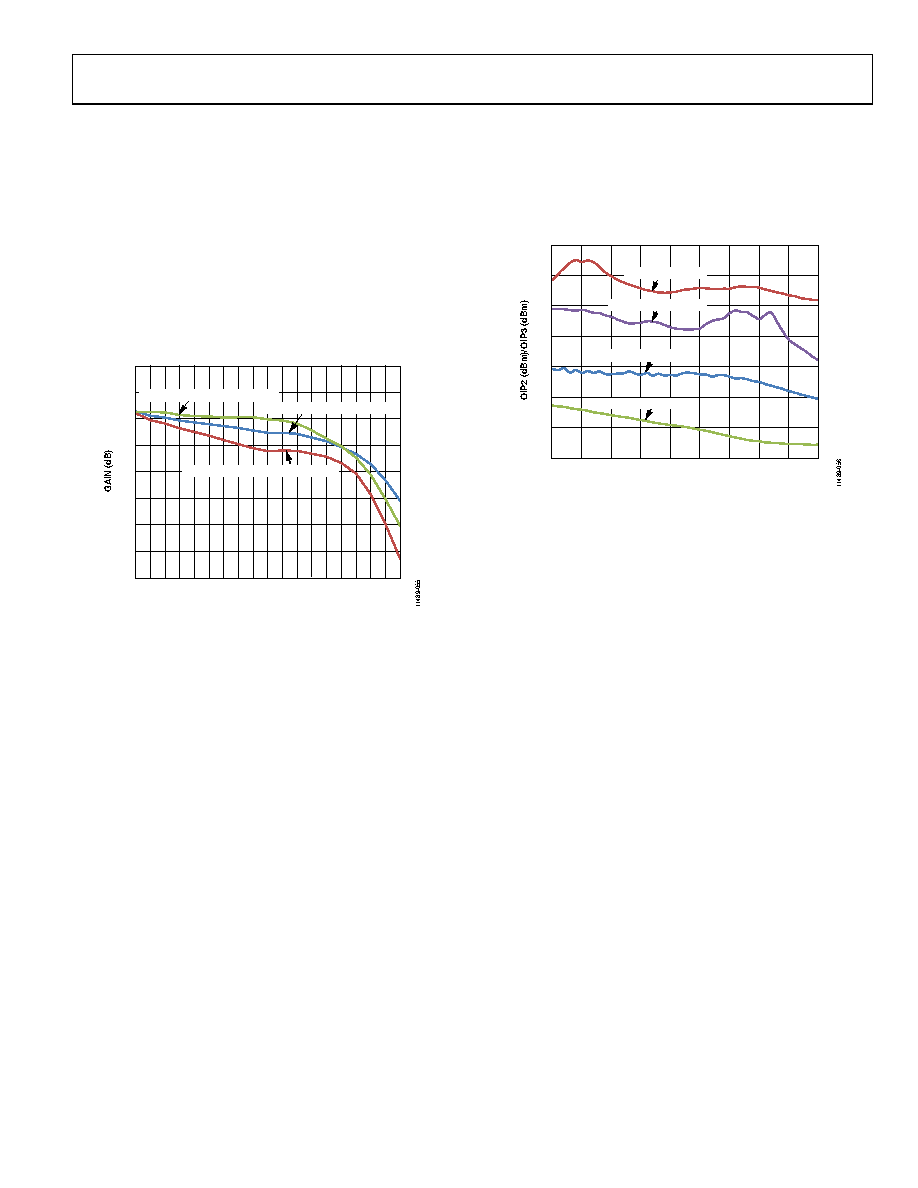

background image
Data Sheet
ADRF6620
Rev. 0 | Page 37 of 52
Maintaining the same third-order Chebyshev filter design shown
in Figure 91, the component values can be tuned to optimize
performance with some trade-offs. To achieve maximally flat pass-
band response, the trade-off is signal bandwidth (see Figure 92).
The L3 and L4 inductors are replaced with 47 nH, and the
capacitors are not populated. This configuration results in the
flattest pass-band ripple; however, the signal bandwidth starts to
roll off at 300 MHz. A narrower bandwidth translates to more
attenuation of the mixer sum and LO leakage, which is a desirable
effect if the wider signal bandwidth is not a requirement. Use the
results shown in Figure 92 only as a guide, and design the interstage
filter to the specific PCB board conditions. The plots in Figure 92
were measured using the ADRF6620 evaluation board.
4
5
6
7
8
9
10
11
12
50
100
150
200
250
300
350
400
450
500
IF FREQUENCY (MHz)
L3 = L4 = 47nH, C1 = C2 = OPEN
L3 = L4 = 39nH, C1 = C2 = OPEN
L3 = L4 = 24nH, C1 = 0.8pF, C2 = 1pF
Figure 92. Interstage Filter Design Trade-Offs
Because the capacitance of the ADRF6620 evaluation board
closely approximates the C1 and C2 capacitors, they can be
removed from the design. However, this may not be the case
for every PCB design with different stack-ups.
Figure 93 compares the OIP3 and OIP2 performance of the
ADRF6620 with and without filtering at the mixer output.
15
25
35
45
55
65
75
85
50
100
150
200
250
300
350
400
450
500
IF FREQUENCY (MHz)
OIP3 WITH NO FILTER
OIP3 WITH FILTER
OIP2 WITH NO FILTER
OIP2 WITH FILTER
Figure 93. OIP2/OIP3 Performance With and Without Filtering at
the DGA Output; RF Frequency = 900 MHz; High-Side LO Injection, LO Sweep
