ADG528A/ADG529A

–5–

ORDERING GUIDE

Temperature

Package

Model

Range

Description

Option

ADG528AKN

–40

°C to +85°C

PDIP

N-18

ADG528AKP

–40

°C to +85°C

PLCC

P-20A

ADG528AKP-REEL

–40

°C to +85°C

PLCC

P-20A

ADG528ABQ

–40

°C to +85°C

CERDIP

Q-18

ADG528ATQ

–55

°C to +125°C

CERDIP

Q-18

ADG528ABCHIPS

DIE

ADG528ATCHIPS

DIE

ADG529AKN

–40

°C to +85°C

PDIP

N-18

ADG529AKP

–40

°C to +85°C

PLCC

P-20A

ADG529AKRW

–40

°C to +85°C

SOIC

RW-18

ADG529AKRW-REEL

–40

°C to +85°C

SOIC

RW-18

ADG529AKRW-REEL7

–40

°C to +85°C

SOIC

RW-18

ADG529ABQ

–40

°C to +85°C

CERDIP

Q-18

ADG529ATQ

–55

°C to +125°C

CERDIP

Q-18

ADG529ABCHIPS

DIE

ADG529ATCHIPS

DIE

NOTES

1N = Plastic DIP; P = Plastic Leaded Chip Carrier (PLCC); Q = Cerdip; RW = SOIC.

ABSOLUTE MAXIMUM RATINGS

(TA = +25

°C, unless otherwise noted)

VDD to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 V

VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V

VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –25 V

Analog Inputs

Voltage at S, D . . . . . . . . . VSS – 2 V to VDD + 2 V or 20 mA,

whichever Occurs First

Continuous Current, S or D . . . . . . . . . . . . . . . . . . . 20 mA

Pulsed Current, S or D

1 ms duration, 10% Duty Cycle . . . . . . . . . . . . . . . 40 mA

Digital Inputs

Voltage at A, EN,

WR, RS . . . . . . V

SS – 4 V to VDD + 4 V or

20 mA, whichever Occurs First

Power Dissipation (Any Package)

Up to +75

°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470 mW

Derates above +75

°C . . . . . . . . . . . . . . . . . . . . . . . 6 mW/°C

Operating Temperature

Commercial (K Version) . . . . . . . . . . . . . . . –40

°C to +85°C

Industrial (B Version) . . . . . . . . . . . . . . . . . –40

°C to +85°C

Extended (T Version) . . . . . . . . . . . . . . . . –55

°C to +125°C

Storage Temperature Range . . . . . . . . . . . . . –65

°C to +150°C

Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . +300

°C

NOTES

1Stresses above those listed under “Absolute Maximum Ratings” may cause permanent

damage to the device. This is a stress rating only and functional operation of the device

at these or any other conditions above those indicated in the operational sections of this

specification is not implied. Exposure to absolute maximum rating conditions for

extended periods may affect device reliability.

2Overvoltage at A, EN,

WR, RS, S or D will be clamped by diodes. Current should

be limited to the maximum rating above.

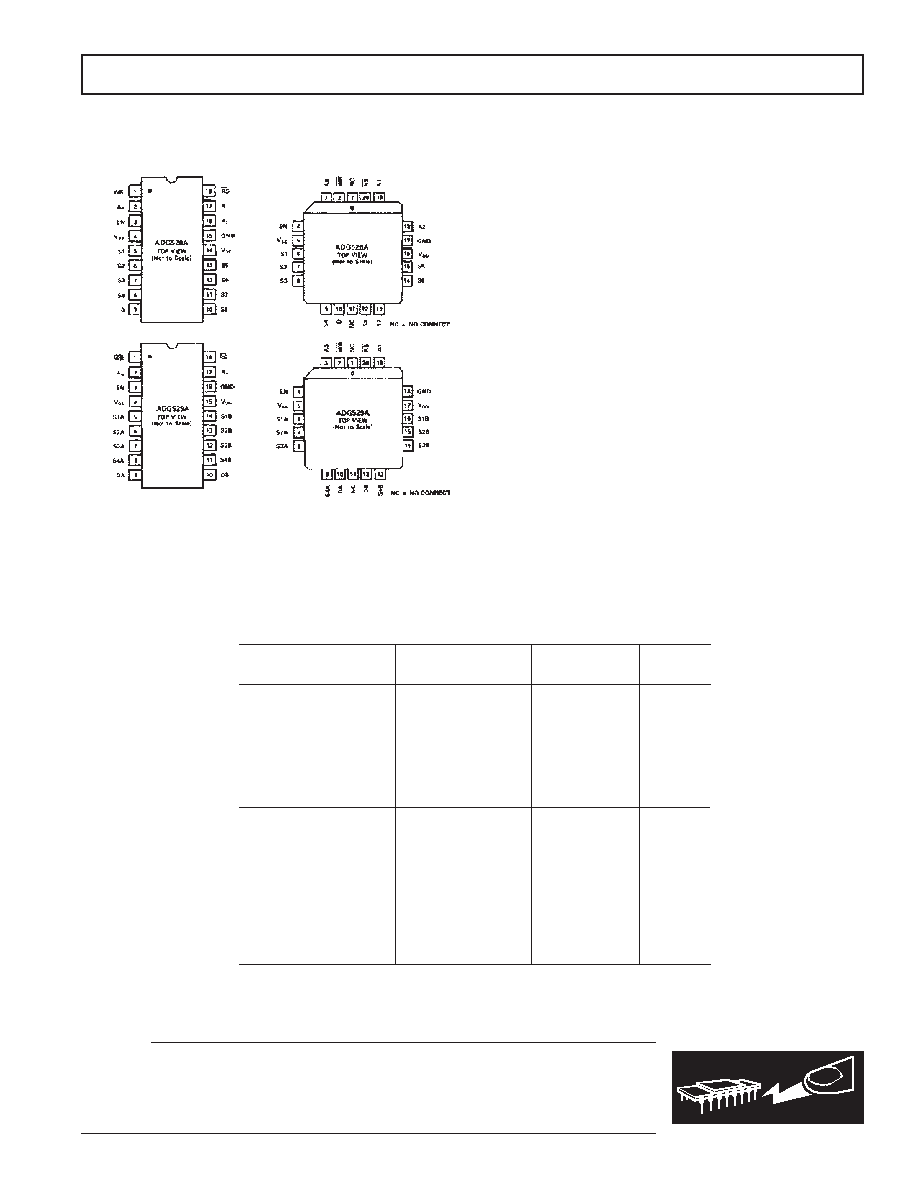

PIN CONFIGURATIONS

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily

accumulate on the human body and test equipment and can discharge without detection. Although the

ADG528A/ADG529A features proprietary ESD protection circuitry, permanent damage may occur

on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are

recommended to avoid performance degradation or loss of functionality.

WARNING!

ESD SENSITIVE DEVICE

PLCC

DIP/SOIC
