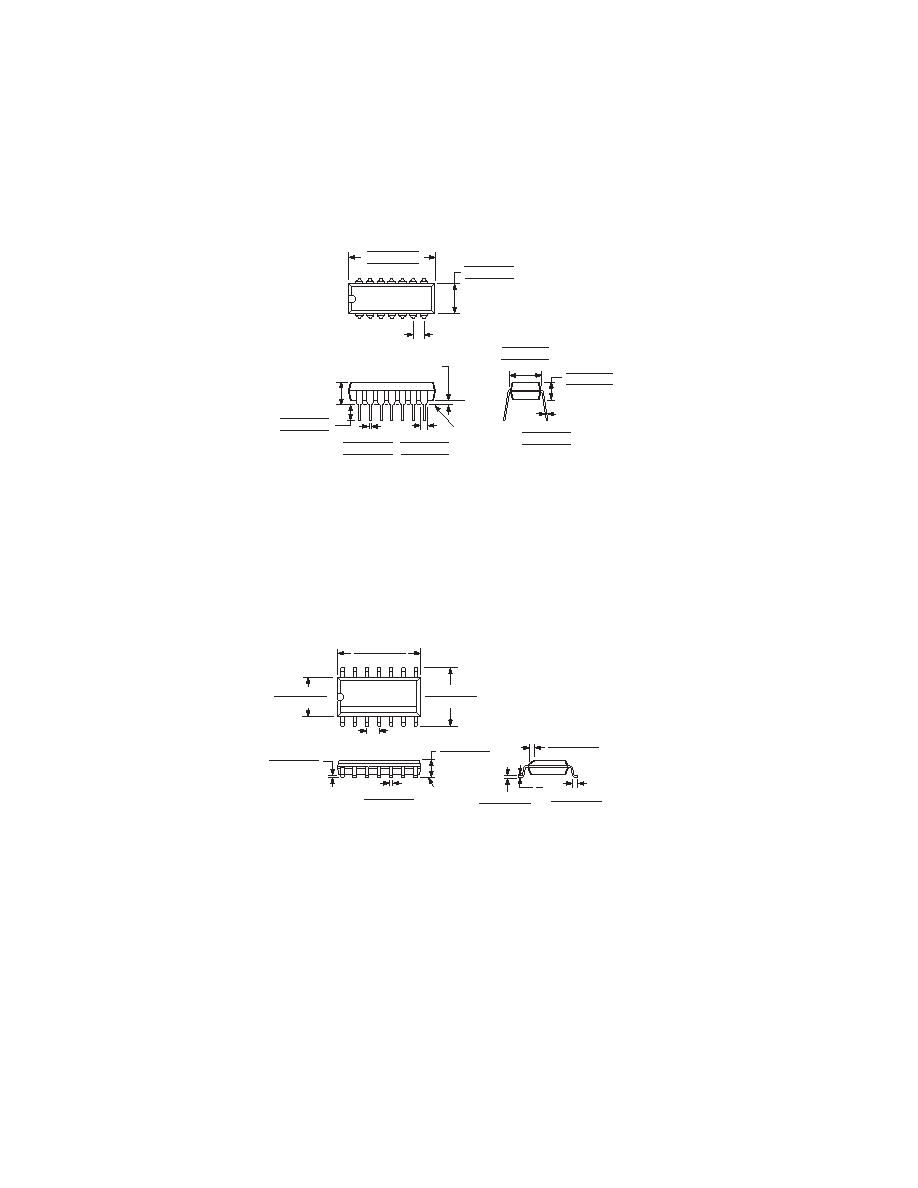

OUTLINE DIMENSIONS

14-Lead Plastic Dual In-Line Package [PDIP]

(N-14)

Dimensions shown in inches and (millimeters)

0.685 (17.40)

0.665 (16.89)

0.645 (16.38)

0.295 (7.49)

0.285 (7.24)

0.275 (6.99)

0.100 (2.54)

BSC

SEATING

PLANE

0.180 (4.57)

MAX

0.022 (0.56)

0.018 (0.46)

0.014 (0.36)

0.150 (3.81)

0.130 (3.30)

0.110 (2.79)

0.060 (1.52)

0.050 (1.27)

0.045 (1.14)

0.150 (3.81)

0.135 (3.43)

0.120 (3.05)

0.015 (0.38)

0.010 (0.25)

0.008 (0.20)

0.325 (8.26)

0.310 (7.87)

0.300 (7.62)

0.015 (0.38)

MIN

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

COMPLIANT TO JEDEC STANDARDS MO-095-AB

14-Lead Standard Small Outline Package [SOIC]

Narrow Body

(R-14)

Dimensions shown in millimeters and (inches)

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN

COPLANARITY

0.10

6.20 (0.2441)

5.80 (0.2283)

4.00 (0.1575)

3.80 (0.1496)

8.75 (0.3445)

8.55 (0.3366)

1.27 (0.0500)

BSC

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0039)

0.51 (0.0201)

0.31 (0.0122)

1.75 (0.0689)

1.35 (0.0531)

0.50 (0.0197)

0.25 (0.0098)

1.27 (0.0500)

0.40 (0.0157)

0.25 (0.0098)

0.17 (0.0067)

COMPLIANT TO JEDEC STANDARDS MS-012AB
