3

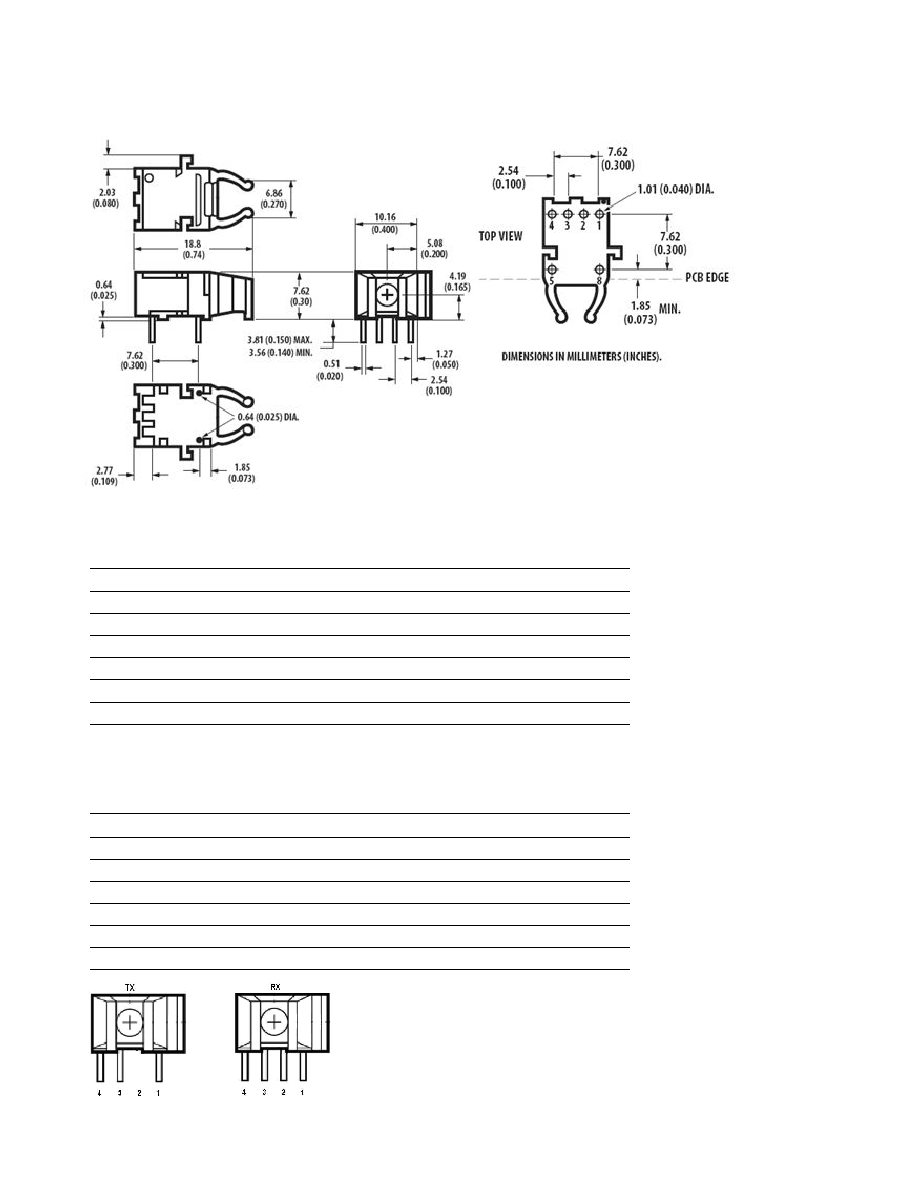

Mechanical Dimensions

Printed Circuit Board Layout Dimension

Pin Description Transmitter

Fiber port facing front, pins downward, 1=Rightmost pin to 4=Leftmost pin

Pin

Name

Function/Description

Notes

1

Transmitter Power 5V ± 5%

2

No Pin

No physical pin is available

3

Transmitter Ground

4

Data In

Transmitter Data Input

1, 2

5

NC

Not Connected, physical pin is available

3

8

NC

Not Connected, physical pin is available

3

Pin Description Receiver

Fiber port facing front, pins downward, 1=Rightmost pin to 4=Leftmost pin

Pin

Name

Function/Description

Notes

1

Data Out

Receiver Data Output

2

2

Receiver Ground

3

Receiver Power 5V ± 5%

4

NC

Not Connected, physical pin is available

4

5

NC

Not Connected, physical pin is available

3, 4

8

NC

Not Connected, physical pin is available

3, 4
