ADRF670x PHASE NOISE STAND SETUP

ALL INSTRUMENTS ARE CONNECTED IN DAISY CHAIN FASHION

VIA GBIP CABLE UNLESS OTHERWISE NOTED.

ROHDE AND SCHWARTZ

SMA 100 SIGNAL GENERATOR

AGILENT E3631A POWER

SUPPLY

AGILENT 34401A DMM

(IN DC I MODE, SUPPLY CURRENT

MEASUREMENT)

AGILENT E5052 SIGNAL SOURCE

ANALYZER

34980A MULTIFUNCTION SWITCH

(WITH 34950 AND 34921 MODULES)

AGILENT E4440A SPECTRUM

ANALYZER

KEITHLEY S46 SWITCH SYSTEM 1

(FOR BASEBAND INPUTS ON 6 SITES)

IFR 3416 SIGNAL GENERATOR

(BASEBAND SOURCE)

KEITHLEY S46 SWITCH SYSTEM 2

(FOR IF OUT AND REFIN ON 6 SITES)

INPUT DC

10 PIN CONNECTOR

(DC MEASUREMENT, +5V POS)

AND9PINDSUB

CONNECTOR (VCO AND PLL

PROGRAMMING)

REFIN

IF OUT

REFIN

LO OUT

BASEBAND INPUTS

(IP, IN, QP, QN)

PC CONTROL

CONNECTED TO SYSTEM VIA USB TO GPIB ADAPTER

ADRF6702

EVAL BOARD

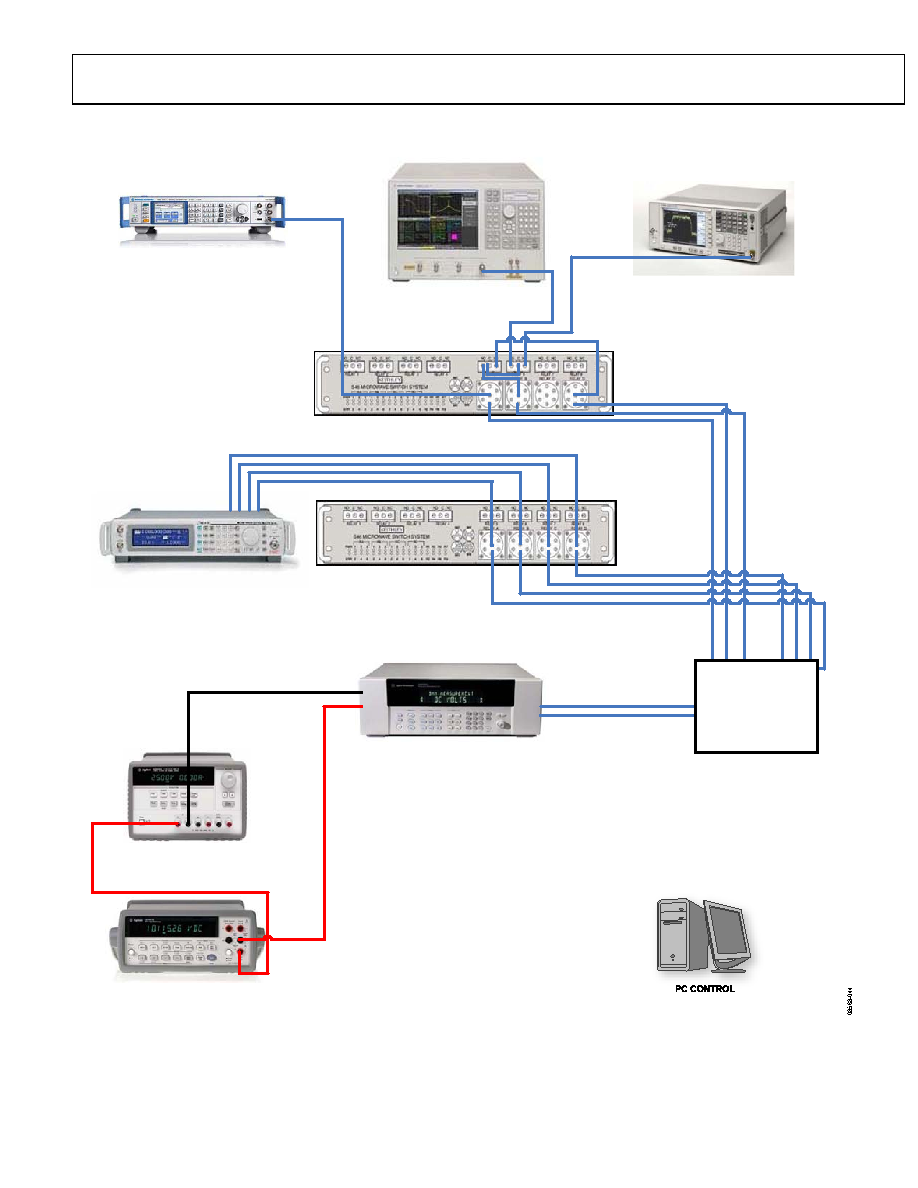

Figure 50. Characterization Setup for Phase Noise and Reference Spur Measurements
