Note • Please read rating and CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical specifications because there is no space for detailed specifications. Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

Characteristics and Types of CERALOCK®

2. Types of CERALOCK®

MHz Band lead CERALOCK® (CSTLS Series)

As CSTLS series does not require externally mounted

capacitors, the number of components can be reduced,

allowing circuits to be made more compact.

The table shows the frequency range and appearance of

the three-terminal CERALOCK® with built-in load

capacitance.

■

Part Numbering

■

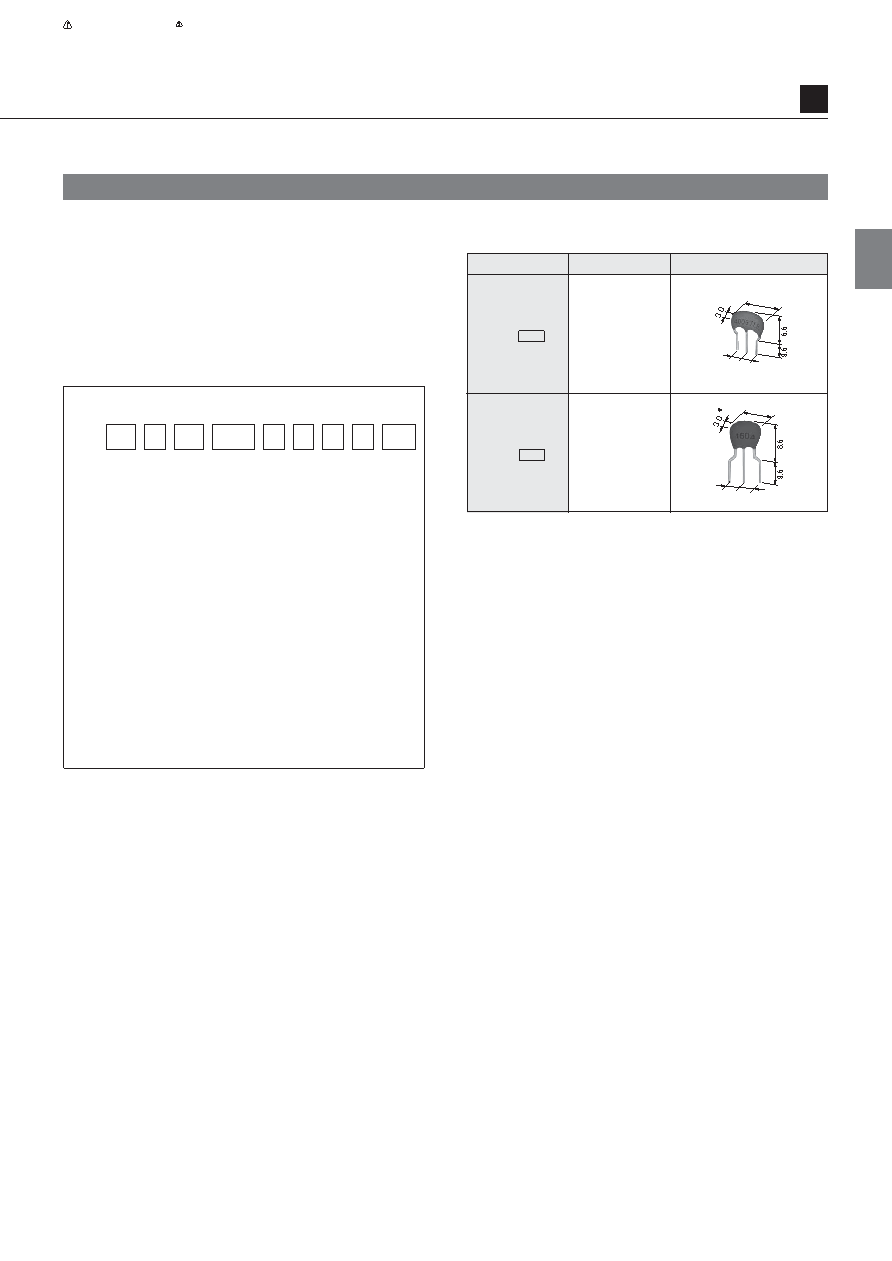

Part Numbers and Dimensions of lead CERALOCK®

(CSTLS Series)

Part Number

Frequency

Dimensions (in mm)

CSTLS

3.40–10.00MHz

2.5 2.5

8.0

CSTLS

16.00–70.00MHz

2.5 2.5

5.5

❶ Product ID

❷ Frequency/Built-in Capacitance

❸ Structure/Size

LS: Round Lead Type

❹ Nominal Center Frequency

❺ Type

G: Thickness Shear vibration,

X: Thickness Longitudinal Vibration (3rd overtone)

❻ Frequency Tolerance

1: ±0.1%, 2: ±0.2%, 3: ±0.3%, 5: ±0.5%, D: DTMF,

Z: Others

❼ Built-in Load capacitance

1: 5pF, 3: 15pF, 4: 22pF, 5: 30pF, 6: 47pF

❽ Individual Specification

With standard products, "

❽ Individual Specification" is

omitted, and "

❾ Package Specification Code" is carried up.

❾ Packaging

–B0: Bulk,

–A0: Radial Taping H0=18mm Ammo Pack (Standard)

∗ 16.00−32.99MHz : 3.5

(Ex.)

❶

❷

❸

4M00

❹

❺

❻

❼

❽

-A0

❾

P17E.pdf

2012.10.31
