EE-SY671/672

4

Safety Precautions

Refer to Warranty and Limitations of Liability.

This product is not designed or rated for ensuring

safety of persons either directly or indirectly.

Do not use it for such purposes.

Make sure that this product is used within the rated ambient

environment conditions.

● Wiring

Soldering

• When direct soldering to the terminal, use the following guidelines.

Soldering Conditions

• The terminal base uses a polycarbonate resin, which could be

deformed by excessive soldering heat, resulting in damage to the

product’s functionality.

Cable Extension

• When extending the cable, use an extension cable with conductors

must be less than 10 m.

● Installation

The photomicrosensor is built into the device being used and so is not

equipped to deal with interference from an external light source.

When using the sensor in an area exposed to an incandescent lamp,

install so as to minimize the effects of external light sources.

● Sensitivity Adjustment

Use the special screwdriver (sold together) for sensitivity

adjustment.

• When an excessive force is applied to sensitivity adjuster, it may be

damaged.

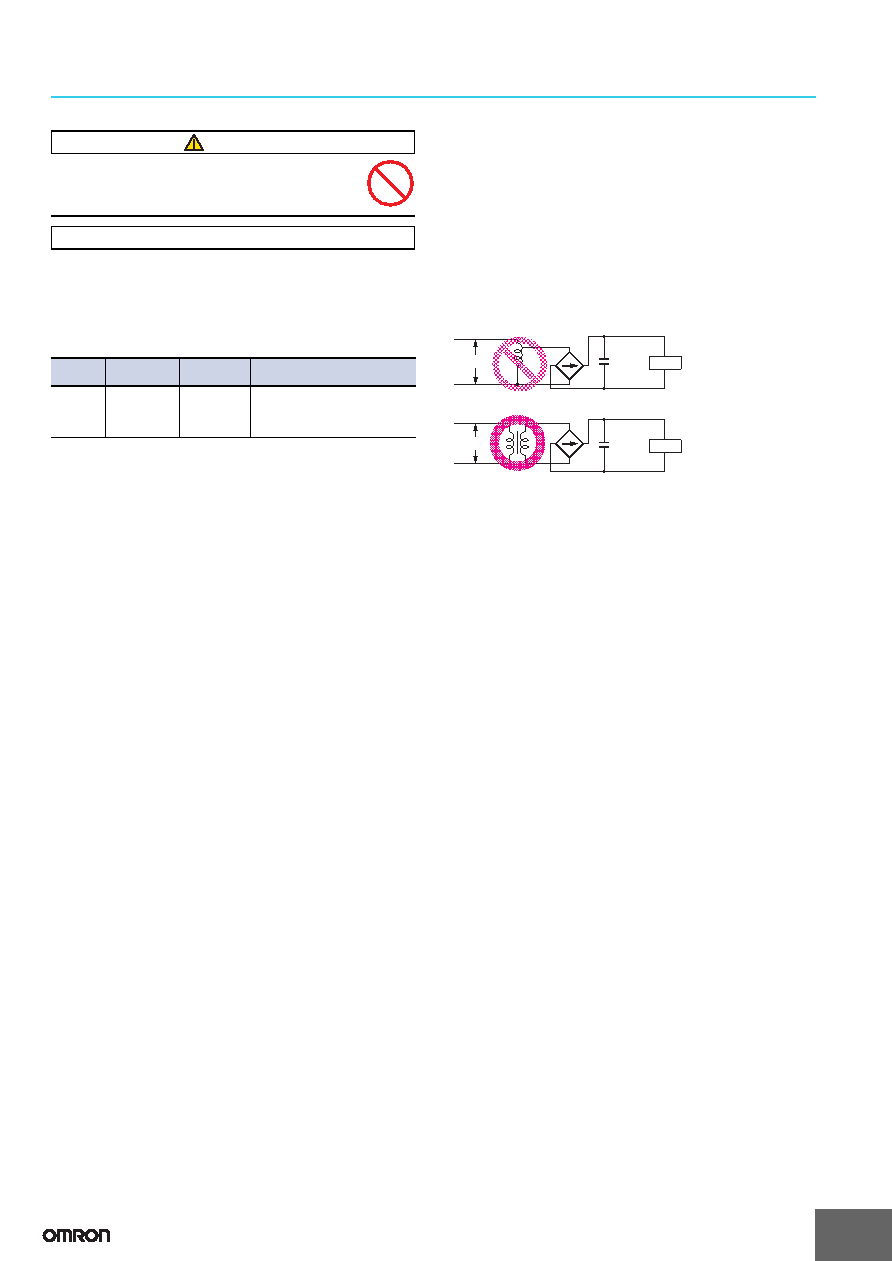

• The shaft of the sensitivity adjuster is charged. Connect a DC

power supply incorporating an insulated transformer to the

photomicrosensor. Do not connect a DC power supply

incorporating an autotransformer or the user may receive an

electric shock when adjusting the sensitivity.

WARNING

Precautions for Correct Use

Item

Temperature

Permissible

time

Remarks

Soldering

iron

350°C

max.

3 s max.

The portion between the base of

the terminals and the position

1.5 mm from the terminal base

must not be soldered.

Power

source

Power

source

+

−

Sensor

Autotransformer

+

−

Sensor

Insulated transformer
