ADP1655
Rev. 0 | Page 15 of 24
STATE TRANSITIONS
When the ADP1655 is in flash mode, the TX_MASK pin can
be used to reduce the battery load. The device remains in flash
mode, but the LED driver output current is reduced to the assist
light level. In Figure 34, if the flash was triggered by the strobe
pin in level-sensitive mode, a timeout triggers a timeout fault,
as defined in the Safety Features section.
EXTERNAL
TORCH
FLASH
STANDBY
I2C/EN = 1
ASSIST
LIGHT
OUTPUT OFF
TIMEOUT
OUTPUT ON
STROBE = 1
OUTPUT ON
STROBE DISABLED
MODE = FLASH
MODE = ASSIST LIGHT
STROBE = 1
TX_MASK = 0
STROBE DISABLED
MODE = FLASH
TX_MASK = 0
OUTPUT ON
MODE = ASSIST LIGHT
TORCH NOT
ALLOWED
TORCH = 0
TORCH ALLOWED
MODE = TORCH
OUTPUT ON
STROBE = 1
OUTPUT ON
STROBE DISABLED
MODE = FLASH
OUTPUT OFF
TX_MASK ENABLED
TX_MASK = 1
EN1 = 0
EN2 = 1

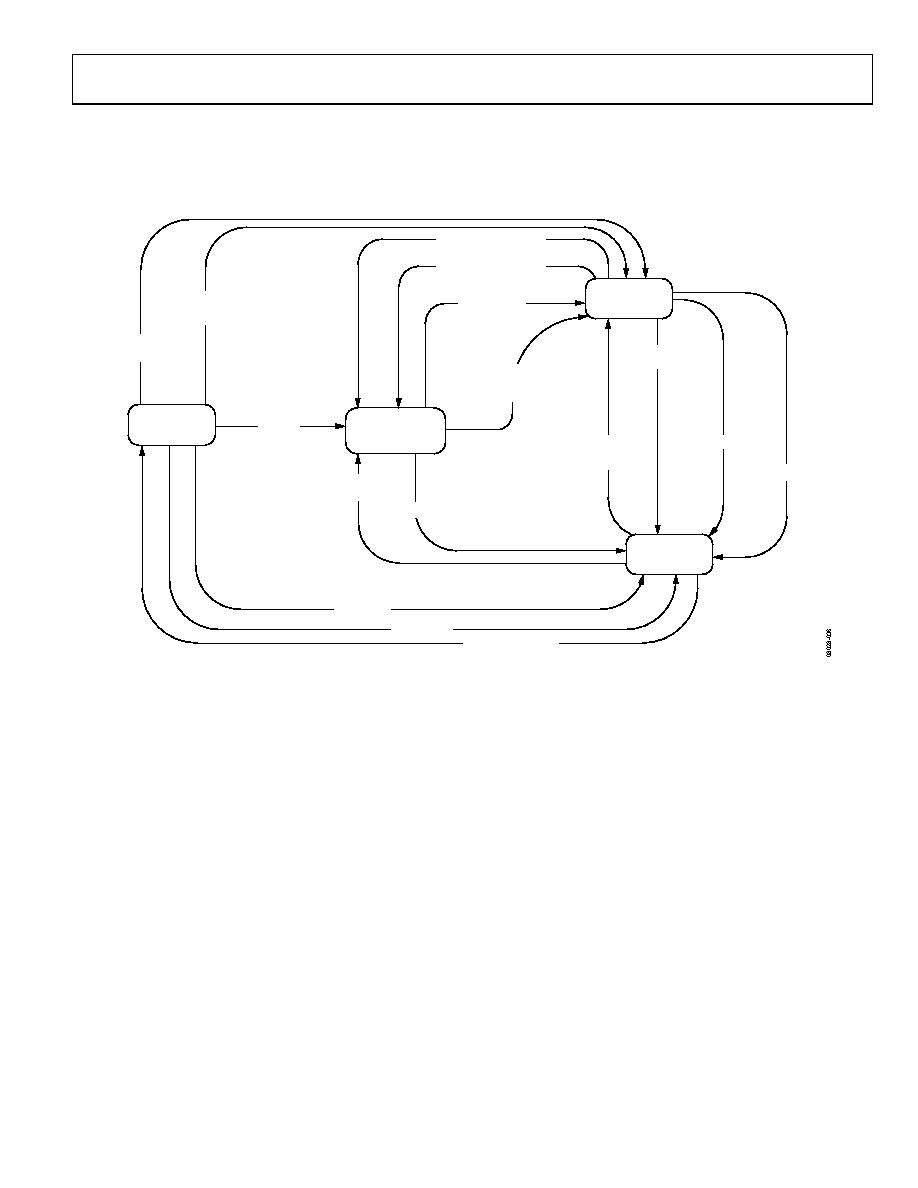

Figure 34. I2C Interface Mode: State Transitions
