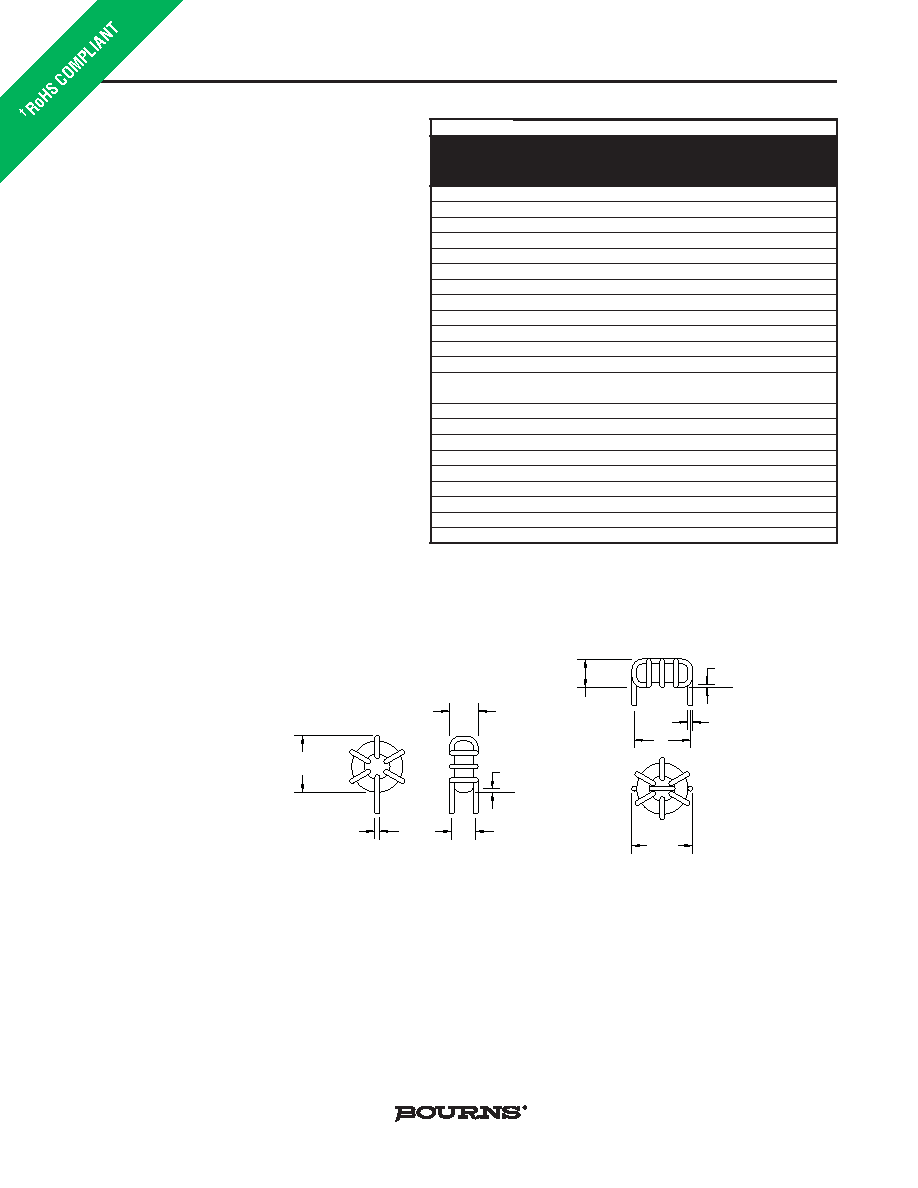

2000-R3-RC datasheet(1/1 Pages) BOURNS

tên linh kiện	2000-R3-RC

Giải thích chi tiết về linh kiện	Low radiation High operation frequency

PDF	1 Pages

Scroll/Zoom	100%

nhà sản xuất	BOURNS [Bourns Electronic Solutions]

Trang chủ	http://www.bourns.com

Logo

1 / 1 page

Tel. (877) 426-8767 • Fax (951) 781-5006

www.bourns.com

23.1

High Current Toroid Inductors

Special Features

• Low radiation

• Low core loss

• High operation frequency

• High current capacity

• Low core saturation

• Horizontal or vertical mount

• Operating temperature: -55 to +105 °C

Typical Applications

• High current, low voltage converters

• High-speed computers

• Video game machines

• Output chokes

• EMI ﬁlters

Notes

* Rated current to cause 40 °C temperature rise.

** Insert “-H” or “-V” for mounting style before “-RC”.

Example: 2000-390-V-RC

2000 Series

Part

Number

L (µH)

±20 %

@ 1 KHz

Idc*

(A)

L (µH)

±20 %

@ I rated

DCR

Ω

Max.

Dim.

A

Nom.

Dim.

B

Nom.

Dim.

C

Nom.

2000-R3-RC

0.3

28.5

0.24

0.0010

0.35

0.60

0.059

2000-R5-RC

0.5

24.7

0.41

0.0012

0.35

0.60

0.059

2000-R8-RC

0.8

22.1

0.62

0.0014

0.35

0.60

0.059

2000-1R2-RC

1.2

20.2

0.86

0.0017

0.35

0.60

0.059

2000-1R5-RC

1.5

18.7

1.14

0.0020

0.35

0.60

0.059

2000-2R0-RC

2.0

15.6

1.5

0.0027

0.34

0.59

0.053

2000-2R7-RC

2.7

14.7

1.9

0.0030

0.34

0.59

0.053

2000-3R3-RC

3.3

11.1

2.5

0.0053

0.33

0.58

0.042

2000-3R9-RC

3.9

10.5

3.0

0.0059

0.33

0.58

0.042

2000-4R7-RC

4.7

10.1

3.5

0.0064

0.33

0.58

0.042

2000-5R6-RC

5.6

9.7

4.0

0.0069

0.33

0.58

0.042

2000-6R8-RC

6.8

7.2

5.7

0.013

0.31

0.56

0.034

± 15 %

2000-8R2-RC

8.2

7.0

6.4

0.014

0.31

0.56

0.034

2000-100-RC

10

6.6

7.9

0.015

0.31

0.56

0.034

2000-120-RC

12

6.4

8.7

0.016

0.31

0.56

0.034

2000-150-RC

15

4.7

12.4

0.029

0.29

0.53

0.027

2000-180-RC

18

4.5

14.5

0.032

0.29

0.53

0.027

2000-220-RC

22

4.3

16.7

0.035

0.29

0.53

0.027

2000-270-RC

27

4.1

20.4

0.039

0.29

0.53

0.027

2000-330-RC

33

3.5

25.4

0.054

0.29

0.53

0.024

2000-390-RC

39

3.3

29.9

0.059

0.29

0.53

0.024

2000-470-RC

47

3.2

34.6

0.064

0.29

0.53

0.024

REV. 11/09

† RoHS Directive 2002/95/EC Jan 27 2003

including Annex.

Vertical

Dimensions: Inches

Horizontal

0.41 Max.

Max.

A

0.68

0.41 Max.

B

C

0.062 Max.

0.68 Max.

0.062 Max.

Mounting plane.

Leads tinned to within

0.062 above

mounting plane.

0.25 lead length.

Mounting plane.

Leads tinned to within

0.062 above

mounting plane.

0.25 lead length.
