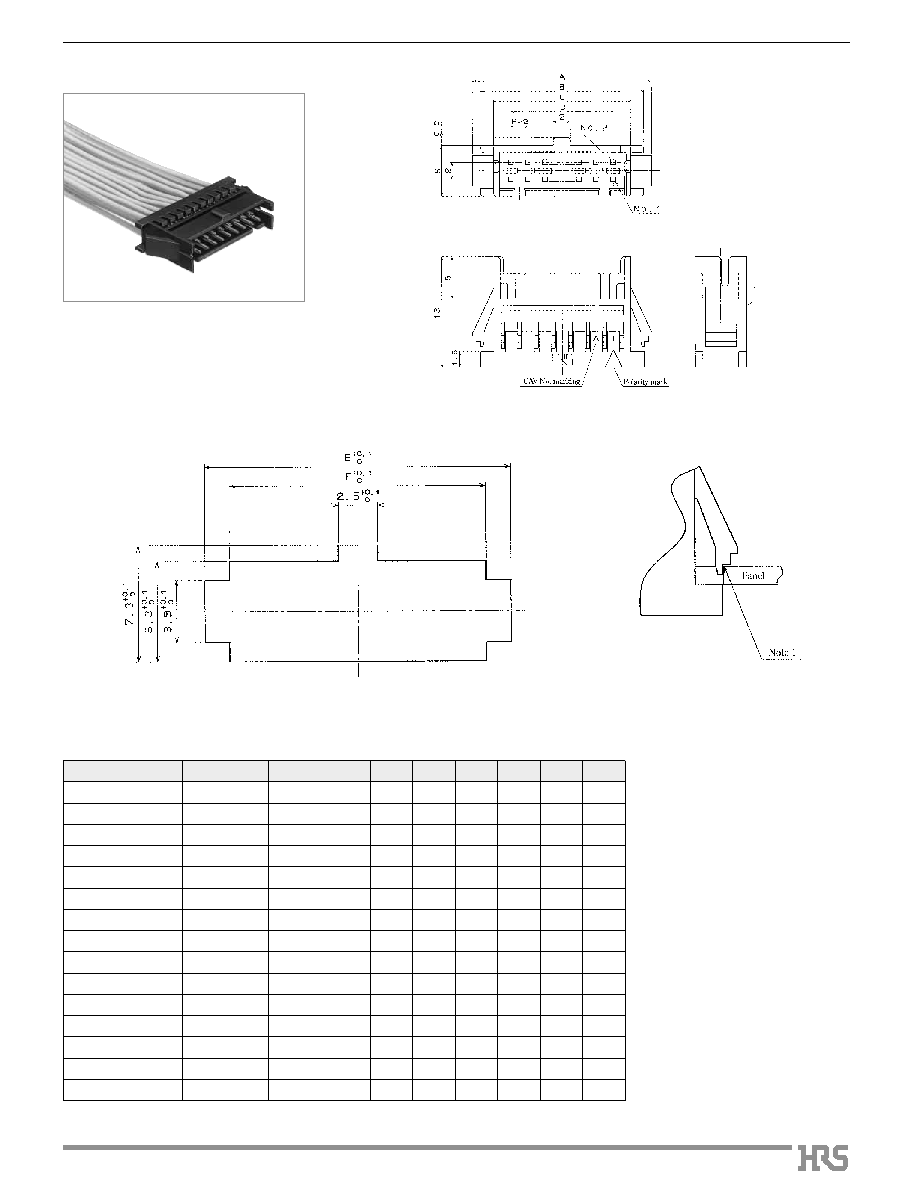

sIn-line Plug

sIn-line Plug Panel Cutouts

Note1: Please use the non-radius side for the panel hooking area.

Note2: Applicable panel thicknessing is 1.6 to 1.0mm (A slight deviation will occur for the thickness except for 1.6 and 1.2mm.)

Photo: Contact insertion status

Part Number

CL No.

Unit: mm

DF11- 4DEP-2C

DF11- 6DEP-2C

DF11- 8DEP-2C

DF11-10DEP-2C

DF11-12DEP-2C

DF11-14DEP-2C

DF11-16DEP-2C

DF11-18DEP-2C

DF11-20DEP-2C

DF11-22DEP-2C

DF11-24DEP-2C

DF11-26DEP-2C

DF11-28DEP-2C

DF11-30DEP-2C

DF11-32DEP-2C

543-0619-5

543-0620-4

543-0621-7

543-0622-0

543-0623-2

543-0624-5

543-0625-8

543-0626-0

543-0627-3

543-0628-6

543-0629-9

543-0630-8

543-0631-0

543-0632-3

543-0633-6

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

11.0

13.0

15.0

17.0

19.0

21.0

23.0

25.0

27.0

29.0

31.0

33.0

35.0

37.0

39.0

9.2

11.2

13.2

15.2

17.2

19.2

21.2

23.2

25.2

27.2

29.2

31.2

33.2

35.2

37.2

Number of Contacts

A

B

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

C

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

D

9.4

11.4

13.4

15.4

17.4

19.4

21.4

23.4

25.4

27.4

29.4

31.4

33.4

35.4

37.4

E

6.3

8.3

10.3

12.3

14.3

16.3

18.3

20.3

22.3

24.3

26.3

28.3

30.3

32.3

34.3

F

Note1: Delivered per bag unit (100 pcs.). Please order products per bag unit.

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
