ATS PART # ATS-424-EXL-R1

Features & Benefits

ATS Extrusion Profiles

*Image above is for illustration purposes only.

See chart below for actual data.

NoTES:

Thermal curve based on 76 mm length.

Thermal performance data are provided for reference only. Actual

performance may vary by application.

ATS reserves the right to update or change its products without notice to

improve the design or performance.

Contact ATS to learn about custom options available.

1)

2)

3)

4)

431.8 mm

188 mm

16.5 mm

4.9 mm

4 mm

NONE

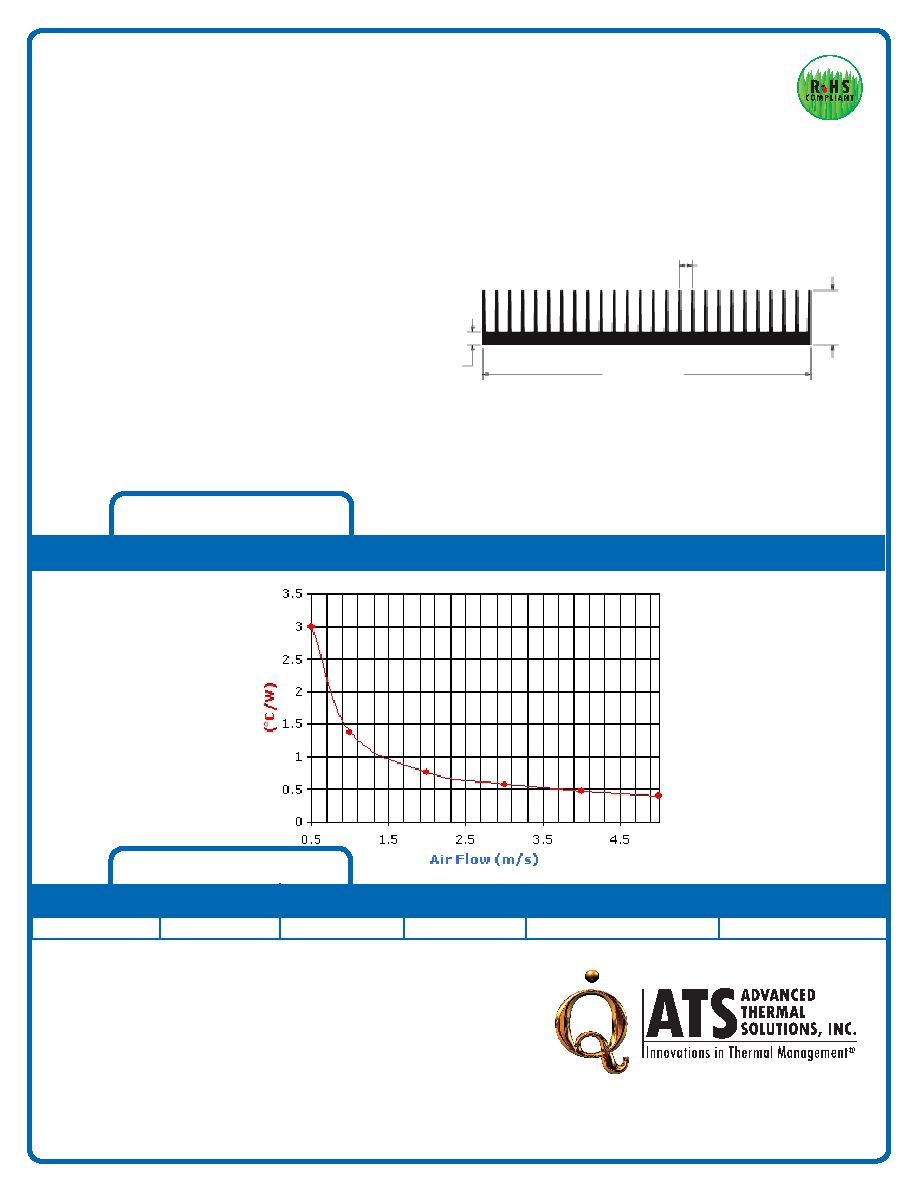

Thermal Performance

HEAT SINK THERMAL RESISTANCE

Aluminum extrusions are the most cost-

effective solution for the majority of

electronic cooling applications

This extrusion profile has 35 fins

Extrusion type is straight fin

»

»

»

»

Product Details

188

(3)

16.5

(0.65)

4

(0.16)

4.9

(0.19)

LENGTH

WIDTH

HEIGHT

FIN SPACING

BASE THICKNESS

FINISH
