TEC Polarity

Terminal Wires Options

TEC Polarity can be modified by request. The

specified polarity in this datasheet is typical.

It can be reversed in accordance to Customer

application requirements.

The wires are of tinned Copper, blank (not isolated)

by default. Various options for isolated wires are

available by request. The available solutions

include isolated wires, isolated color-coded wires,

flexible multicore wires and more.

Customized Au patterns on thermoelectric cooler

cold side are available by request. Selective Pre-

tinning over pattern is also available. Please,

contact RMT Ltd for additional information about

customized Au patterns requirements.

+

-

+

-

Additional Options

Thermoelectric Cooling Solutions

Standard TEC height can be modified without

performance changes by using ceramics of

different thickness. Standard thermoelectric cooler

height (specified in the datasheet) may be modified

in a range -0.5..+1.0mm for single-stage TEC by

request.

Customized Au Patterns

TEC Height modification

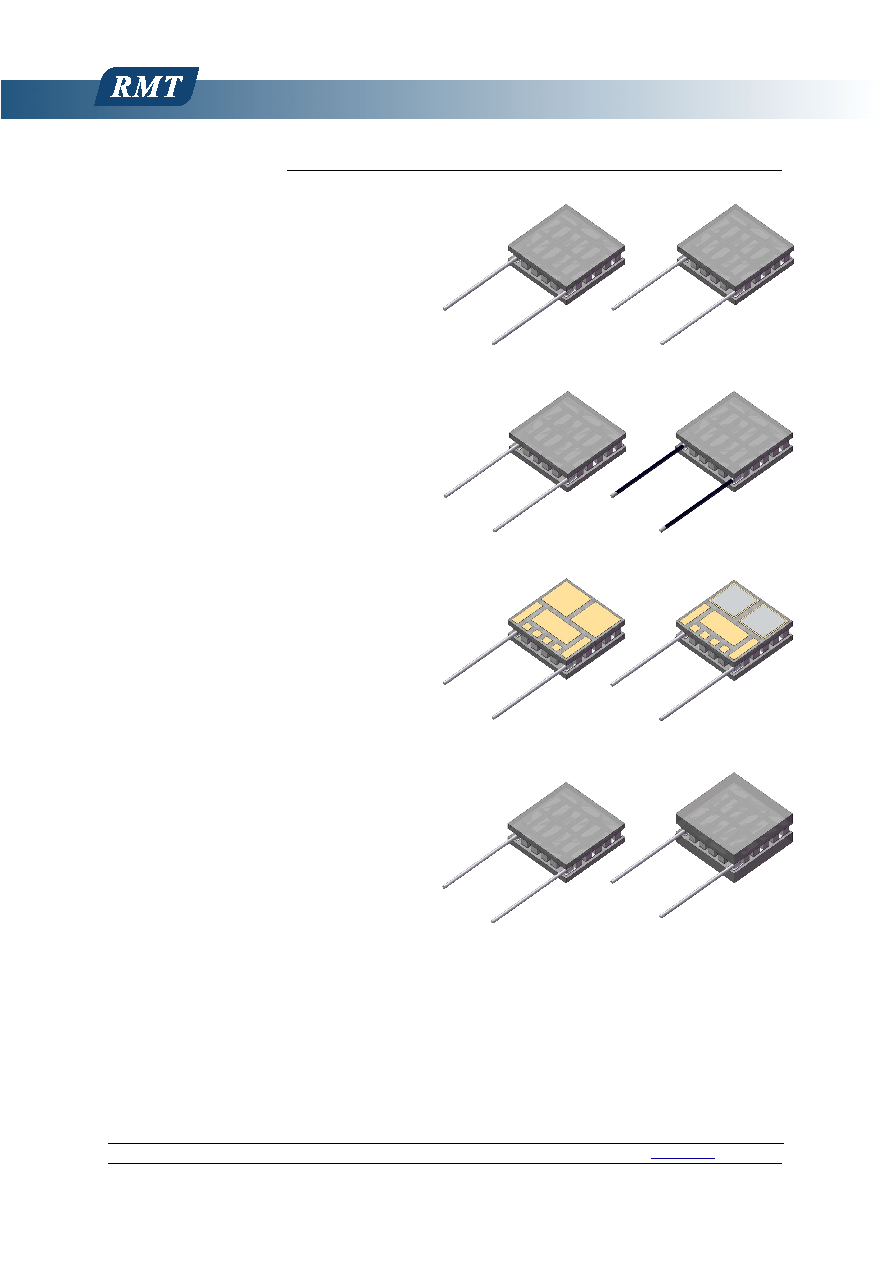

Standard polarity

Reversed polarity

Standard wires,

tinned Copper

Isolated wires

Customized Au pattern

on cold side

Selective pre-tinning

over pattern

Standard height

Modified height,

another ceramics

thickness
