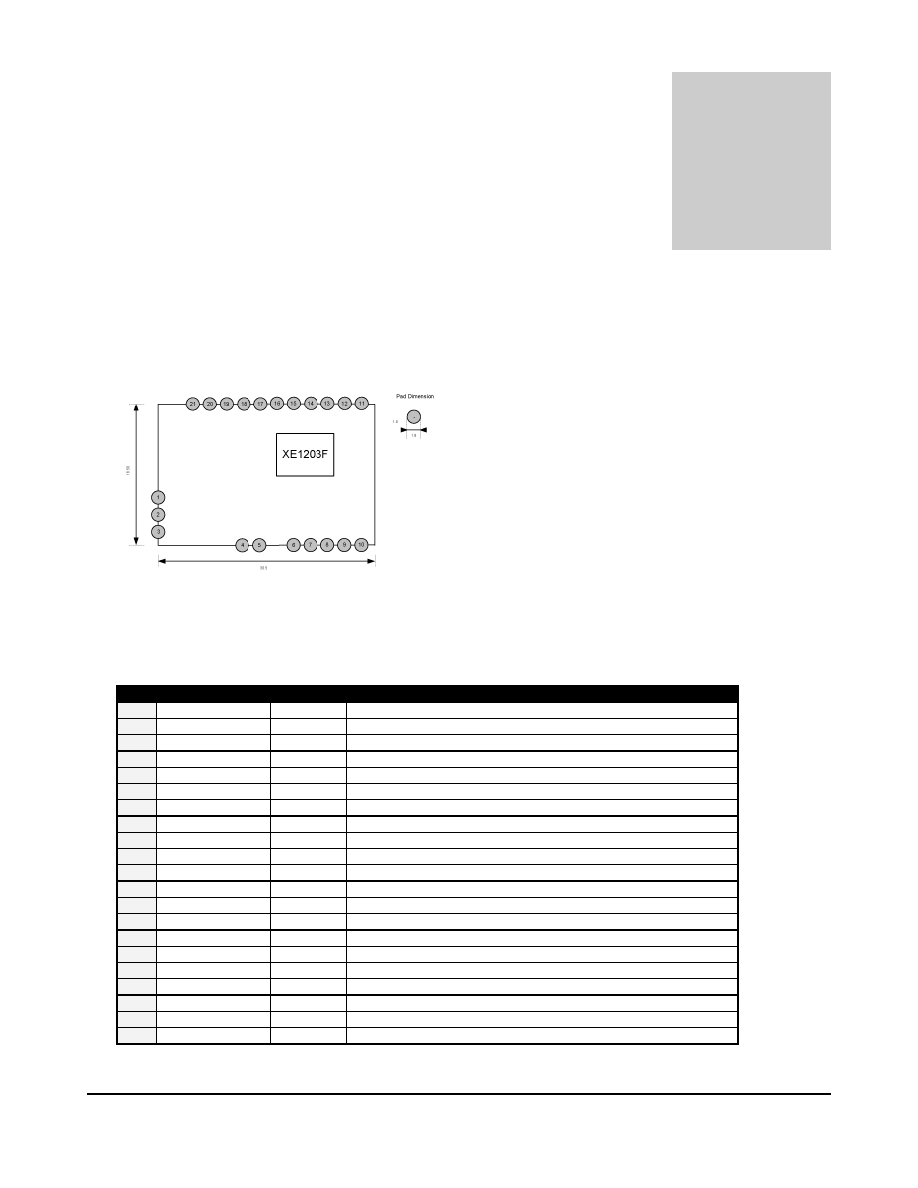

7 / 17 page ![]() WI.DP1203-XXX-R DATASHEET 6 2. Application Information 2.1. Pin-out Diagram Figure 1: Pin-out Diagram 2.2. Pin Description No. Name I/O Description 1 GND Ground 2 RF_IN/ OUT IN/ OUT RF Input/ Output Terminal 3 GND Ground 4 VDDP Supply Voltage/ Advised NC 5 VDDA Supply Voltage 6 GND Ground 7 VDD Supply Voltage 8 EN IN 3-wire interface communication enable signal 9 SWITCH IN/ OUT Operating mode selection 10 GND Ground 11 GND Ground 12 SO OUT Data output of the 3-wires interface 13 SI IN Data input of the 3-wires interface 14 SCK IN Input clock of the 3-wires interface 15 CLKOUT OUT Output clock at quartz frequency divided by 4, 8, 16 or 32 16 DCLK OUT Transmitter or Receiver clock 17 DATA IN/ OUT Transmitter input data or Receiver output data 18 DATAIN IN Transmitter input data 19 PATTERN OUT Output of the pattern recognition block 20 RX IN Antenna switch RX select 21 TX IN Antenna switch TX select Table 1, Module Pin Descriptions Chapter 2 |
|
|
