2.3

Midspan Accessories

2.3.1 Rack Mounting Options/AC Power Cord

All multiport midspans may be rack mounted on a 19”1U rack in either single or double unit mounts

(Small footprint multiport midspans). To position the Midspan on the rack; arrange the mounting bracket

to the corresponding screw holes on the Midspan. Keep the screw area visible to insert screws, and

then tighten the screws. Screws and brackets will be included in the package. For replacement parts

contact Phihong for part number POE125U-ACCY01-R.

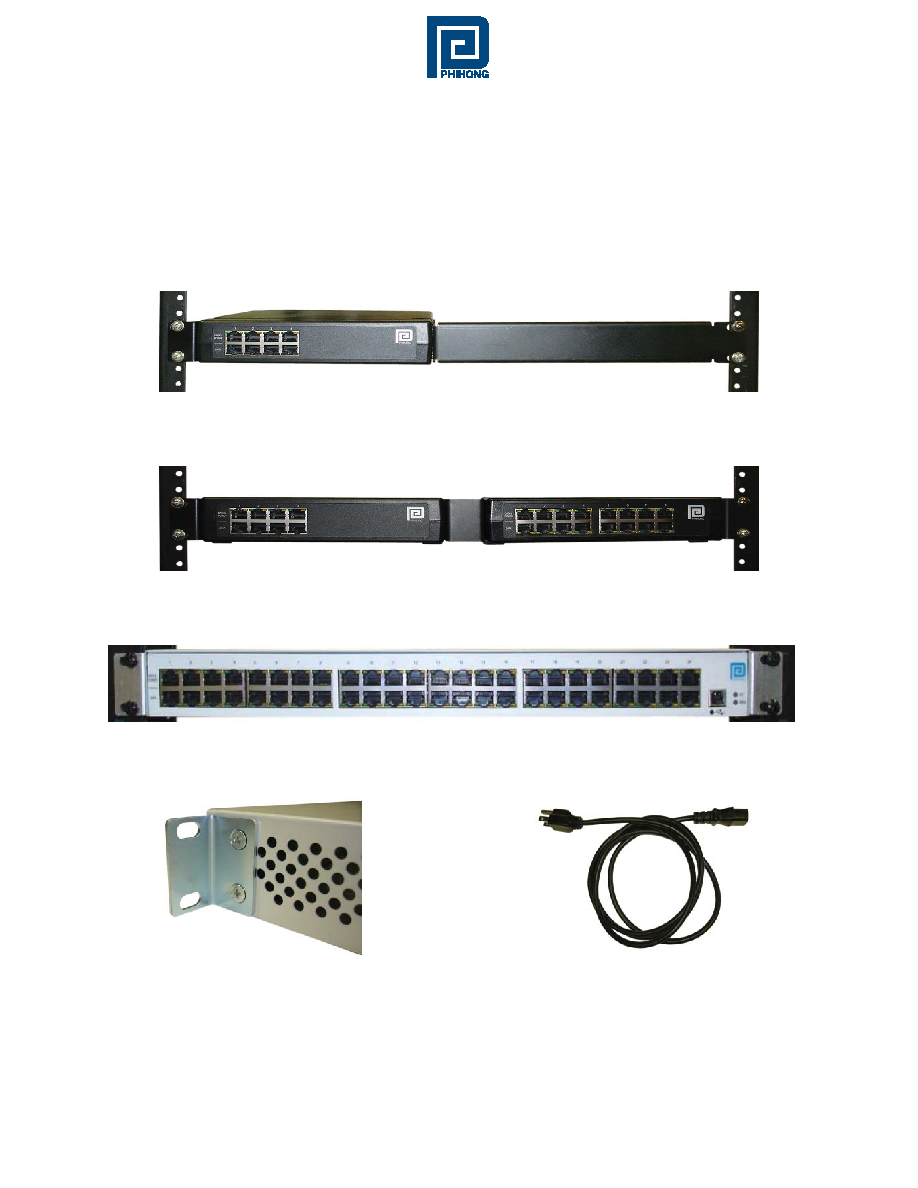

Figure 13: Single Unit Rack Mount

Figure 14: Two Units in Side by Side Rack Mounting

Figure 15: Rack Mounted 19” Midspan

Figure 16: Mounting Bracket

Figure 17: AC Power Cord*

The AC power cable is connected to the

AC power connector located in the rear

side of the Midspan and the power outlet.

*AC Power Cord may be ordered seperately.
