CHARACTERIZATION SETUPS

Figure 49 and Figure 50 show characterization bench setups

used to characterize the ADRF6701. The setup shown in

Figure 49 was used to do most of the testing. An automated

VEE program was used to control equipment over the IEEE

bus. The setup was used to measure SSB, OIP2, OIP3, OP1dB,

LO, and USB NULL.

For phase noise and reference spurs measurements, see the

phase noise setup on Figure 50. Phase noise was measured on

LO and modulator output.

PC CONTROL

CONNECTED TO SYSTEM VIA USB TO GPIB ADAPTER

AEROFLEX IFR 3416 FREQUENCY GENERATOR

(WITH BASEBAND OUTPUTS AT 1MHz)

34980A

WITH 34950 AND (×2) 34921 MODULES

ROHDE AND SCHWARTZ SMT 06 SIGNAL GENERATOR

(REFIN)

AGILENT E4440A PSA SPECTRUM ANALYZER

ADRF670x TEST RACK ASSEMBLY (INTERNAL VCO CONFIGURATION)

ALL INSTRUMENTS ARE CONNECTED IN DAISY CHAIN

FASHION VIA GBIP CABLE UNLESS OTHERWISE NOTED.

+5V FOR

VPOS TO 34950

MODULE

BASEBAND INPUTS AT 1MHz

9-PIN DSUB

CONNECTOR

(REGISTER

PROGRAMMING)

10-PIN CONNECTOR

DC HEADER

RF OUT

REF IN

E3631A POWER SUPPLY

(+6V ADJUSTED TO 5V)

KEITHLEY S46 SWITCH SYSTEM #1

(FOR RFOUT AND REFIN ON 6 SITES)

PROGRAMMING

AND DC CABLE

(×6 FOR MULTISITE)

OUTPUT (REF)

INPUT

(RFOUT)

KEITHLEY S46 SWITCH SYSTEM #2

(FOR BASEBAND INPUTS ON 6 SITES)

34401A DMM (FOR SUPPLY

CURRENT MEASUREMENT)

BASEBAND OUTPUTS

(IN, IP, QN, QP)

6dB

ADRF6701

EVAL BOARD

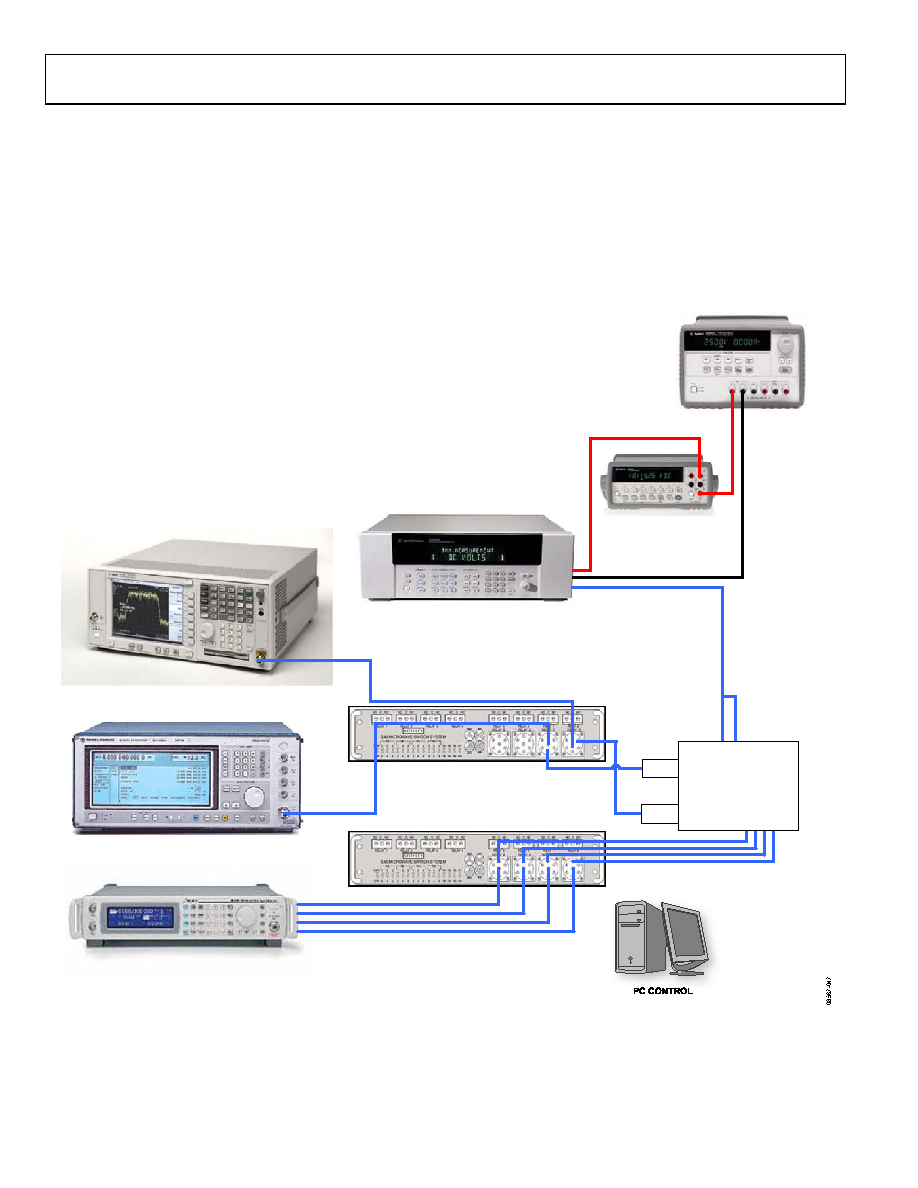

Figure 49. General Characterization Setup
