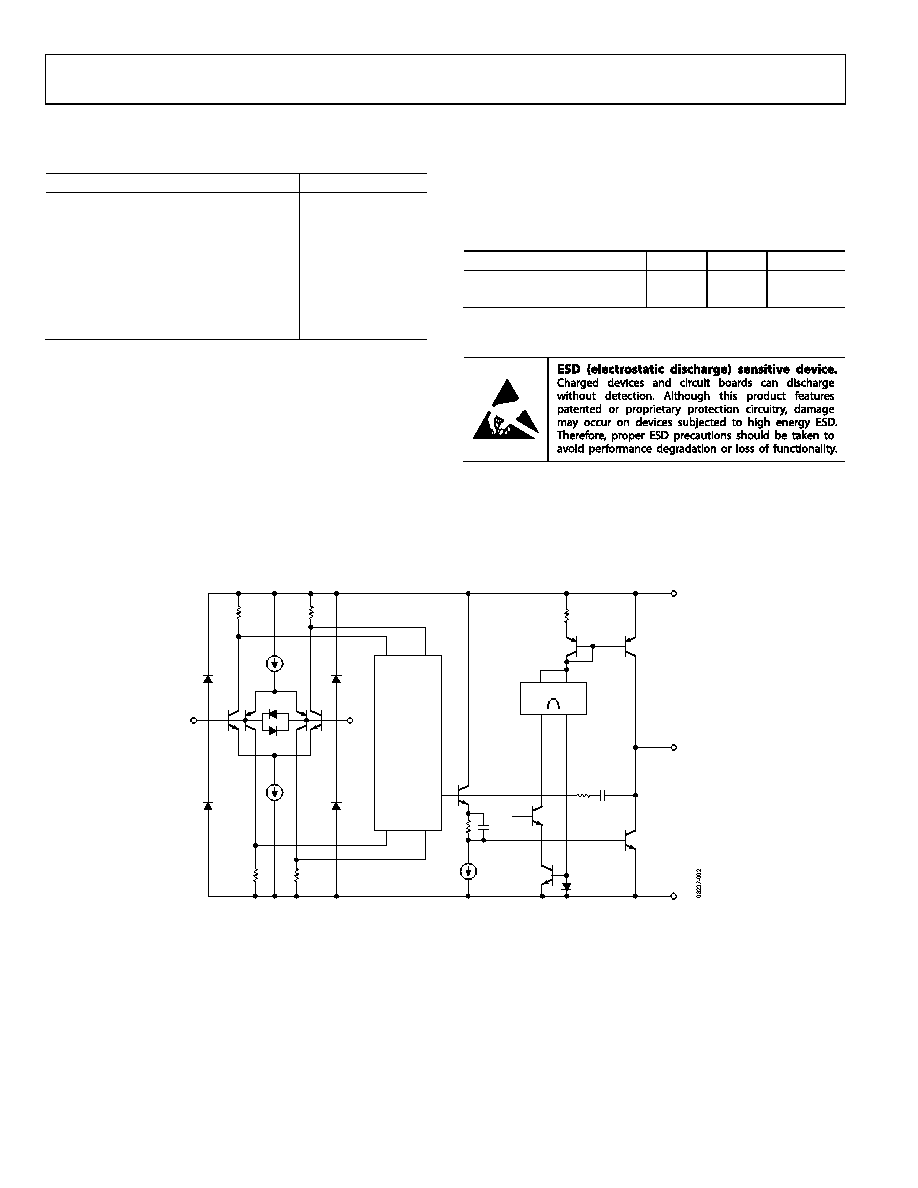

ADA4084-2ARMZ-R7 datasheet(6/24 Pages) AD

6 / 24 page

ADA4084-2

Data Sheet

Rev. A | Page 6 of 24

ABSOLUTE MAXIMUM RATINGS

Table 5.

Parameter

Rating

Supply Voltage

±18 V

Input Voltage

V− ≤ VIN ≤ V+

Differential Input Voltage1

±0.6 V

Output Short-Circuit Duration to GND

Indefinite

Storage Temperature Range

−65°C to +150°C

Operating Temperature Range

−40°C to +125°C

Junction Temperature Range

−65°C to +150°C

Lead Temperature (Soldering 60 sec)

300°C

For input differential voltages greater than 0.6 V, the input current should be

limited to less than 5 mA to prevent degradation or destruction of the input

devices.

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.

THERMAL RESISTANCE

θJA is specified for the device soldered on a 4-layer JEDEC

standard printed circuit board (PCB) with zero airflow.

Table 6. Thermal Resistance

Package Type

θJA

θJC

Unit

8-Lead SOIC

121

°C/W

8-Lead MSOP

142

°C/W

ESD CAUTION

D101

D100

Q24

Q21

D20

Q13

Q18

Q19

Q23

FOLDED

CASCADE

VEE

VOUT

VCC

VBIAS

MIRROR

R7 C2

Figure 2. Simplified Schematic
