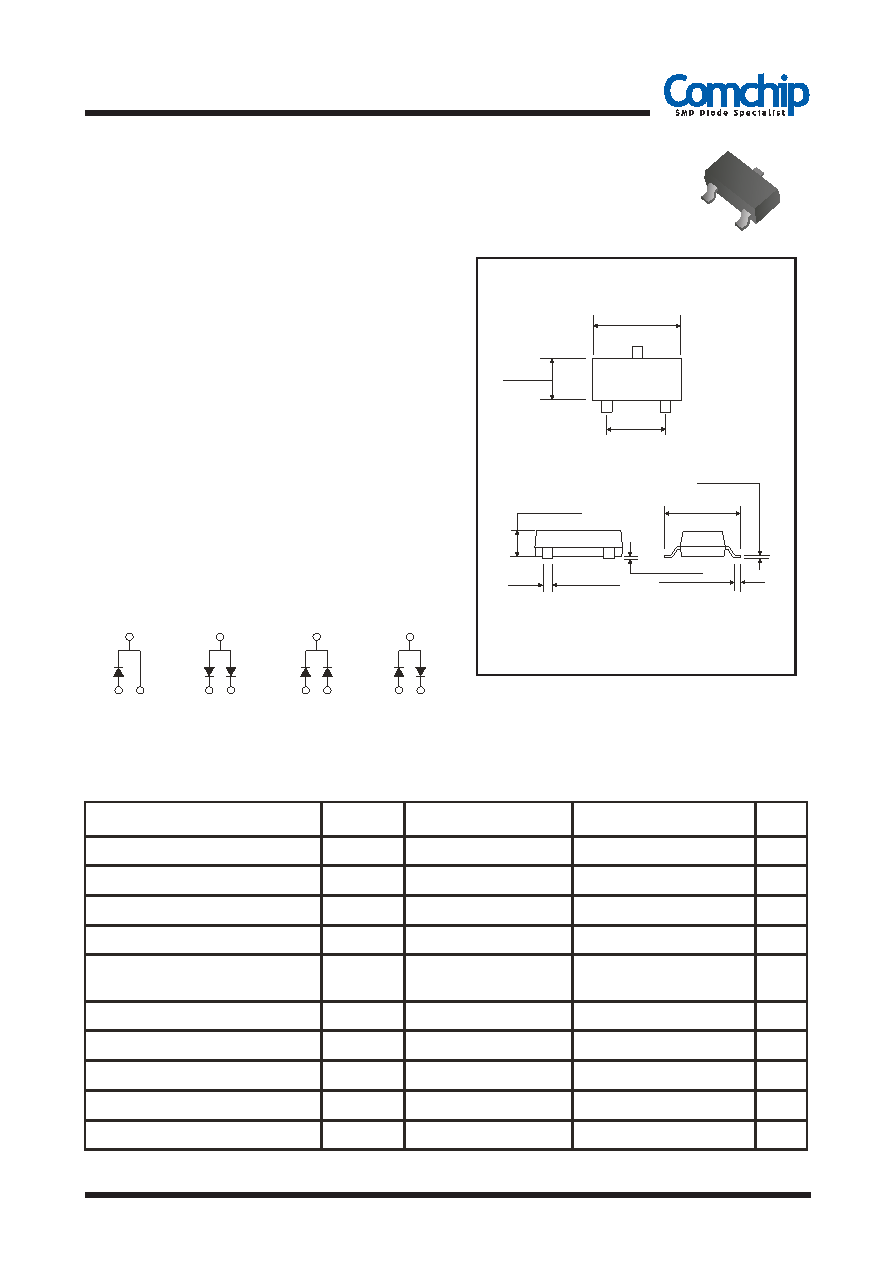

Small Signal Switching Diodes

Reverse Voltage: 250 Volts

Forward Current: 200 mA

RoHS Device

Page 1

REV:B

Features

-Design for mounting on small surface.

-High speed switching.

-High mounting capability, strong surge

withstand, high reliability.

Mechanical data

-Case: SOT-23, molded plastic.

-Terminals: solderable per MIL-STD-750,

method 2026.

-Approx. weight: 0.008 grams

Circuit diagram

CDST-21/A/C/S-G

Maximum Ratings and Electrical Characteristics

Dimensions in inches and (millimeter)

QW-B0015

Comchip Technology CO., LTD.

Repetitive peak reverse voltage

Reverse voltage

Average forward current

Power dissipation

Maximum forward voltage

Maximum reverse current

Maximum reverse recovery time

Maximum diode capacitance

Maximum junction temperature

Storage temperature

Units

Symbol

Parameter

VRRM

VR

IF

PD

VF

IR

Trr

CJ

TJ

TSTG

1

2

3

Conditions

Value

@IF=100mA

@IF=200mA

@VR=200V

IF=10mA, RL=100Ω

VR=0V, f=1.0MHz

250

200

225

1.0

1.25

1

50

5

150

-55 to +150

V

mA

mW

V

μA

nS

pF

OC

CDST-21-G

CDST-21A-G

CDST-21C-G

CDST-21S-G

1

2

3

1

2

3

1

2

3

SOT-23

3

1

2

0.119(3.00)

0.110(2.80)

0.056(1.40)

0.047(1.20)

0.083(2.10)

0.066(1.70)

0.044(1.10)

0.035(0.90)

0.020(0.50)

0.013(0.35)

0.006(0.15)

0.002(0.05)

0.103(2.60)

0.086(2.20)

0.006(0.15) max

0.007(0.20) min

OC

(at Ta=25°C unless otherwise noted)
