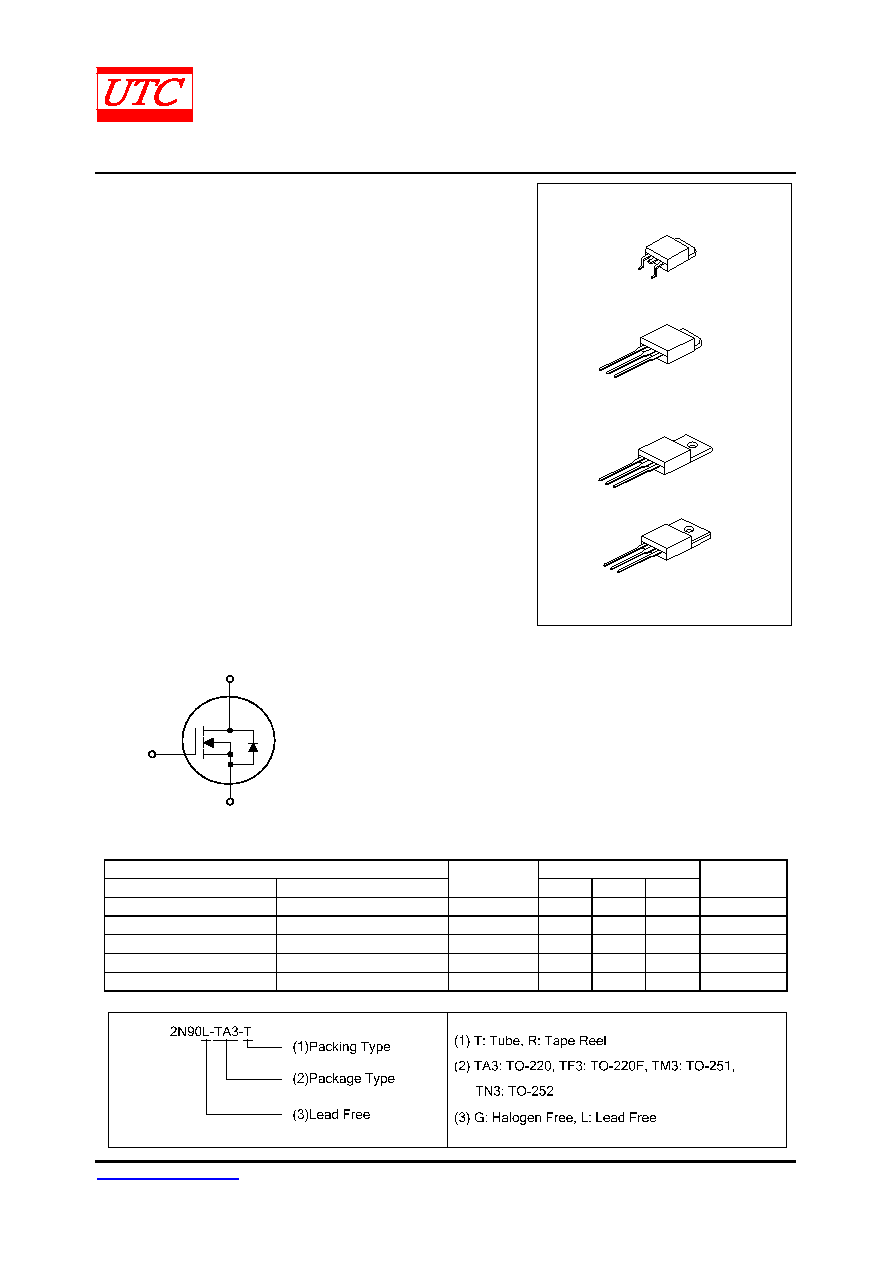

UNISONIC TECHNOLOGIES CO., LTD

2N90

Preliminary

Power MOSFET

www.unisonic.com.tw

1 of 6

Copyright © 2011 Unisonic Technologies Co., Ltd

QW-R502-478.c

2A, 900V N-CHANNEL

POWER MOSFET

DESCRIPTION

The UTC 2N90 is an N-channel mode power MOSFET using

UTC’s advanced technology to provide costumers with planar stripe

and DMOS technology. This technology specialized in allowing a

minimum on-state resistance and superior switching performance. It

also can withstand high energy pulse in the avalanche and

commutation mode.

The UTC 2N90 is universally applied in high efficiency switch

mode power supply.

FEATURES

* High switching speed

* Typically 12nC low gate charge

* Improved dv/dt capability

* 100% avalanche tested

SYMBOL

1.Gate

3.Source

2.Drain

TO-220

1

1

TO-220F

TO-252

TO-251

1

1

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

2N90L-TA3-T

2N90G-TA3-T

TO-220

G

D

S

Tube

2N90L-TF3-T

2N90G-TF3-T

TO-220F

G

D

S

Tube

2N90L-TM3-T

2N90G-TM3-T

TO-251

G

D

S

Tube

2N90L-TN3-R

2N90G-TN3-R

TO-252

G

D

S

Tape Reel

2N90L-TN3-T

2N90G-TN3-T

TO-252

G

D

S

Tube

Note: Pin Assignment: G: Gate D: Drain

S: Source
