Device Number : DLE-734-R15

Prepared date:2004/07/30

Prepared by: M.T CHANG

7343-2USRC/S1060

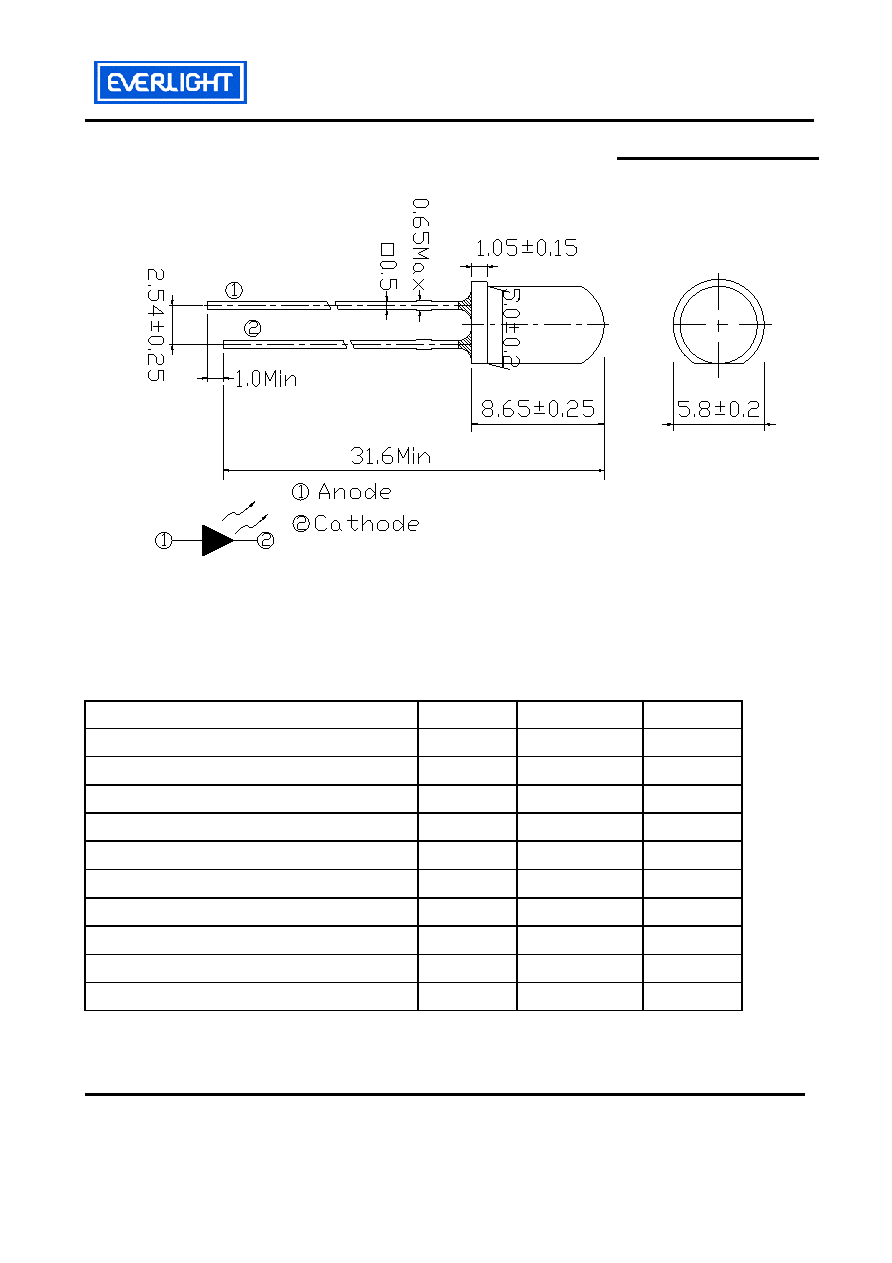

Package Dimensions

Notes:

․All dimensions are in millimeters, tolerance is 0.25mm except being specified.

․Lead spacing is measured where the lead emerges from the package.

․Protruded resin under flange is 1.5mm Max LED.

Absolute Maximum Ratings (Ta=25℃)

Parameter

Symbol

Rating

Units

Forward Current

Pulse Forward Current(Duty 1/10 @ 1kHz)

IFP

100

Operating Temperature

Topr

-40 ~ +85

℃

Storage Temperature

Tstg

-40 ~ +100

℃

LED Junction Temperature

Tjmax

125

℃

Electrostatic Discharge

ESD

2000

Soldering Temperature

Tsol

260 ±5

℃

Through-the-Wave Preheat Temperature

----

145

℃

Power Dissipation

100

Reverse Voltage

Notes: *1:IFP Conditions--Pulse Width≦10msec and Duty≦1/10.

*2:Soldering time≦5 seconds.
