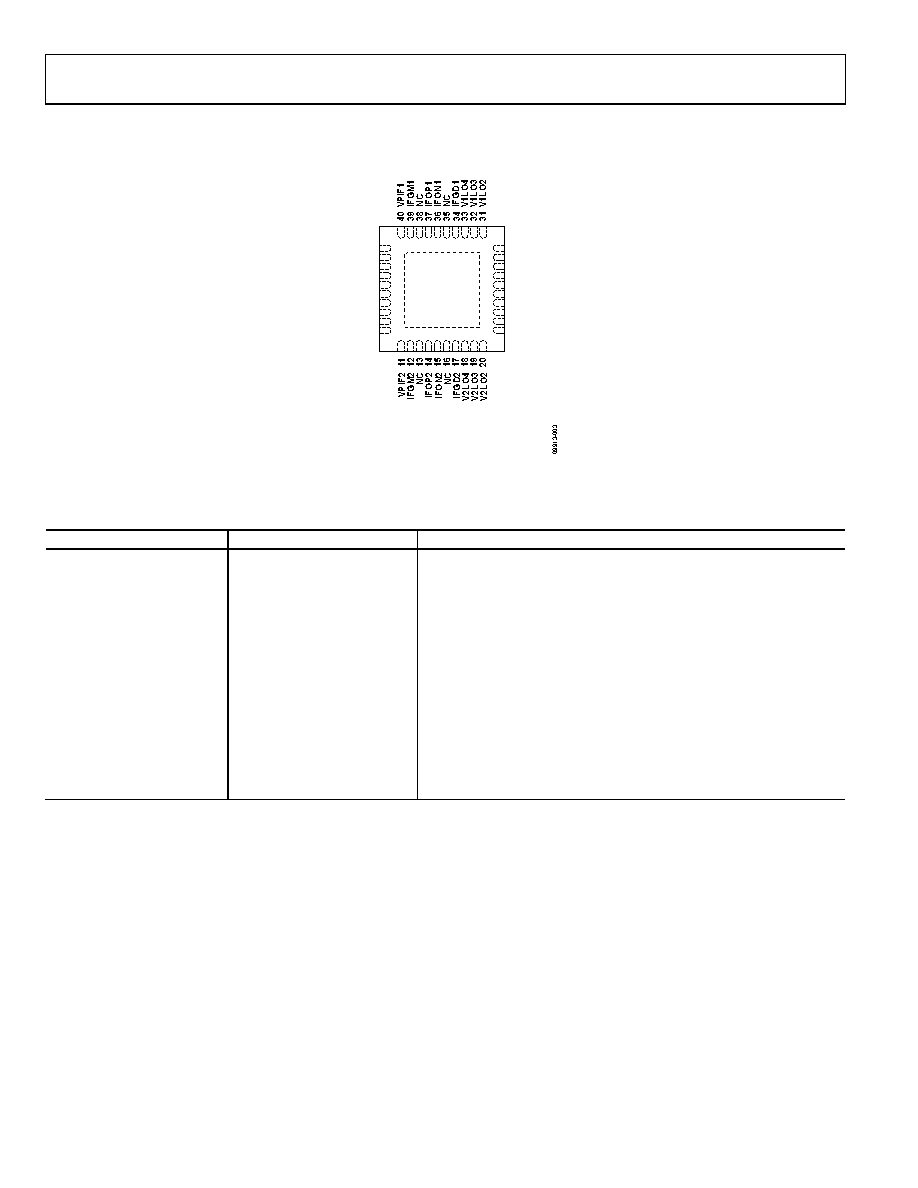

background image
ADL5812
Rev. 0 | Page 6 of 28
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. NC = NO CONNECT. CAN BE GROUNDED.
2. EXPOSED PAD MUST BE CONNECTED
TO GROUND.
RF1
RFCT1
NC
NC
NC
NC
NC
NC
RFCT2
RF2
V1LO1
NC
NC
NC
LOIP
LOIN
LE
DATA
CLK
V2LO1
1
2
3
4
5
6
7
8
9
10
23
24
25
26
27
28
29
30
22
21
ADL5812
TOP VIEW
(Not to Scale)
Figure 3. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
1, 10
RF1, RF2
RF Input. Should be ac-coupled.
2, 9
RFCT1, RFCT2
RF Balun Center Tap (AC Ground).
3 to 8, 13, 16, 27 to 29, 35, 38
NC
No Connect. Can be grounded.
11, 40
VPIF1, VPIF2
Supply Voltage for IF Amplifier.
12, 39
IFGM1, IFGM2
IF Amplifier Bias Control.
14, 15, 36, 37
IFOP1, IFOP2, IFON1, IFON2
Differential Open-Collector IF Outputs. Should be pulled up to VCC via
external inductors.
17, 34
IFGD1, IFGD2
Supply Return for IF Amplifier. Must be grounded.
18 to 21, 30 to 33
V1LO1, V1LO2, V1LO3, V1LO4,
V2LO1, V2LO2, V2LO3, V2LO4
Positive Supply Voltages for LO Amplifiers.
22, 23, 24
CLK, DATA, LE
Serial Port Interface Control.
25
LOIN
Ground Return for LO Input. Must be ac coupled.
26
LOIP
LO Input. Should be ac-coupled.
EPAD
Exposed pad must be connected to ground.
