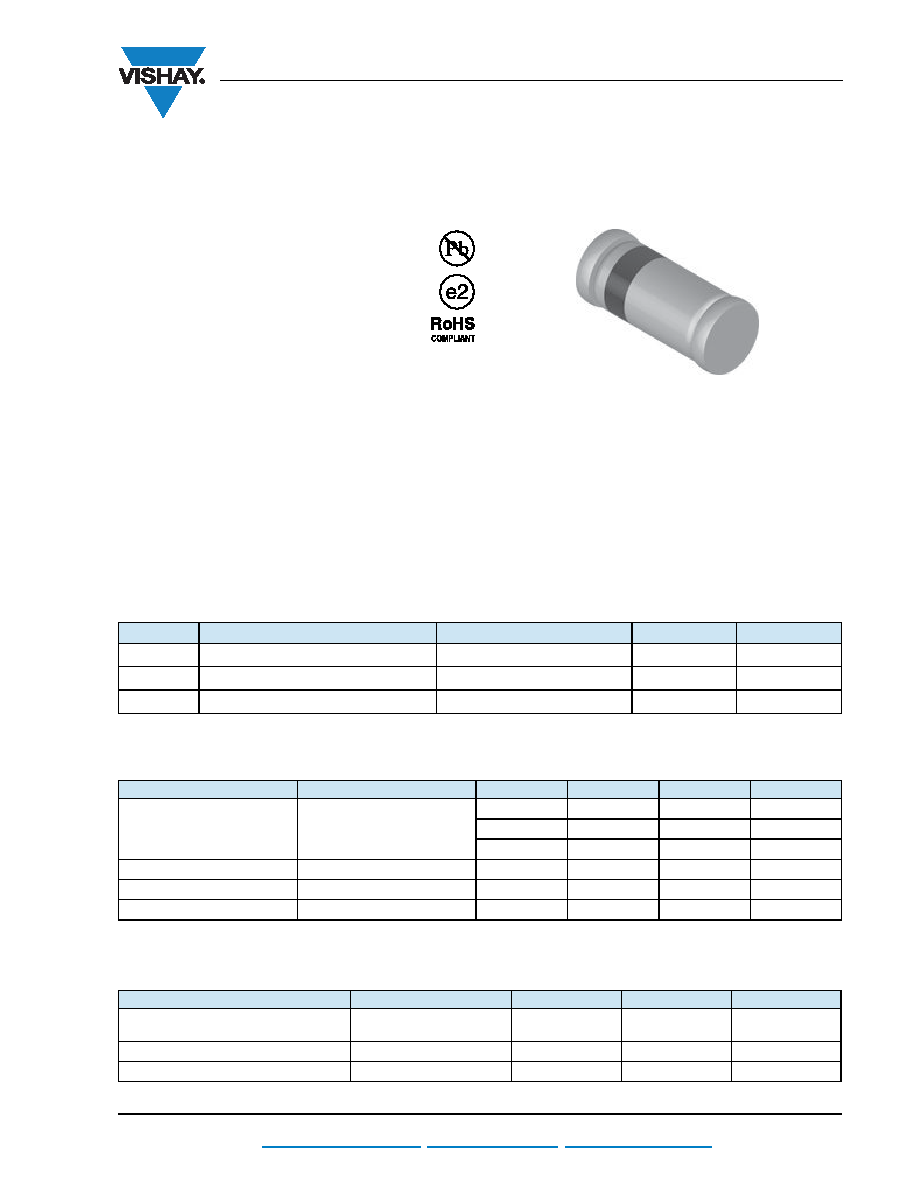

LL103A, LL103B, LL103C

Document Number 85630

Rev. 1.5, 05-Aug-10

Vishay Semiconductors

www.vishay.com

1

94 9371

For technical questions within your region, please contact one of the following:

Small Signal Schottky Diodes

Features

• Integrated protection ring against static

discharge

• Low capacitance

• Low leakage current

• Low forward voltage drop

• AEC-Q101 qualified

• Compliant to RoHS directive 2002/95/EC and in

accordance to WEEE 2002/96/EC

Applications

• HF-Detector

• Protection circuit

• Small battery charger

• AC-DC/DC-DC converters

Mechanical Data

Case: MiniMELF SOD-80

Weight: approx. 31 mg

Cathode band color: black

Packaging codes/options:

GS18/10 k per 13" reel (8 mm tape), 10 k/box

GS08/2.5 k per 7" reel (8 mm tape), 12.5 k/box

Parts Table

Absolute Maximum Ratings

Thermal Characteristics

Part

Type differentiation

Ordering code

Type Marking

Remarks

LL103A

LL103A-GS08 or LL103A-GS18

-

Tape and Reel

LL103B

LL103B-GS08 or LL103B-GS18

-

Tape and Reel

LL103C

LL103C-GS08 or LL103C-GS18

-

Tape and Reel

Parameter

Test condition

Part

Symbol

Value

Unit

Reverse voltage

LL103A

40

V

LL103B

30

V

LL103C

20

V

Forward continuous current

200

mA

Peak forward surge current

15

A

Power dissipation

400

mW

Parameter

Test condition

Symbol

Value

Unit

Thermal resistance junction to ambient air

On PC board

50 mm x 50 mm x 1.6 mm

250

K/W

Junction temperature

125

°C

Storage temperature range

- 65 to + 150

°C
