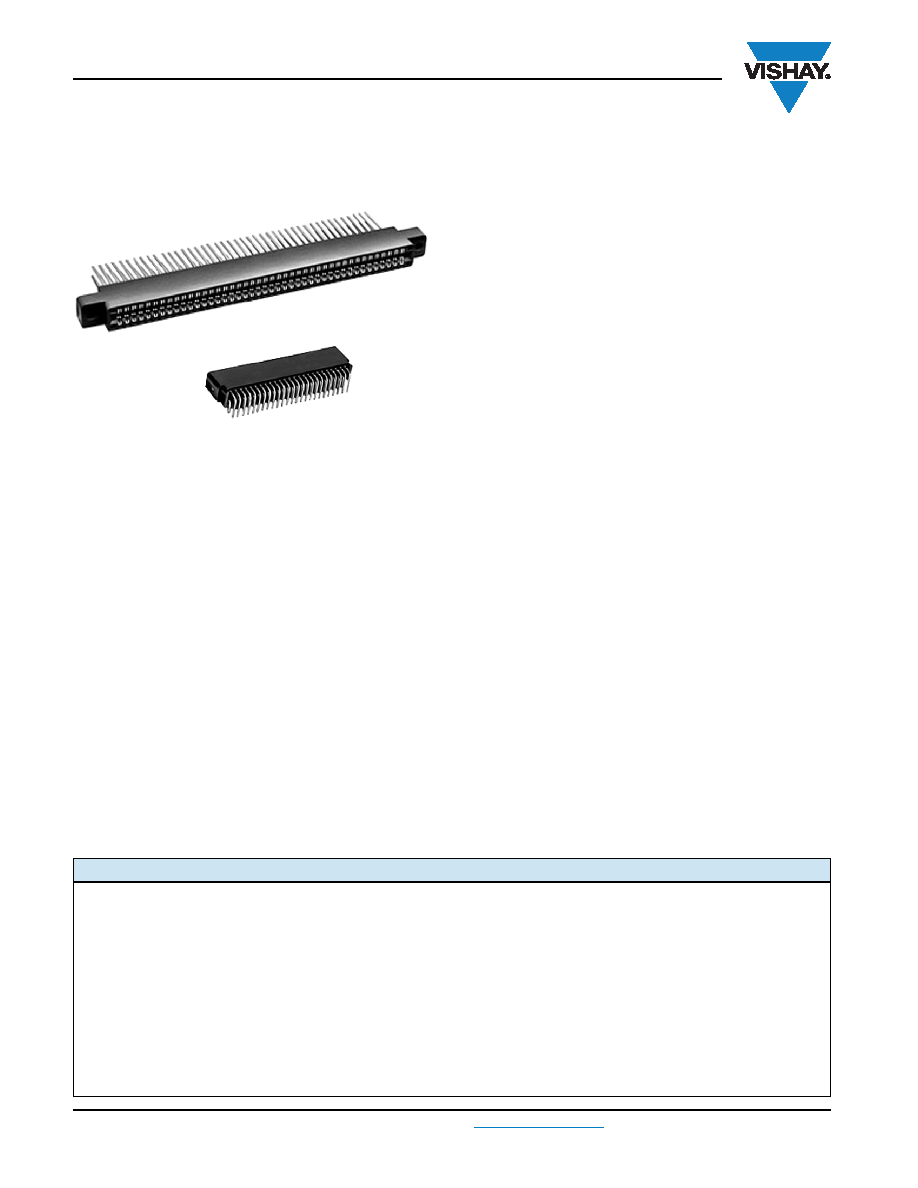

Edgeboard Connectors, Dual Readout, 0.100" (2.54 mm) C-C,

Standard and Right Angle Terminals

www.vishay.com

Document Number: 36001

2

Revision: 16-Feb-09

EB4

Vishay Dale

ELECTRICAL SPECIFICATIONS

Current Rating: 3 A

Test Voltage Between Contacts:

Insulation Resistance: 5000 M

Ω minimum at 500 V

DC

potential

Contact Resistance: 30 mV maximum at rated current (with

gold plating)

Operating Temperature: - 65 °C to + 125 °C

Humidity: 96 h at 90 % relative humidity at + 40 °C, dried at

room temperature for 3 h minimum, insulation resistance

was greater than 5000 M

Ω

Durability: After 500 cycles of insertion and withdrawal of a

0.070" (1.78 mm) thick steel test board, contact resistance

less than 0.030 V at 3 A on gold plated contacts and

individual contact pair separation force when measured with

a 0.054" (1.37 mm) thick steel test blade was greater than

½ oz.

Shock:

Three

50G

shocks

in

each

of

3

mutually

perpendicular planes with no loss of continuity

Vibration: 2 h in each of 3 mutually perpendicular planes,

frequency sweep 10 cps to 55 cps at 0.06 double amplitude

with no loss of continuity

FEATURES

• Grid Patterns: 0.100" C-C x 0.150" (2.54 mm x 3.81 mm)

and 0.100" C-C x 0.200" (2.54 mm x 5.08 mm)

• Standard and right angle terminals

• Greater design latitude:

4 body materials: Diallyl phthalate, phenolic, glass-filled

polyester and glass-filled polyphenylene sulfied

7 contact termination styles - 3 standard, 4 right angle

20 body sizes and 6 mounting styles

• Selective gold plating

• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm

to 1.80 mm)

• Polarization between contact positions in all sizes.

Between contact polarization permits polarizing without

loss of contact position.

• Recognized

under

the

Component

Program

of

Underwriters Laboratories, Inc. listed under file

E65524, project 77CH3889

APPLICATIONS

For use with 0.0625" (1.59 mm) printed circuit boards

requiring an edgeboard type connector on 0.100" (2.54 mm)

centers

MATERIAL SPECIFICATIONS

Body Material:

“1” glass-filled diallyl phthalate per MIL-M-14, Type SDG-F

green, flame retardant (UL 94 V-0)

“2” glass-filled phenolic per MIL-M-14, Type MFH dark

green, flame retardant (UL 94 V-0)

“3”

thermoplastic

polyester,

glass-filled,

black,

flame

retardant (UL 94 V-0)

”5” thermoplastic polyphenylene sulfied, glass filled, brown,

flame retardant (UL 94 V-0)

Contacts: Phosphor bronze (See Ordering Information)

Polarizing Key: Glass reinforced nylon, flame retardant

(UL 94H-B)

Plating: Gold (See Ordering Information)

ORDERING INFORMATION

EB4

3

K

20

SG

X

15

MODEL

BODY

MATERIAL

1 = Diallyl

Phthalate

2 = Phenolic

3 = Glass-filled

Polyester

5 = Glass-filled

Polyphenylene

Sulfied

STANDARD

TERMINAL

VARIATIONS

C, D, K,

1R, 2R,

3R, 4R

CONTACTS

PER SIDE

6, 10, 12,

15, 18, 20,

22, 25, 28,

30, 31, 35,

36, 40, 43,

44, 48, 49,

50, 60,

and 65

CONTACT PLATING

SG = Selective gold plating (0.00003"

(0.000762 mm) minimum thick) on contact

area with gold flash on terminal.

SGF = Selective gold plating (0.000010"

(0.000254 mm) minimum thick) on contact

area with gold flash on terminal.

All gold plating over 0.00005"

(0.00127 mm) minimum nickel underplate.

Contact factory for additional plating

options.

MOUNTING

VARIATIONS

POLARIZING

KEY POSITIONS

Key(s) are located to

right of position(s)

designated. Use odd-

numbered contact for

ordering: -1, -3, -5, etc.

Required only when

polarizing keys are to be

factory installed.

Note: To order polarizing

keys individually, specify

model PK-4.
