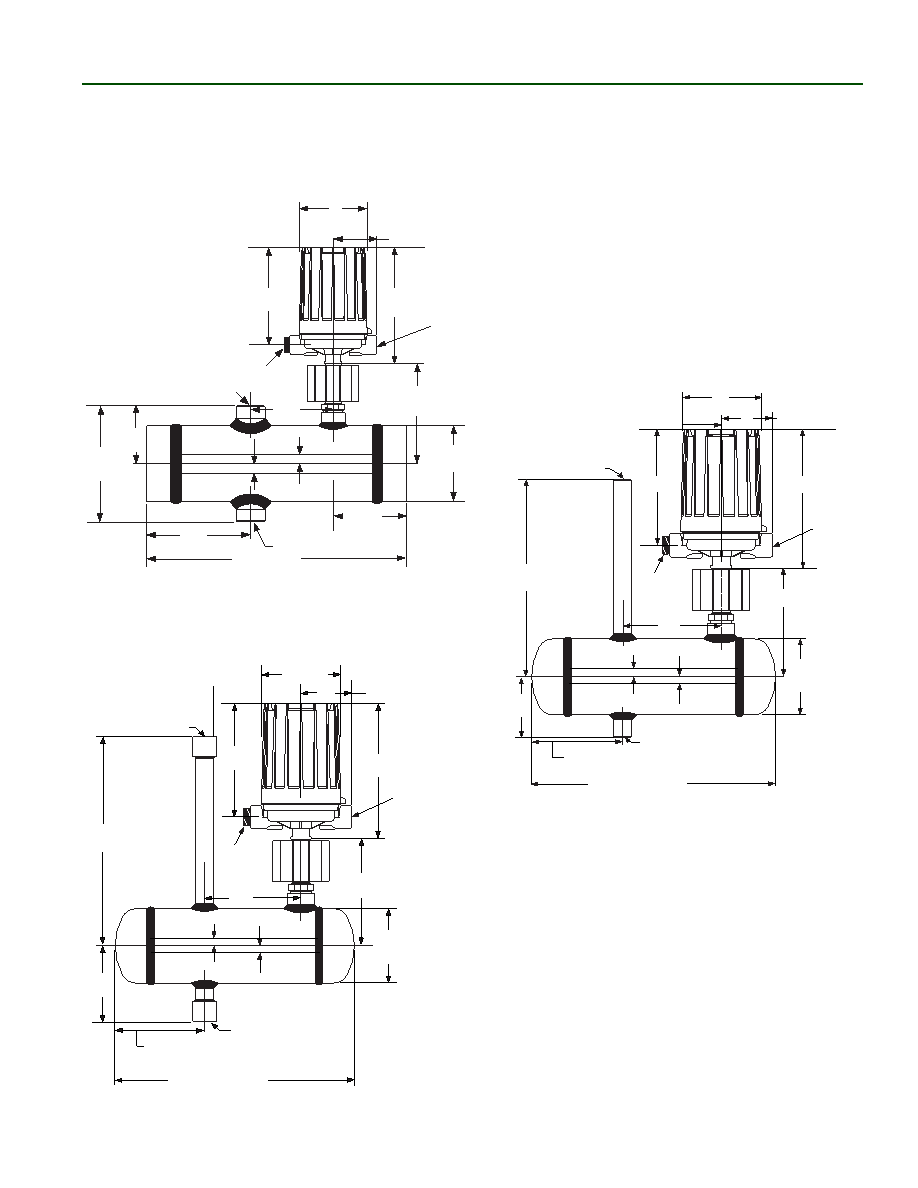

D I M E N S I O N A L

S P E C I F I C A T I O N S

I N C H E S

( M M )

B40-1F30 and B40-2F30

B40-1B60 and B40-2B60

5.93 (150)

5.62

(143)

B40-1B60 6.68 (169)

B40-2B60 7.06 (179)

1" Socket Weld

B40-1B60 17.88 (454)

B40-2B60 18.63 (473)

5.56

(141)

O.D.

1" Socket Weld

15.62

(396)

7.19

(182)

10.12

(257)

3.87

(98)

Rising Level

0.50 (13)

Falling Level

0.50 (13)

8.00

(203)

8.46

(214)

Plug

Electrical

Connection

1" Schedule 80

Beveled Nipple

B40-1F30 17.88 (454)

B40-2F30 18.63 (473)

B40-1F30 6.68 (169)

B40-2F30 7.06 (179)

1" Schedule 80

Beveled Nipple

4.50

(114)

14.50

(368)

5.56

(141)

O.D.

5.93

(150)

Rotation Clearance

3.87

(98)

10.12 (257)

Rising Level

0.50 (13)

Falling Level

0.50 (13)

8.00 (203)

8.46 (214)

7.19

(182)

Plug

Electrical

Connection

NOTES:

1. Allow 8 in (203 mm) overhead clearance for cover removal.

2. Maximum ambient temperature at switch head should not

exceed +140° F (+60° C).

B40-1C50

19.63

(499)

7.07

(180)

1" Weldolet

5.37

(136)

9.75

(248)

6.63

(168)

4.88

(124)

1" Weldolet

10.12

(257)

3.87 (98)

Rotation Clearance

5.93

(150)

Rising Level

0.50 (13)

Falling Level

0.50 (13)

8.46

(214)

8.50

(216)

Plug

Electrical

Connection

7.19

(132)
